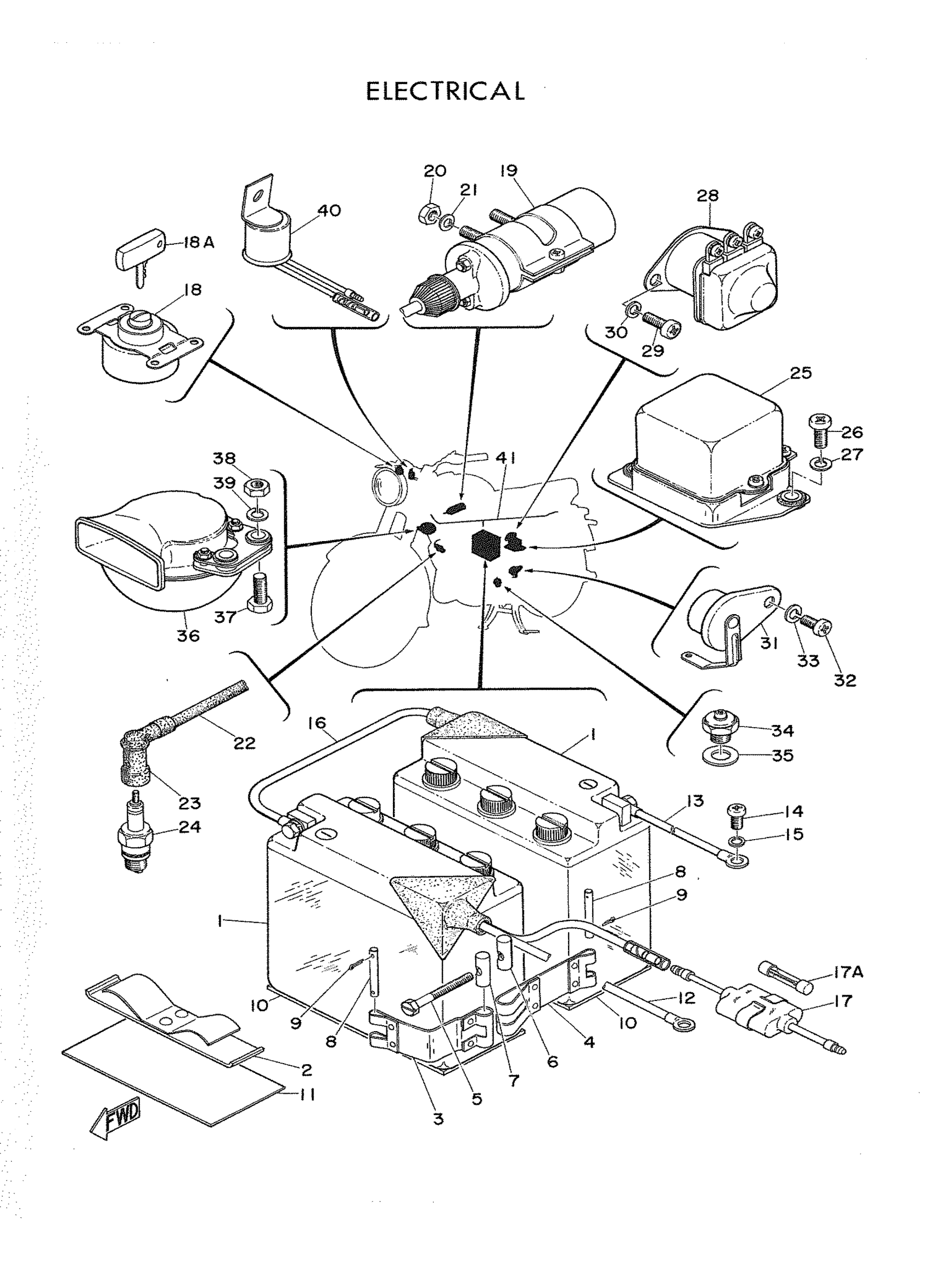

Yamaha YD3 (YDS2_1964) 148 1962 ELECTRICAL Diagram

#

Description
Price

1

6N11A-4

146-82110-29-00

Unavailable

2

PLATE, BATTERY FITTING

146-82136-00-00

Unavailable

3

BAND, BATTERY

146-82131-00-00

Unavailable

4

BAND, BATTERY

146-82137-00-00

Unavailable

5

SCREW,FITTING

146-82133-00-00

Unavailable

6

NUT, WIRE CYLINDER

145-26276-00-00

Unavailable

7

COLLAR, WIRE CYLINDER

145-26277-00-00

Unavailable

8

PIN, CLEVIS

146-82135-00-00

Unavailable

9

PIN, COTTER

146-82138-00-00

Unavailable

10

SEAT, BATTERY

146-82122-00-00

Unavailable

11

SEAT, BATTERY

146-82123-00-00

Unavailable

12

WIRE, PLUS LEAD

146-82115-00-00

Unavailable

13

WIRE, MINUS LEAD

146-82117-00-00

Unavailable

14

SCREW, PAN

98517-06012-00

$3.78

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WIRE, MINUS LEAD

146-82117-00-00

Unavailable

17

FUSE HOLDER ASSY

146-82150-00-00

Unavailable

17

FUSE

1A0-82161-00-00

Unavailable

18

MAIN SWITCH ASY

148-82508-19-00

Unavailable

18

. KEY

148-82511-00-00

Unavailable

19

IGNITION COIL ASSY

148-82310-00-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

CORD, HIGHT TENSION 1

137-82341-01-00

Unavailable

23

PLUG CAP ASSY

166-82370-20-00

Unavailable

24

PLUG, SPARK

94701-00040-00

Unavailable

25

VOLTAGE REG ASY

156-81910-20-00

Unavailable

26

SCREW, PAN

98507-06014-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

STARTER, SWITCH ASSY

146-81940-10-00

Unavailable

29

SCREW,PAN HEAD

92503-05012-00

Unavailable

30

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

31

STOP SWITCH

150-82530-00-00

Unavailable

32

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

NEUTRAL SWITCH ASY

146-82540-01-00

Unavailable

35

WASHER, PLATE

90201-12790-00

Unavailable

36

HORN

152-83371-00-00

Unavailable

37

BOLT, HEXAGON

97013-08020-00

Unavailable

38

NUT(6L2)

95333-08600-00

Unavailable

39

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

40

FLASHER RELAY ASY

136-83350-20-00

Unavailable

41

WIRE HARNESS ASSY

148-82590-10-00

Unavailable
