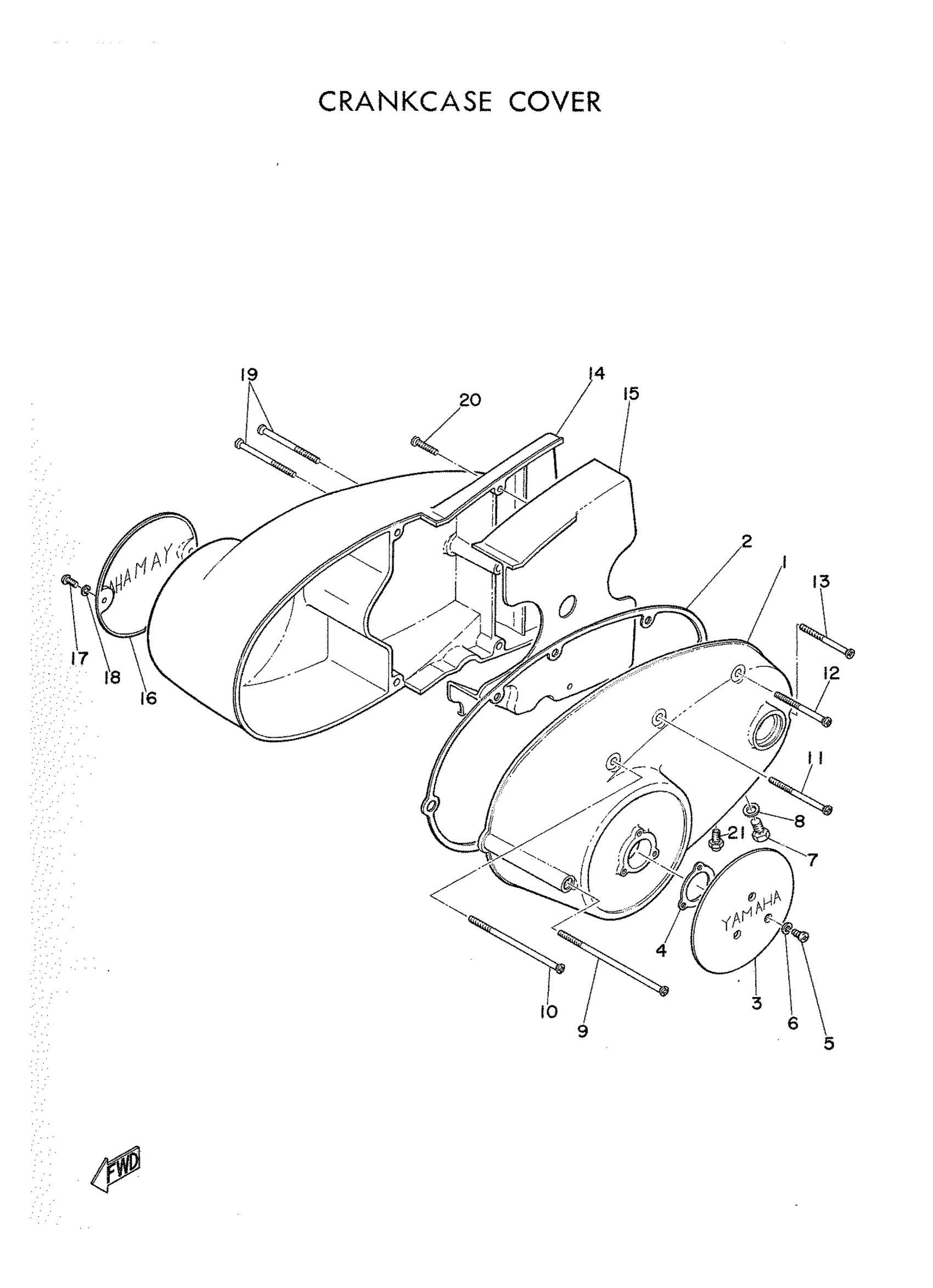

Yamaha YD3 (YDS2_1964) 148 1962 CRANKCASE COVER Diagram

#

Description

Price

1

COVER, CRANKCASE (LH)

148-15411-02-00

Unavailable

2

GASKET, CRANKCASE COVER

148-15451-00-00

Unavailable

3

COVER, CRANKCASE (LH)

146-15415-00-00

Unavailable

4

GASKET

146-15455-00-00

Unavailable

5

SCREW, PAN HEAD

92501-04010-00

Unavailable

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

PLUG,OIL LEVEL

146-15362-00-00

Unavailable

8

GASKET, OIL LEVEL

148-15382-00-00

Unavailable

9

SCREW

92601-06115-00

Unavailable

10

SCREW, PAN

98507-06100-00

$8.49

11

SCREW PAN HEAD

92601-06060-00

Unavailable

12

SCREW

92601-06050-00

Unavailable

13

SCREW

92601-06055-00

Unavailable

14

COVER, CRANKCASE (RH)

146-15421-00-00

Unavailable

15

COVER, CHAIN CASE

148-15418-00-00

Unavailable

16

COVER, CRANKCASE COVER (RH)

148-15425-00-00

Unavailable

17

SCREW, PAN HEAD

92501-04010-00

Unavailable

18

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

19

SCREW PAN HEAD

92601-06060-00

Unavailable

20

SCREW, FLAT

98707-06020-00

Unavailable

21

NIPPLE, GREASE

93700-06M03-00

Unavailable
