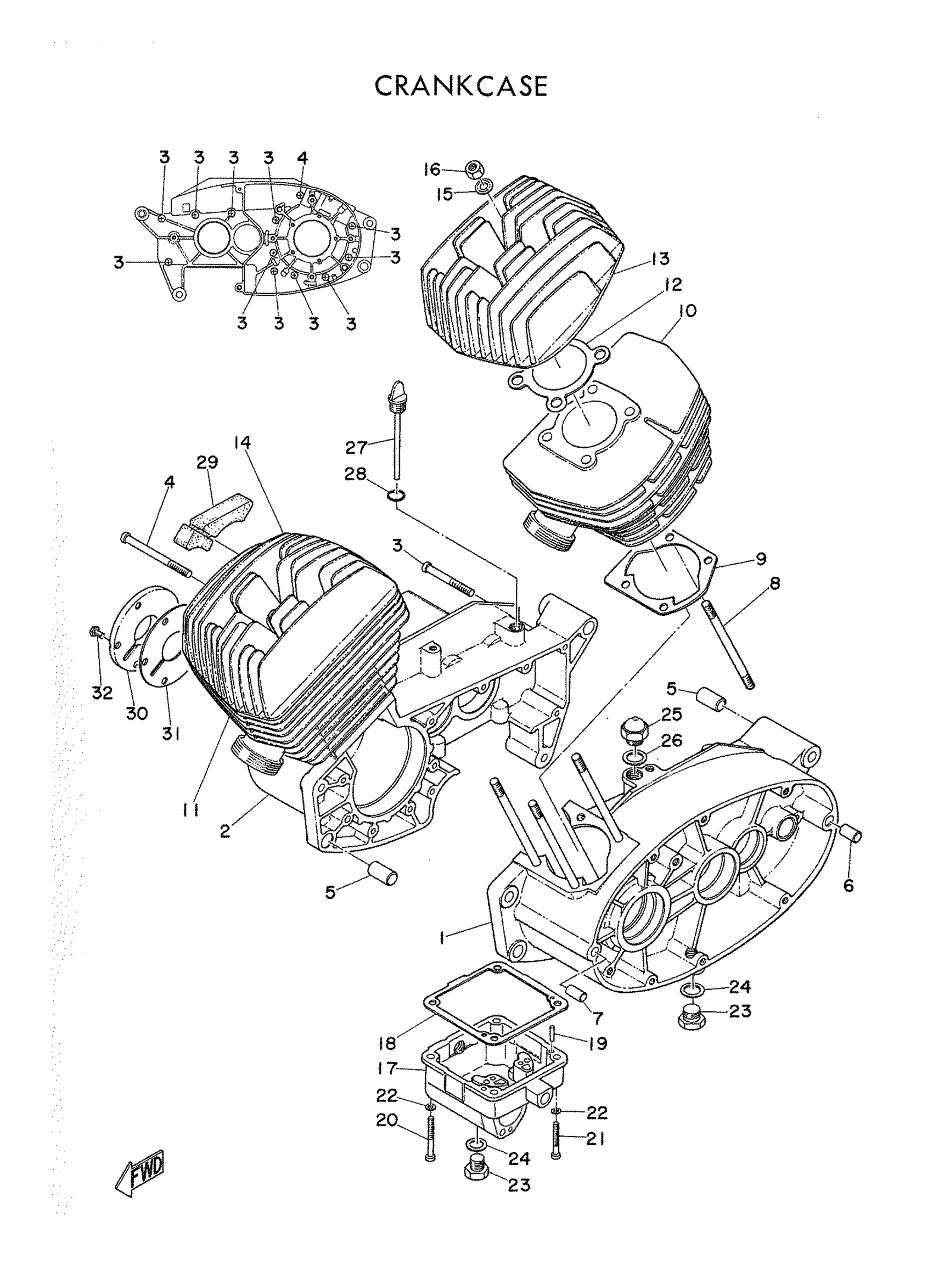

Yamaha YD3 (YDS2_1964) 148 1962 CRANKCASE AND CYLINDER Diagram

#

Description
Price

1

CRANKCASE (LH)

148-15111-01-00

Unavailable

2

CRANKCASE (RH)

148-15121-01-00

Unavailable

3

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

4

SCREW, PAN HEAD(3DN)

98504-06080-00

Unavailable

5

PIN, DOWEL

91810-08025-00

Unavailable

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

PIN, DOWEL

91810-01018-00

Unavailable

8

BOLT,STUD

90116-08076-00

Unavailable

9

GASKET CYLINDER

148-11351-00-00

Unavailable

10

CYLINDER (LH)

148-11311-00-00

Unavailable

11

CYLINDER (RH)

148-11321-00-00

Unavailable

12

GASKET CYLINDER HEAD

150-11181-00-00

Unavailable

13

HEAD, CYLINDER (LH)

148-11111-00-00

Unavailable

14

HEAD, CYLIDER (RH)

148-11121-00-00

Unavailable

15

WASHER, PLAIN

92903-08200-00

Unavailable

16

NUT, HEXAGON

90170-08031-00

Unavailable

17

COVER SHIFTER

148-15419-00-00

Unavailable

18

GASKET, SHIFTER COVER

148-15459-00-00

Unavailable

19

PIN, DOWEL

93604-16015-00

Unavailable

20

SCREW PAN HEAD

98580-06550-00

Unavailable

21

SCREW, PAN

98507-06035-00

Unavailable

22

WASHER, PLATE (371)

90201-06431-00

Unavailable

23

PLUG,STRAIGHT SCRW

90340-14033-00

Unavailable

24

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

25

BREATHER

152-15371-00-00

Unavailable

26

GASKET, BREATHER

159-15374-00-00

Unavailable

27

PLUG,OIL LEVEL

146-15362-00-00

Unavailable

28

GASKET (3JD1)

90430-12207-00

Unavailable

29

GROMMET

146-15366-00-00

Unavailable

30

HOUSING, OIL SEAL

146-15359-00-00

Unavailable

31

GASKET, OIL SEAL HOUSING

150-15369-00-00

Unavailable

32

SCREW

92503-05008-00

Unavailable
