1968 Yamaha YCS1C (YCS1C) Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1968 Yamaha YCS1C (YCS1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

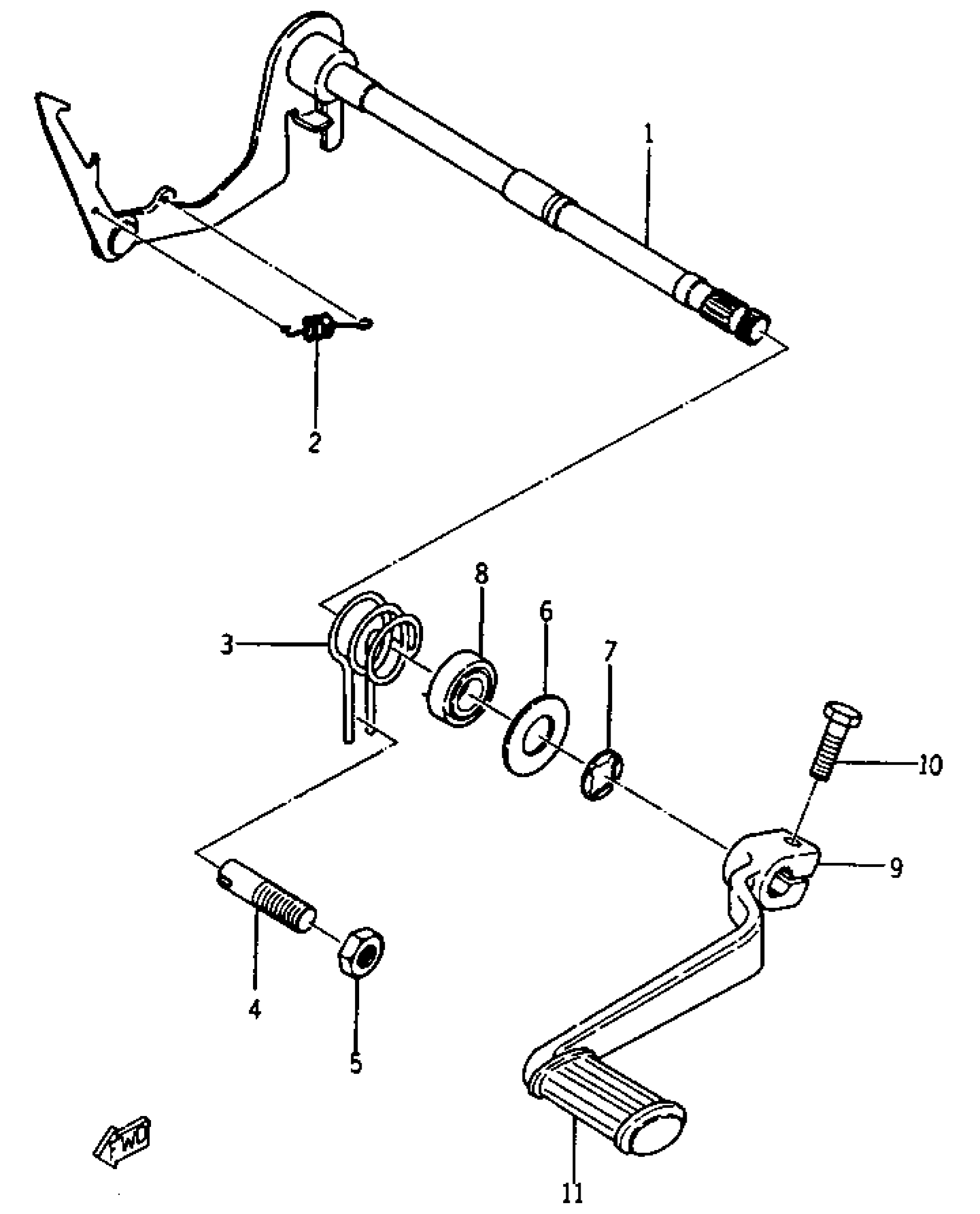

1968 Yamaha YCS1C (YCS1C) Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY.1

174-18101-02-00

1
Out of stock

2

—

$6.68

In stock

3

SPRING TORSION 132181240000

90508-32207-00

1
Out of stock

4

SCREW, ADJUSTING (367)

90149-08094-00

1

$4.91

In stock

5

NUT(6L2)

95333-08600-00

1

$3.20

In stock

6

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

7

CIRCLIP

99006-10600-00

1

$6.91

In stock

8

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

9

PEDAL, SHIFT

173-18111-01-93

1
Out of stock

10

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

11

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock
