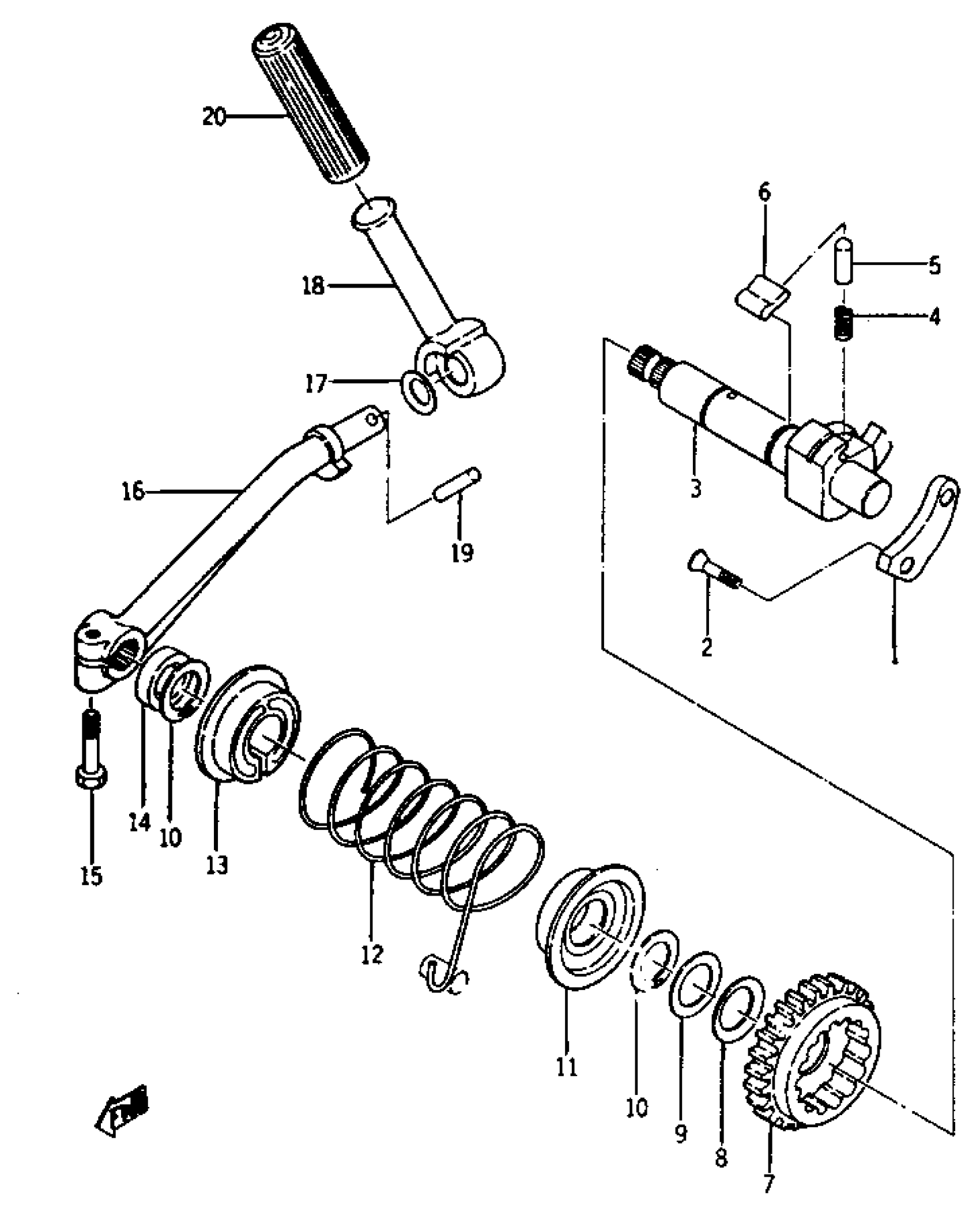

Yamaha YCS1C (YCS1C) 1968 KICK Diagram

#

Description
Price

1

STOPPER, PAWL

(131-15638-00-00)

Unavailable

2

SCREW, FLAT

98707-06014-00

$8.49

3

AXLE, KICK

(132-15661-00-00)

Unavailable

4

SPRING, COMPRESSION

(90501-05020-00)

Unavailable

5

PIN, STRAIGHT

(90250-05006-00)

Unavailable

6

PAWL, KICK

(131-15635-00-00)

Unavailable

7

GEAR, KICK

(132-15641-00-00)

Unavailable

8

WASHER WAVE 137156430000

90206-15021-00

Unavailable

9

SHIM

132-15644-00-00

Unavailable

10

CIRCLIP(1AR)

99009-15400-00

$8.49

11

GUIDE, KICK SPRING

132-15664-01-00

$10.99

12

SPRING TORSION 304156650000

90508-26136-00

Unavailable

13

COVER, KICK SPRING

132-15676-01-00

Unavailable

14

OIL SEAL (15X26X6-102)

93109-15001-00

$8.49

15

BOLT, HEXAGON

97017-06020-00

$4.06

16

KICK CRANK ASSEMBLY

(178-15610-01-93)

Unavailable

16

KICK CRANK ASSEMBLY

3AY-15620-00-00

Unavailable

17

WASHER,WAVE

90206-10014-00

Unavailable

18

LEVER, KICK

(214-15612-09-00)

Unavailable

19

PIN, DOWEL

(93604-18017-00)

Unavailable

20

COVER, KICK LEVER

156-15618-01-00

Unavailable
