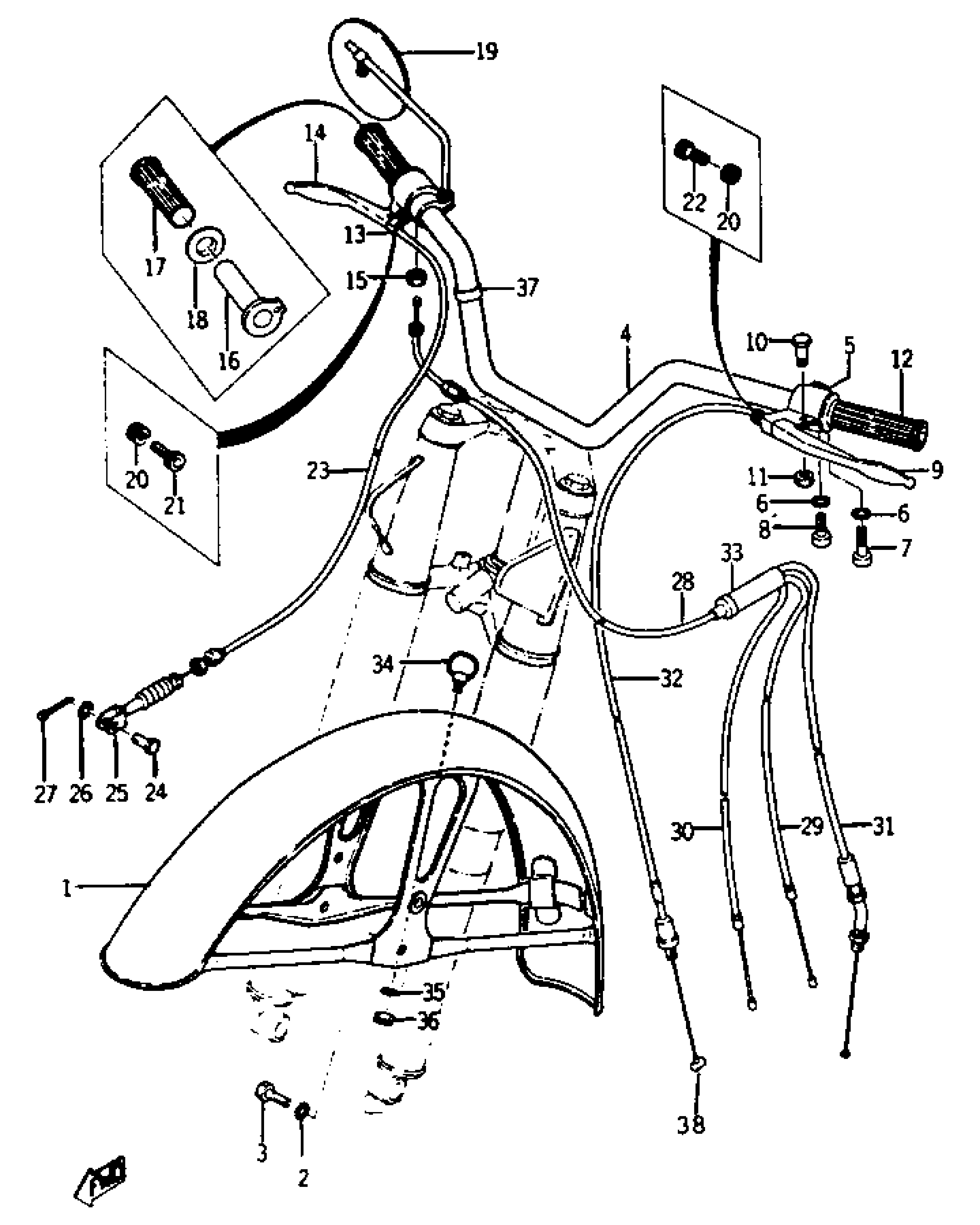

Yamaha YCS1C (YCS1C) 1968 HANDLE AND FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(174-21510-00-93)

Unavailable

1

FENDER, FRONT

(193-21510-00-93)

Unavailable

2

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

3

BOLT(62E)

97013-08012-00

Unavailable

4

HANDLEBAR

(157-26111-00-00)

Unavailable

4

HANDLEBAR

(173-26111-10-00)

Unavailable

4

HANDLEBAR

(174-26111-00-93)

Unavailable

5

LEVER HOLDER ASSEMBLY 1

(168-82910-09-00)

Unavailable

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

7

SCREW, PAN HEAD

98580-05020-00

Unavailable

8

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

8

SCREW, PAN HEAD

98580-05020-00

Unavailable

9

LEVER L

150-83912-00-38

Unavailable

10

BOLT

(90109-06333-00)

Unavailable

11

NUT(650)

95380-06700-00

Unavailable

12

GRIP (LH)

156-26241-00-00

Unavailable

13

UNAVAILABLE IN PRICE BOOK

169-82820-00-94

Unavailable

13

LEVER HOLDER ASSEMBLY 2

(169-82820-10-94)

Unavailable

14

LEVER R

(218-83922-30-38)

Unavailable

15

NUT, HEXAGON

90170-10038-00

Unavailable

16

TUBE, GUIDE

1V1-26243-00-00

Unavailable

17

GRIP RH

(156-26242-00-00)

Unavailable

18

RING, LEAF

150-26249-00-00

Unavailable

19

MIRROR ASY

253-26290-00-00

Unavailable

20

NUT

90179-08030-00

Unavailable

21

BOLT

90123-08002-00

Unavailable

22

BOLT

90123-08002-00

Unavailable

23

CABLE, BRAKE

(174-26341-10-00)

Unavailable

24

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

25

JOINT, WIRE

156-26347-00-00

Unavailable

26

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

27

PIN, COTTER

91490-20025-00

Unavailable

28

UNAVAILABLE IN PRICE BOOK

174-26311-00-00

Unavailable

28

CABLE, THROTTLE 1

174-26311-10-00

Unavailable

29

CABLE, THROTTLE 2

(174-26312-00-00)

Unavailable

29

CABLE, THROTTLE 2

(193-26312-00-00)

Unavailable

30

CABLE, THROTTLE 3

(173-26313-00-00)

Unavailable

30

CABLE, THROTTLE 3

(193-26313-00-00)

Unavailable

31

CABLE, PUMP

(174-26321-00-00)

Unavailable

31

CABLE, PUMP

(178-26321-00-00)

Unavailable

32

CABLE, CLUTCH

(174-26335-10-00)

Unavailable

32

CABLE, CLUTCH

(174-26335-11-00)

Unavailable

32

CABLE, CLUTCH

396-26335-10-00

Unavailable

33

CYLINDER, WIRE

156-26261-01-00

Unavailable

34

HOLDER, CABLE

(174-21518-00-00)

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable

36

NUT, HEXAGON

95380-06600-00

Unavailable

37

BAND, SWITCH CORD

437-83936-01-00

Unavailable

38

END, WIRE

164-26363-00-00

Unavailable
