CRANK AND PISTON

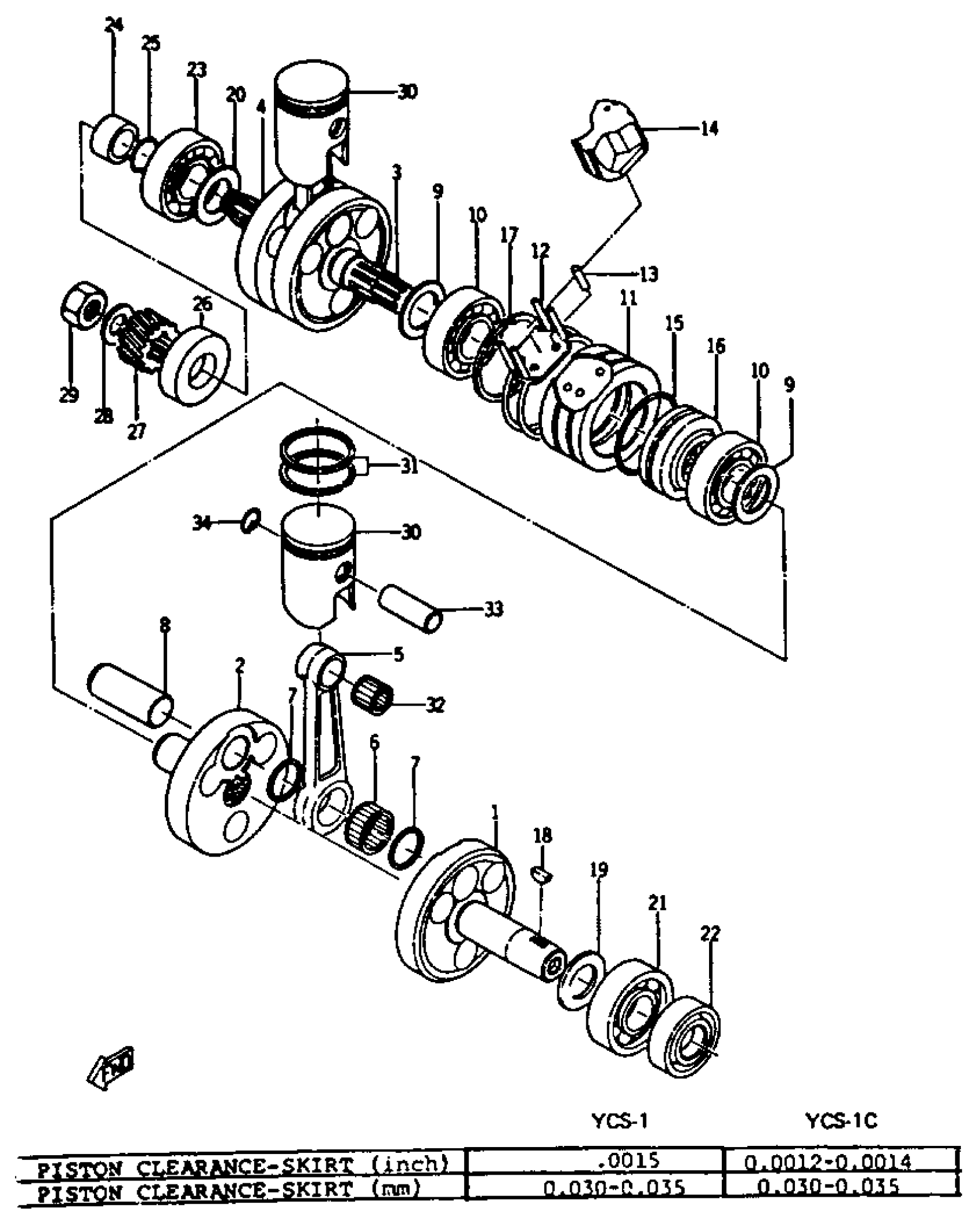

Yamaha YCS1C (YCS1C) 1968 CRANK AND PISTON Diagram
#
1
PISTON RINGSET STD
2VT-11601-01-00
Unavailable
1
PISTON RINGSET 1ST
2VT-11601-11-00
Unavailable
1
PISTON RINGSET 2ND
2VT-11601-21-00
Unavailable
1
PISTON RINGSET 3RD
(164-11601-32-00)
Unavailable
1
PISTON RINGSET 4TH
(164-11601-42-00)
Unavailable
1
CRANKSHAFT ASSEMBLY
(174-11400-02-00)
Unavailable
1
CRANKSHAFT ASSEMBLY
(174-11400-02-00)
Unavailable
1
CRANK 1
(174-11412-02-00)
Unavailable
1
CRANK 1
(174-11412-02-00)
Unavailable
1
UNAVAILABLE IN PRICE BOOK
193-11635-00-00
Unavailable
1
UNAVAILABLE IN PRICE BOOK
193-11636-00-00
Unavailable
1
PISTON STD
237-11631-00-96
Unavailable
2
CRANK 2
(174-11422-02-00)
Unavailable
2
UNAVAILABLE IN PRICE BOOK
193-11631-01-96
Unavailable
2
PISTON 1 O/S 0.25
237-11635-00-00
Unavailable
2
PISTON 2 O/S 0.50
237-11636-00-00
Unavailable
2
PISTON 3 O/S 0.75
(237-11637-00-00)
Unavailable
2
PISTON 4 O/S 1.00
237-11638-00-00
Unavailable
3
CRANK 2 (L)
(174-11432-01-00)
Unavailable
3
PISTON STD
237-11631-00-96
Unavailable
3
PISTON 1 O/S 0.25
237-11635-00-00
Unavailable
3
PISTON 2 O/S 0.50
237-11636-00-00
Unavailable
3
PISTON 3 O/S 0.75
(237-11637-00-00)
Unavailable
3
PISTON 4 O/S 1.00
237-11638-00-00
Unavailable
4
CRANK 4
(174-11442-01-00)
Unavailable
5
ROD, CONNECTING
50W-11651-00-00
Unavailable
6
BRG,CYL-CAL ROLLER 13G TM
93310-42012-00
Unavailable
7
WASHER, CRANK PIN (1H9)
90209-20159-00
Unavailable
8
PIN, CRANK
2Y1-11681-00-00
Unavailable
9
. SHIM, CRANK 1
132-11561-00-03
Unavailable
10
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
11
COVER, CRANK
(174-11511-01-00)
Unavailable
11
COVER, CRANK
(174-11511-01-00)
Unavailable
12
SEAL, CRANK COVER
(174-11512-00-00)
Unavailable
12
SEAL, CRANK COVER
(174-11512-02-00)
Unavailable
13
PIN,DOWEL (137)
93604-14012-00
Unavailable
13
PIN, DOWEL(4SS)
93604-18251-00
Unavailable
14
METAL, FILLER
(174-11541-01-00)
Unavailable
14
METAL FILLER
(99999-01128-00)
Unavailable
15
O-RING
93210-46044-00
Unavailable
16
SEAL, LABYRINTH 1
(174-11515-00-00)
Unavailable
17
. CIRCLIP
93450-52010-00
Unavailable
18
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
19
. SHIM, CRANK 1
132-11561-00-03
Unavailable
19
SHIM, CRANK 1
132-11561-00-05
Unavailable
19
SHIM, CRANK 1
136-11561-00-03
Unavailable
19
SHIM, CRANK 1
136-11561-00-05
Unavailable
20
SHIM, CRANK 2
(156-11562-00-05)
Unavailable
21
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
21
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
22
OIL SEAL(4BA)
93102-20447-00
Unavailable
23
BEARING (8R9)
93306-30536-00
Unavailable
24
COLLAR
(90387-20499-00)
Unavailable
25
O-RING(3KX)
93210-180A6-00
Unavailable
26
OIL SEAL, SW-TYPE
93103-32031-00
Unavailable
27
GEAR, PRI DRIVE
(174-16111-00-00)
Unavailable
28
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
29
NUT, HEXAGON 1371637700
90170-12060-00
Unavailable
30
UNAVAILABLE IN PRICE BOOK
174-11631-00-96
Unavailable
30
UNAVAILABLE IN PRICE BOOK
174-11635-00-00
Unavailable
30
UNAVAILABLE IN PRICE BOOK
174-11636-00-00
Unavailable
31
PISTON RINGSET STD
2VT-11601-01-00
Unavailable
31
PISTON RINGSET 1ST
(164-11601-10-00)
Unavailable
31
PISTON RINGSET 2ND
(164-11601-20-00)
Unavailable
32
BRG,CYL-CAL ROLLER 7G TM
93310-21403-00
Unavailable
33
PIN, PISTON
131-11633-00-00
Unavailable
34
. SHIM, CRANK 1
132-11561-00-03
Unavailable
34
SHIM, CRANK 1
132-11561-00-05
Unavailable
34
SEAL, CRANK COVER
(174-11512-02-00)
Unavailable
34
METAL, FILLER
(174-11541-01-00)
Unavailable
34
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
34
CIRCLIP 131116340000
93450-15023-00
Unavailable
34
PIN, DOWEL(4SS)
93604-18251-00
Unavailable
