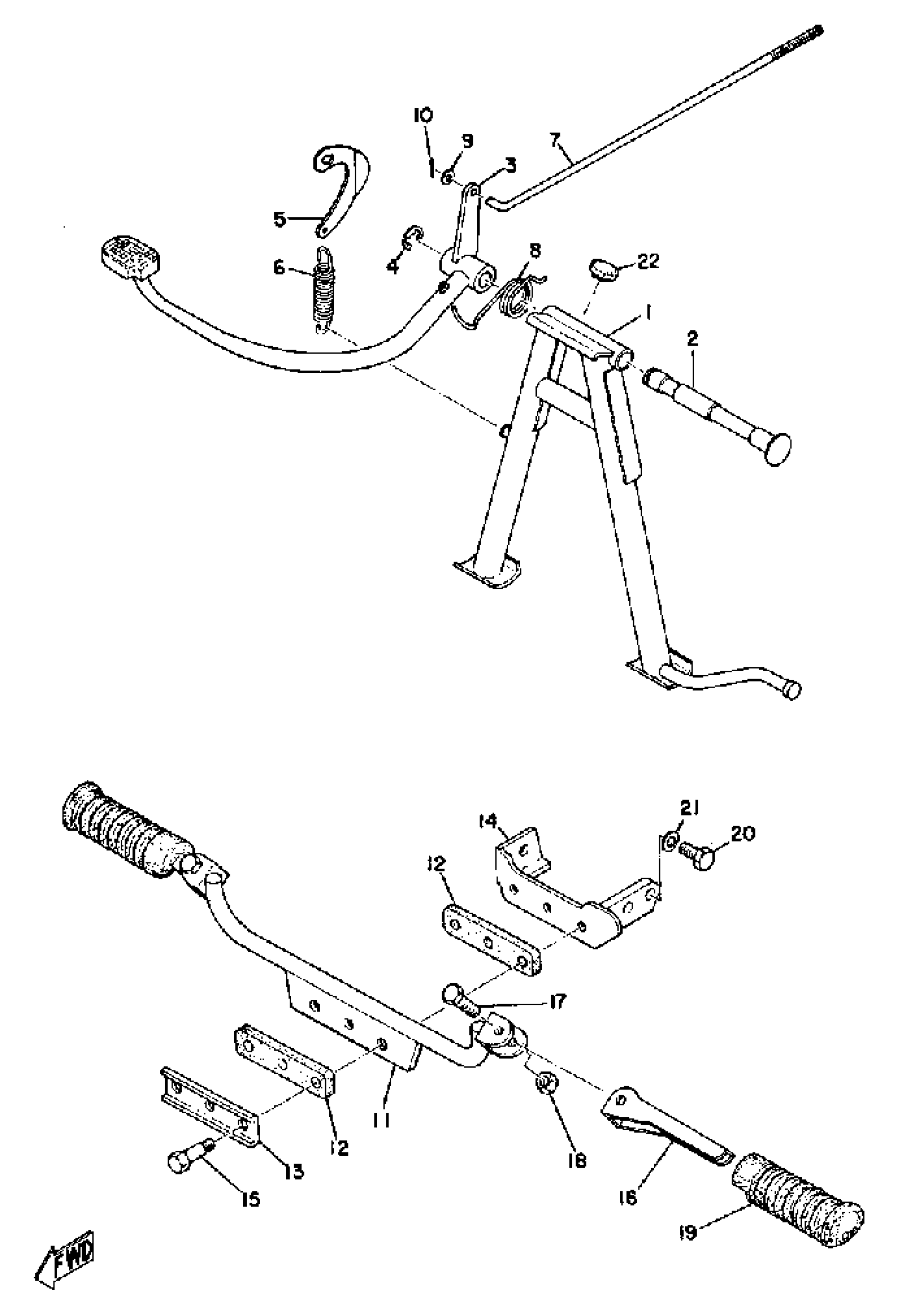

Yamaha YAS1C (YAS1C) 1968 STAND, FOOT REST & REAR BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

(183-27111-10-00)

Unavailable

1

. NUT

95380-08700-00

Unavailable

2

SHAFT, MAIN STAND

(122-27112-00-00)

Unavailable

2

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

3

PEDAL, BRAKE

(183-27211-10-93)

Unavailable

4

CIRCLIP (122)

93430-12008-00

$8.49

5

LINK, MAIN STAND

(183-27115-00-00)

Unavailable

6

SPRING, TENSION

(90506-29054-00)

Unavailable

7

ROD, BRAKE

(183-27231-00-00)

Unavailable

8

SPRING 1832721600

90508-32056-00

$7.49

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

PIN, COTTER

91490-20025-00

$1.99

11

FOOTREST 1

(218-27411-10-00)

Unavailable

12

DAMPER, FOOTREST

(164-27414-00-00)

Unavailable

13

WASHER, FOOTREST

(164-27417-00-00)

Unavailable

14

BRACKET, FOOTREST 1

(218-27412-00-00)

Unavailable

15

BOLT 132274160000

90109-08193-00

Unavailable

16

FOOTREST 1

(157-27411-00-00)

Unavailable

17

BOLT (157-27416-00)

90109-08376-00

Unavailable

19

COVER, FOOT REST

156-27413-00-00

Unavailable

20

BOLT, HEXAGON

97013-08020-00

Unavailable

22

STOPPER, MAIN STAND

128-27114-00-00

Unavailable
