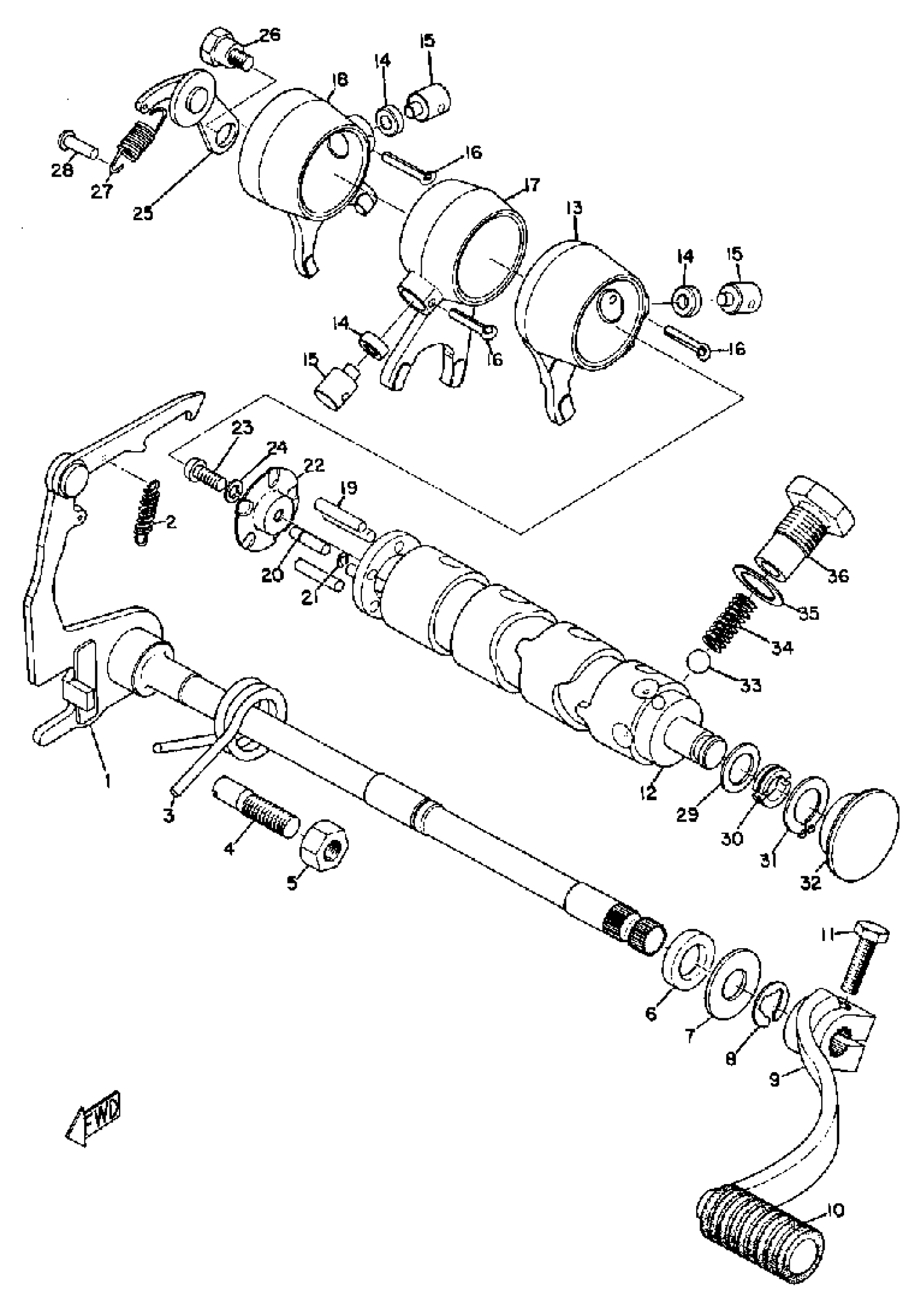

Yamaha YAS1C (YAS1C) 1968 SHIFTER Diagram
#
1
SHIFT SHAFT ASSEMBLY.1
(183-18101-01-00)
Unavailable
1
SHIFTER ASSEMBLY
(183-18500-02-00)
Unavailable
2
SPRING TENSION 132181230000
90506-09009-00
Unavailable
9
PEDAL, SHIFT
173-18111-01-93
Unavailable
12
CAM, SHIFT
(183-18541-02-00)
Unavailable
13
FORK, SHIFT 1
(183-18511-00-00)
Unavailable
14
ROLLER, CAM FOLWR
(164-18551-00-00)
Unavailable
15
PIN, STRAIGHT
(90250-10020-00)
Unavailable
16
PIN, COTTER
91490-25020-00
Unavailable
17
FORK, SHIFT 2
(183-18512-00-00)
Unavailable
18
FORK, SHIFT 3
(183-18513-00-00)
Unavailable
19
PIN,DOWEL (620)
93604-22050-00
Unavailable
20
. PIN, SPEC''L SHAPE (174-18544-00)
90249-04039-00
Unavailable
21
. CIRCLIP, E-TYPE
93430-03014-00
Unavailable
22
PLATE, SIDE
164-18561-00-00
Unavailable
23
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
24
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
25
STOPPER LEVER ASSY
132-18140-01-00
Unavailable
26
BOLT
90109-06239-00
Unavailable
27
SPRING, TENSION (260)
90506-09112-00
Unavailable
28
HOOK, SPRING
132-16346-00-00
Unavailable
29
WASHER PLATE 164185720000
90201-12166-00
Unavailable
30
HOLDER, SHIFT CAM
307-18571-00-00
Unavailable
31
CIRCLIP
93440-15012-00
Unavailable
32
PLUG, BLIND
(307-18533-00-00)
Unavailable
33
BALL
93505-16006-00
Unavailable
34
SPRING, COMPRESION
90501-12750-00
Unavailable
35
WASHER, PROTECTOR
4F4-14766-00-00
Unavailable
36
BOLT
90109-14385-00
Unavailable
