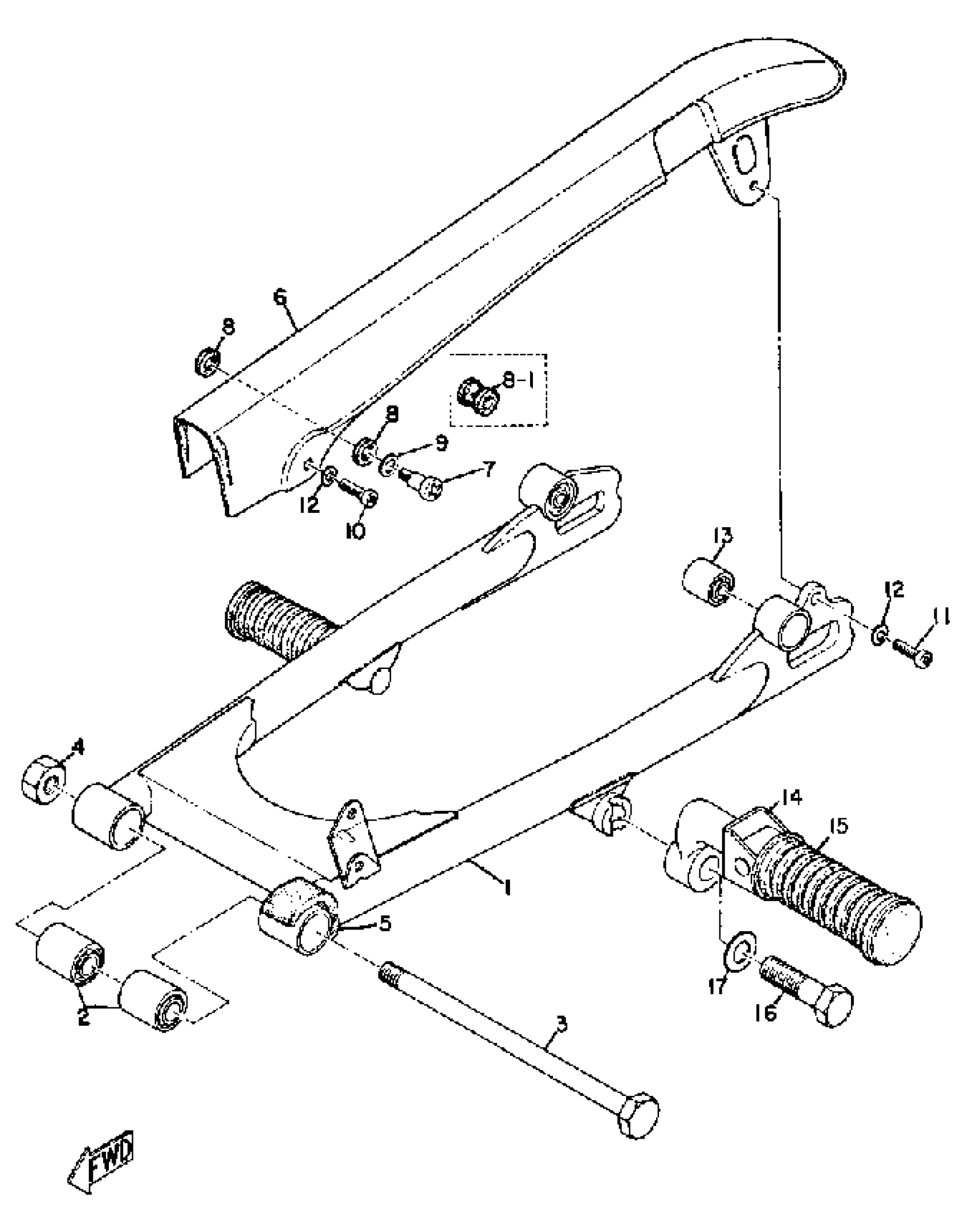

Yamaha YAS1C (YAS1C) 1968 REAR ARM - CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(183-22110-01-33)

Unavailable

1

DAMPER, CHAIN CASE

(183-22332-01-00)

Unavailable

2

BUSH 1

(183-22123-00-00)

Unavailable

3

SHAFT, PIVOT

(183-22141-01-00)

Unavailable

4

NUT(3DM)

95304-12600-00

$8.49

5

SEAL, GUARD

183-22151-00-00

$8.99

6

CASE, CHAIN

(183-22311-01-93)

Unavailable

7

SCREW, SPEC''L SHAPE

(90149-06012-00)

Unavailable

8

DAMPER, CHAIN CASE

(183-22332-00-00)

Unavailable

9

WASHER, CHAIN CASE

(183-22316-00-00)

Unavailable

9

WASHER, PLATE

(90201-07079-00)

Unavailable

10

SCREW PAN HEAD

98580-06010-00

$8.49

11

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

14

RR FOOTREST ASSEMBLY 1

(178-27430-00-00)

Unavailable

15

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

16

BOLT,HEXAGON

97321-12040-00

Unavailable

17

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable
