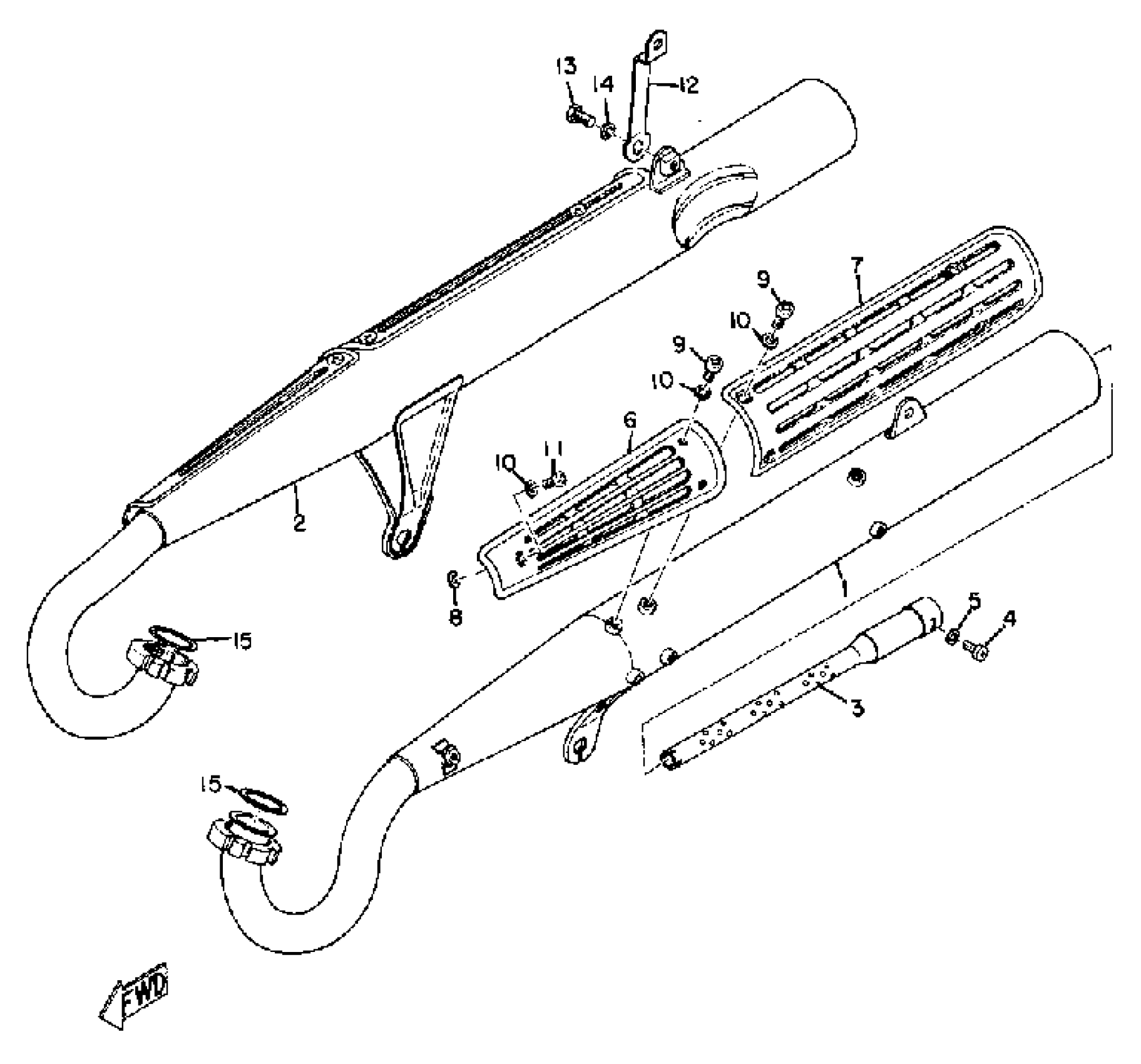

Yamaha YAS1C (YAS1C) 1968 MUFFLER Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(218-14610-30-00)

Unavailable

2

EXHAUST PIPE ASSEMBLY R

(218-14620-30-00)

Unavailable

3

SILENCER, EXHAUST

(218-14753-30-00)

Unavailable

4

SCREW, BIND(1JK)

98980-06010-00

$9.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

PROTECTOR, MUFF 1

(183-14718-30-00)

Unavailable

7

PROTECTER, MUFF 2

(183-14728-30-00)

Unavailable

8

WASHER, PLATE(3MT)

90202-05188-00

$8.49

9

SCREW, BIND(2TV)

98980-06008-00

$3.19

10

WASHER, PLATE(3MB)

90202-05187-00

$1.38

11

SCREW, BIND(1JK)

98980-06010-00

$9.49

12

STAY, MUFFLER 1

(183-14771-30-00)

Unavailable

13

BOLT, HEXAGON

97013-08016-00

$1.01

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

GASKET, EXHAUST PIPE

3MT-14613-00-00

$10.99
