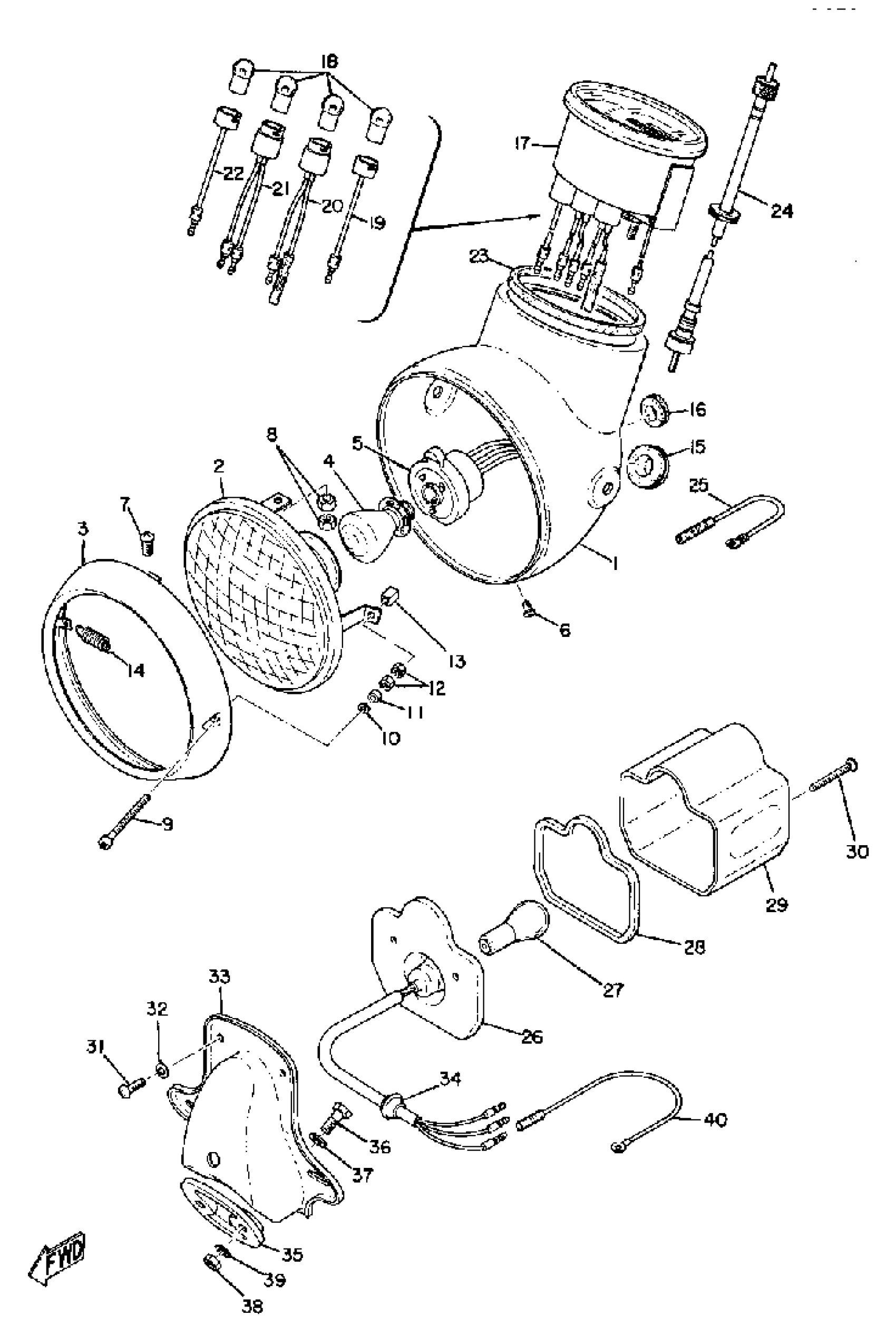

Yamaha YAS1C (YAS1C) 1968 HEAD LAMP, SPEEDOMETER & TAIL LAMP Diagram

#

Description

Price

1

BODY ASSEMBLY

(183-84330-00-29)

Unavailable

1

BODY ASSEMBLY

(183-84330-00-63)

Unavailable

1

TAILLIGHT UNIT ASSEMBLY

(202-84710-60-00)

Unavailable

2

LENS ASSEMBLY

(183-84320-60-00)

Unavailable

3

RIM, HEADLIGHT

(183-84315-61-00)

Unavailable

4

. BULB, HL12V35/35W

183-84314-60-00

Unavailable

5

SOCKET

(183-84312-60-00)

Unavailable

6

SCREW, RIM FITTING

(150-84125-00-00)

Unavailable

7

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

8

NUT, HEXAGON SMALL

95317-05700-00

$8.49

9

SCREW, RIM ADJUSTING

(132-84331-60-00)

Unavailable

10

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

11

. SPACER

132-84328-60-00

Unavailable

12

NUT(6L4)

95380-04700-00

Unavailable

13

NUT, ADJUSTING

(132-84334-61-00)

Unavailable

14

NUT, ADJUSTING

(132-84334-61-00)

Unavailable

15

GROMMET

(168-84354-00-00)

Unavailable

16

GROMMET

(183-84353-00-00)

Unavailable

17

SPEEDOMETER ASSEMBLY

(183-83510-70-00)

Unavailable

18

. UNAVAILABLE IN PRICE BOOK (123-83516-20)

123-83156-21-00

Unavailable

19

. SOCKET, METER

(164-83536-20-00)

Unavailable

20

SOCKET, NEUTRAL

(183-83537-20-00)

Unavailable

21

SOCKET, FLASHER

(183-83538-20-00)

Unavailable

22

SOCKET, HIGH-BEAM

(183-83529-70-00)

Unavailable

23

DAMPER

(183-83513-00-00)

Unavailable

24

SPEEDOMETER CABLE

167-83550-01-00

Unavailable

25

WIRE, EARTH

(173-84313-00-00)

Unavailable

26

. BASE, TAILLIGHT

(202-84711-60-00)

Unavailable

27

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

28

SEAT, BASE

(168-84712-60-00)

Unavailable

29

. LENS, TAILLIGHT

(168-84721-60-00)

Unavailable

30

. SCREW, LENS FITTING

168-84724-00-00

Unavailable

31

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable

33

BRACKET, LICENSE

(164-84751-60-35)

Unavailable

35

DAMPER

(174-84753-00-00)

Unavailable

36

BOLT 168217380000

90109-06017-00

Unavailable

37

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

38

NUT, HEXAGON

95380-06600-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

WIRE, EARTH LEAD

(183-84756-00-00)

Unavailable

324

GROMMET 152845180000

90480-12013-00

Unavailable
