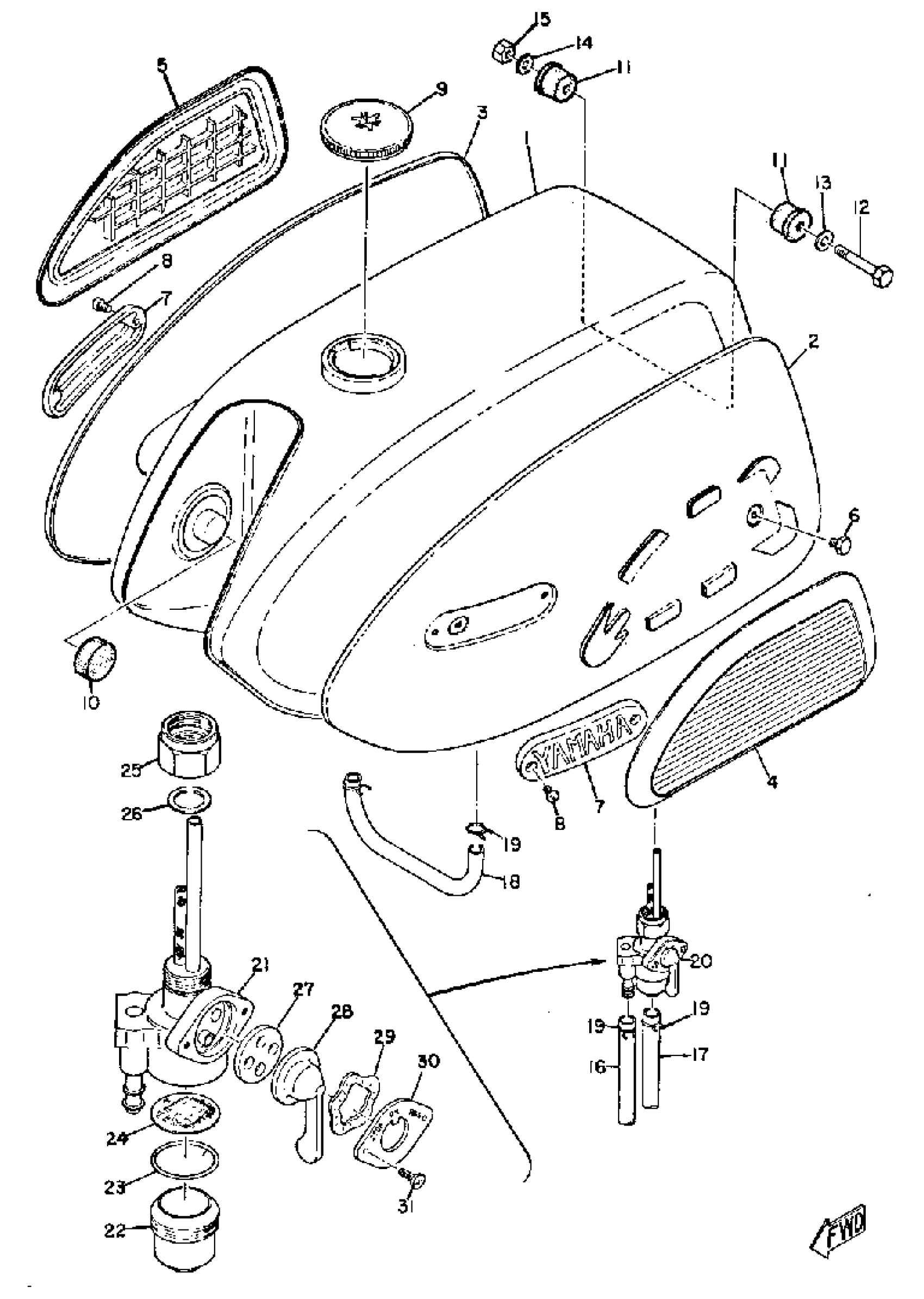

Yamaha YAS1C (YAS1C) 1968 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(183-24110-00-63)

Unavailable

1

FUEL TANK

(183-24110-00-63)

Unavailable

2

COVER, SIDE 1

(183-24129-01-33)

Unavailable

2

COVER, SIDE 1

(183-24129-01-46)

Unavailable

3

COVER, SIDE 2

(183-24139-01-00)

Unavailable

3

COVER, SIDE 2

(183-24139-01-46)

Unavailable

4

GRIP, KNEE 1

(183-24171-00-00)

Unavailable

5

GRIP, KNEE 2

(183-24172-00-00)

Unavailable

6

BOLT (11T)

90101-06576-00

$8.49

6

BOLT,HEXAGON

97017-06008-00

$3.55

7

EMBLEM 1

132-24161-00-00

Unavailable

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

CAP ASSY

122-24610-01-00

$22.99

10

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

11

DAMPER, LOCATING 1

(137-24181-00-00)

Unavailable

12

BOLT

(90109-06026-00)

Unavailable

13

WASHER, PLATE (4W3)

90201-086A3-00

Unavailable

14

WASHER PLATE 137241870000

90201-06072-00

Unavailable

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

HOSE (L420)

90445-092K1-00

Unavailable

17

HOSE (L420)

90445-092K1-00

Unavailable

18

HOSE (L420)

90445-092K1-00

Unavailable

19

CLIP 101235600

90467-08003-00

Unavailable

20

FUEL COCK ASSEMBLY 1

132-24500-02-00

Unavailable

22

. CUP, FILTER

1A0-24521-01-00

Unavailable

23

GASKET, FILTER

498-24522-00-00

Unavailable

24

. NET, FILTER 2

304-24515-00-00

Unavailable

25

. NUT

132-24531-00-00

Unavailable

26

GASKET, FUEL COCK

434-24532-00-00

Unavailable

27

VALVE

137-24523-00-00

Unavailable

28

. LEVER, COCK

168-24524-00-00

Unavailable

29

WASHER, WAVE

132-24518-00-00

Unavailable

30

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

31

CAP ASSY

127-24650-10-00

Unavailable

31

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable
