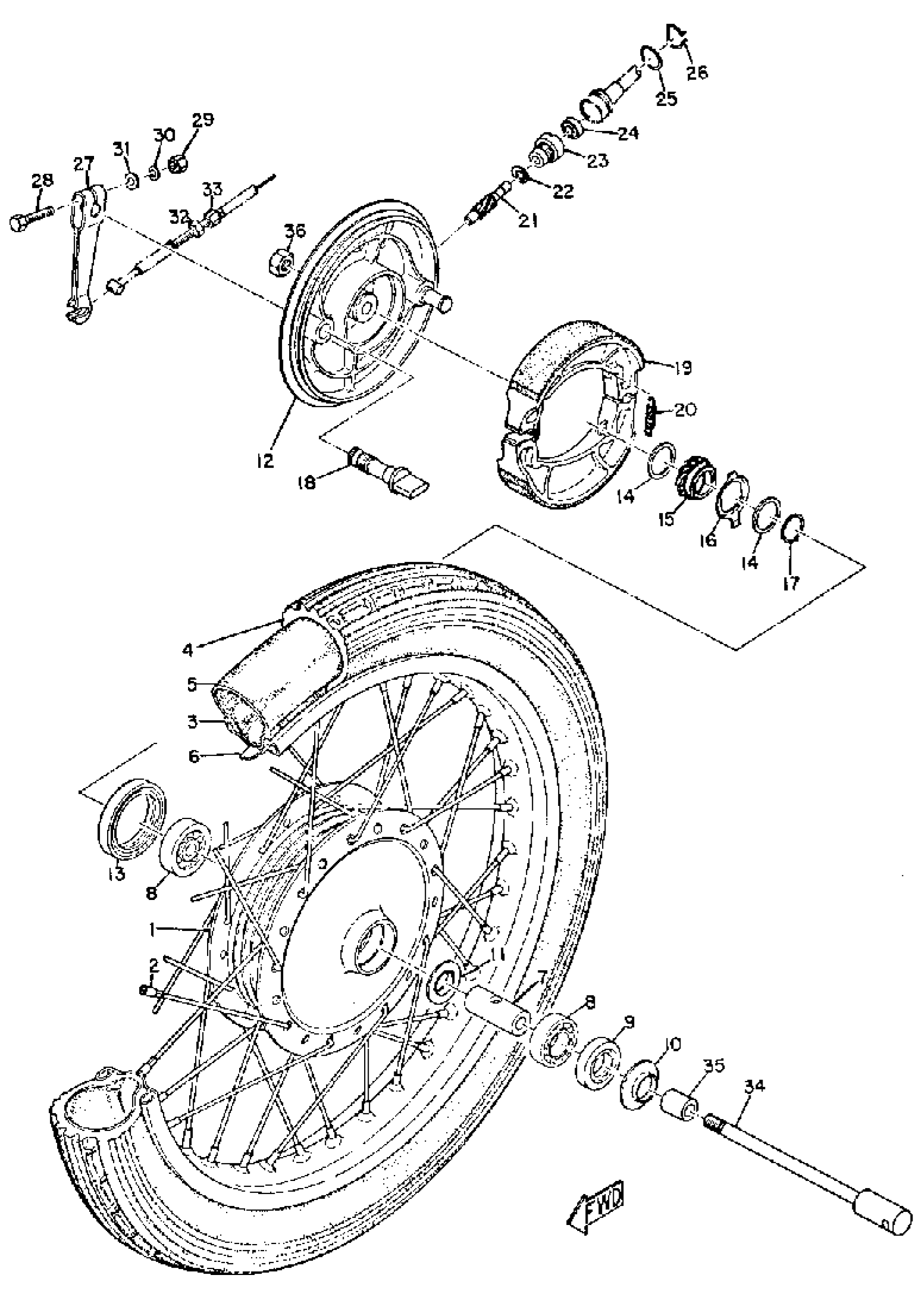

Yamaha YAS1C (YAS1C) 1968 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(183-25111-00-00)

Unavailable

2

SPOKE SET, FRONT

(183-25104-00-00)

Unavailable

3

RIM 1.40X18

(94414-18095-00)

Unavailable

4

TIRE REAR (164)

(94125-18351-00)

Unavailable

5

TUBE (5H5)

94225-18194-00

$36.99

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER

90560-12138-00

Unavailable

8

BEARING

93306-30102-00

$39.99

9

OIL SEAL (18X37X8-109)

93102-18008-00

$25.99

10

COVER, HUB DUST

2K5-25118-00-00

$8.99

11

FLANGE, SPACER

109-25315-00-00

$7.99

12

PLATE, BRAKE SHOE

(183-25121-00-00)

Unavailable

13

SEAL,OIL

93105-47007-00

$15.99

14

WASHER, PLATE 1832514700

90201-20269-00

$7.49

15

UNAVAILABLE IN PRICE BOOK

183-25135-09-00

Unavailable

16

CLUTCH, METER

183-25149-00-00

Unavailable

17

CIRCLIP(1AR)

99009-20400-00

Unavailable

18

CAMSHAFT

(183-25351-00-00)

Unavailable

19

BRAKE SHOE SET-2PCS

183-W2536-00-00

Unavailable

20

SPRING (5T9)

90506-17328-00

Unavailable

21

GEAR, METER

(183-25138-00-00)

Unavailable

22

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

23

BUSHING

109-25136-00-00

Unavailable

24

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

25

O-RING (26H)

93210-14579-00

Unavailable

26

RING, STOP

102-25137-00-00

Unavailable

27

LEVER, CAM SHAFT

137-25155-00-00

Unavailable

28

BOLT(JF7)

97080-06030-00

Unavailable

29

NUT, HEXAGON

95380-06600-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

32

NUT (109-26344-00)

90179-06143-00

Unavailable

33

BOLT (109-26345-00)

90123-06011-00

Unavailable

34

AXLE, WHEEL

357-25181-00-00

Unavailable

35

COLLAR 1832518300

90387-12095-00

Unavailable

36

NUT(3DM)

95304-12600-00

Unavailable
