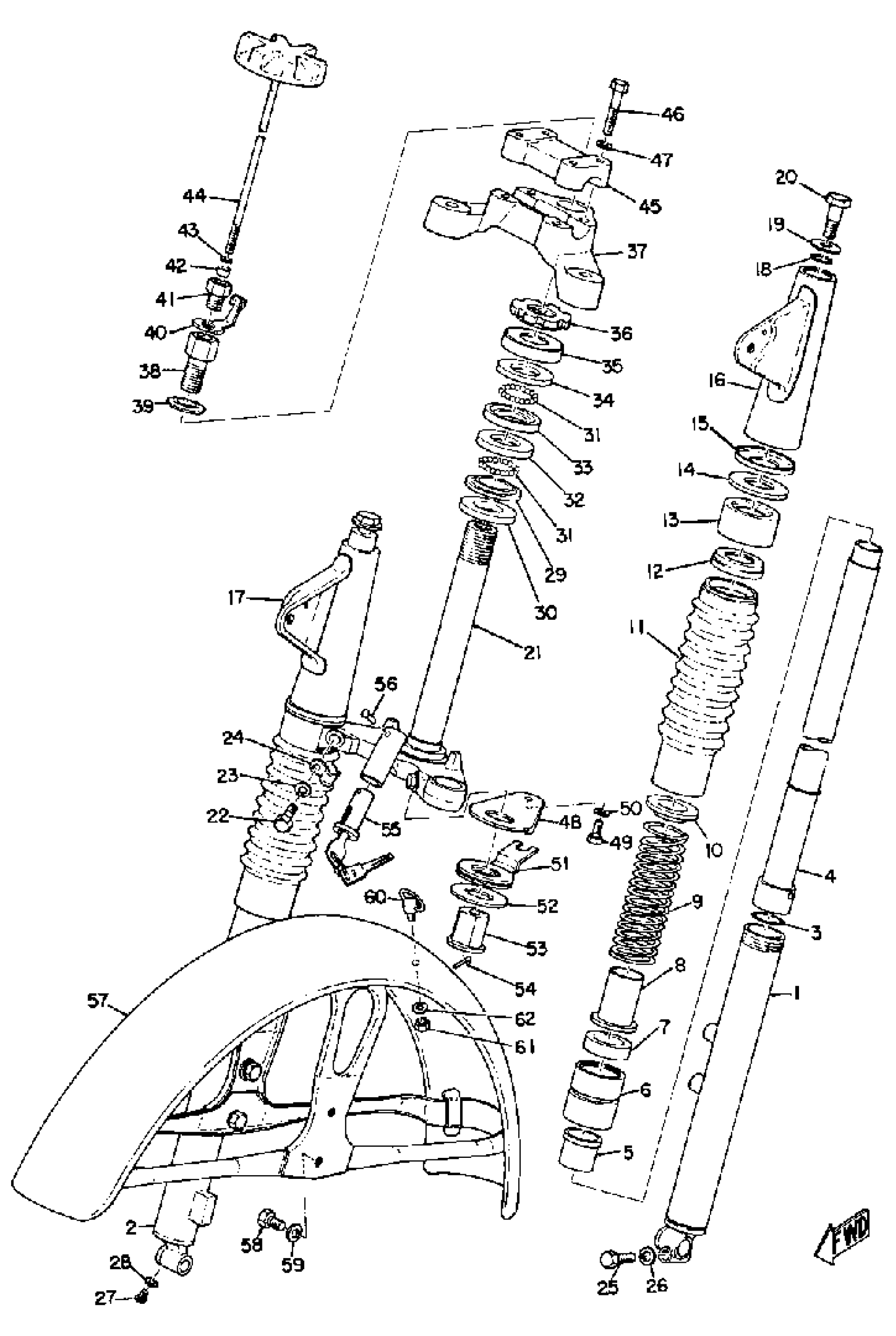

Yamaha YAS1C (YAS1C) 1968 FRONT FORK-FRONT FENDER Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(183-23100-40-29)

Unavailable

1

FRONT FORK ASSEMBLY

(183-23100-40-63)

Unavailable

1

TUBE, OUTER 1

(183-23126-00-00)

Unavailable

2

TUBE, OUTER 2

(183-23136-00-00)

Unavailable

3

O-RING

(164-23147-00-00)

Unavailable

4

TUBE, INNER 1

(183-23124-00-00)

Unavailable

5

METAL, SLIDE 1

(164-23125-00-00)

Unavailable

6

OUTER NUT

(307-23150-01-00)

Unavailable

7

. OIL SEAL

164-23145-01-00

Unavailable

8

SEAT, SPRING LOWER

(164-23143-00-00)

Unavailable

9

SPRING, FRONT FORK

(183-23141-10-00)

Unavailable

10

SEAT, SPRING UPPER

(167-23142-00-00)

Unavailable

11

BOOT,FRONT FORK

183-23191-40-00

Unavailable

12

GUIDE, BOOT

(183-23193-40-00)

Unavailable

13

COVER, OUTER 1

(183-23122-40-00)

Unavailable

14

GASKET

(183-23163-00-00)

Unavailable

15

GUIDE, COVER LOWER

(183-23116-00-00)

Unavailable

16

COVER, UPPER 1

(183-23121-00-29)

Unavailable

16

COVER, UPPER 1

(183-23121-00-63)

Unavailable

17

COVER, UPPER 2

(183-23131-00-29)

Unavailable

17

COVER, UPPER 2

(183-23131-00-63)

Unavailable

18

GASKET

307-23114-00-00

Unavailable

19

WASHER, CAP

(183-23112-00-00)

Unavailable

20

BOLT, CAP

(307-23111-00-00)

Unavailable

21

UNDER BRACKET

(183-23340-00-00)

Unavailable

22

BOLT 1

122-23346-02-00

Unavailable

23

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

24

. NO LONGER AVAILABLE

183-23318-00-00

Unavailable

25

BOLT (682)

97013-08025-00

Unavailable

26

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

27

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

28

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

29

RACE, BALL 1

B6E-23411-00-00

Unavailable

30

SEAL, DUST

164-23462-00-00

Unavailable

31

BALL

93501-04011-00

Unavailable

32

RACE, BALL 2

B6E-23412-00-00

Unavailable

33

RACE,BALL 2

4FP-F3412-10-00

Unavailable

34

RACE, BALL 1

4FP-F3411-20-00

Unavailable

35

COVER, BALL RACE

136-23415-00-00

Unavailable

36

NUT

90179-25004-00

Unavailable

37

CROWN, HANDLE

(183-23435-00-38)

Unavailable

38

BOLT, UNION

(90401-16019-00)

Unavailable

39

WASHER, SPEC''L SHAP

90209-17057-00

Unavailable

40

SPRING

(174-23428-00-00)

Unavailable

41

GUIDE, DAMPER

(174-23424-00-00)

Unavailable

42

WASHER, PLATE 1412342700

90202-06008-00

Unavailable

43

WASHER, PLATE

90201-06061-00

Unavailable

44

SHAFT, DAMPER

(183-23419-00-00)

Unavailable

45

HOLDER HANDLE UPR

164-23441-01-38

Unavailable

46

BOLT

97013-08035-00

Unavailable

47

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

48

PLATE, DAMPER 1

(174-23421-00-00)

Unavailable

49

BOLT(3JP)

97017-06010-00

Unavailable

50

WASHER, SPRING

92995-06100-00

Unavailable

51

PLATE, DAMPER 2

(183-23422-00-00)

Unavailable

52

DAMPER, FRICTION

(174-23425-00-00)

Unavailable

53

NUT, SPEC''L SHAPE

(90179-06032-00)

Unavailable

54

PIN, COTTER

(156-23433-00-00)

Unavailable

54

CLIP (156-83525-00)

90468-10050-00

Unavailable

55

STEERING LOCK ASSEMBLY

(122-23480-01-00)

Unavailable

56

RIVET

(122-23483-00-00)

Unavailable

57

FENDER, FRONT

(183-21510-00-93)

Unavailable

58

BOLT(62E)

97013-08012-00

Unavailable

59

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

60

HOLDER, CABLE

(174-21518-00-00)

Unavailable

61

NUT, HEXAGON

95380-06600-00

Unavailable

62

WASHER, SPRING

92995-06100-00

Unavailable
