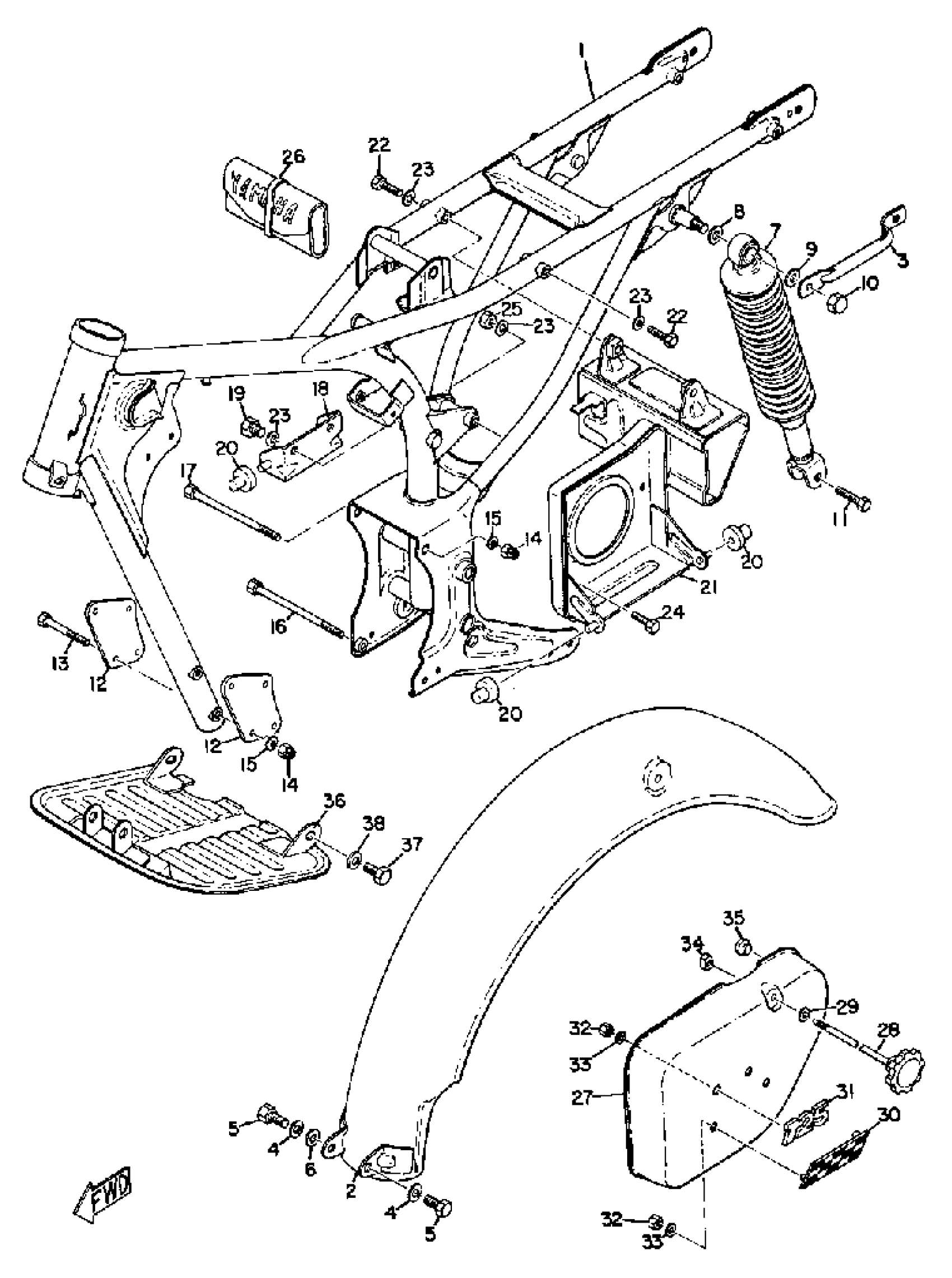

Yamaha YAS1C (YAS1C) 1968 FRAME Diagram
#
1
FRAME
(218-21110-00-33)
Unavailable
2
FENDER, REAR
(183-21610-00-93)
Unavailable
3
HANDLE, STANDING
(183-21165-00-00)
Unavailable
6
WASHER, PLAIN
92990-08200-00
Unavailable
7
SHK/ABS ASSEMBLY, REAR
(218-22210-21-00)
Unavailable
10
NUT, CROWN (650)
95380-10800-00
Unavailable
11
BOLT, DOME HEAD
(90106-08027-00)
Unavailable
12
STAY, ENGINE 2
(183-21315-00-00)
Unavailable
16
BOLT, HEXAGON (582)
90101-08286-00
Unavailable
17
BOLT, FLANGE
95817-08115-00
Unavailable
18
HINGE
(183-21797-00-00)
Unavailable
19
BOLT(62E)
97013-08012-00
Unavailable
20
BUSH, SPEC''L RUBBER
(90385-05017-00)
Unavailable
21
BOX
(183-21170-01-00)
Unavailable
22
BOLT
97014-08040-00
Unavailable
25
NUT(6L2)
95333-08600-00
Unavailable
26
TOOL KIT
(396-28100-10-00)
Unavailable
27
COVER, SIDE 1
(183-21711-60-35)
Unavailable
28
KNOB, SIDE COVER 1
(183-21714-00-00)
Unavailable
29
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
30
EMBLEM 7
(193-21787-60-00)
Unavailable
31
EMBLEM 6
(183-21786-01-00)
Unavailable
32
NUT SPRING 116283170100
90183-04005-00
Unavailable
33
WASHER PLATE 174283160000
90202-04003-00
Unavailable
34
NUT(650)
95380-06700-00
Unavailable
35
DAMPER, LOCATING 1
(137-21778-00-00)
Unavailable
36
PROTECTOR, ENGINE
(218-21471-00-33)
Unavailable
