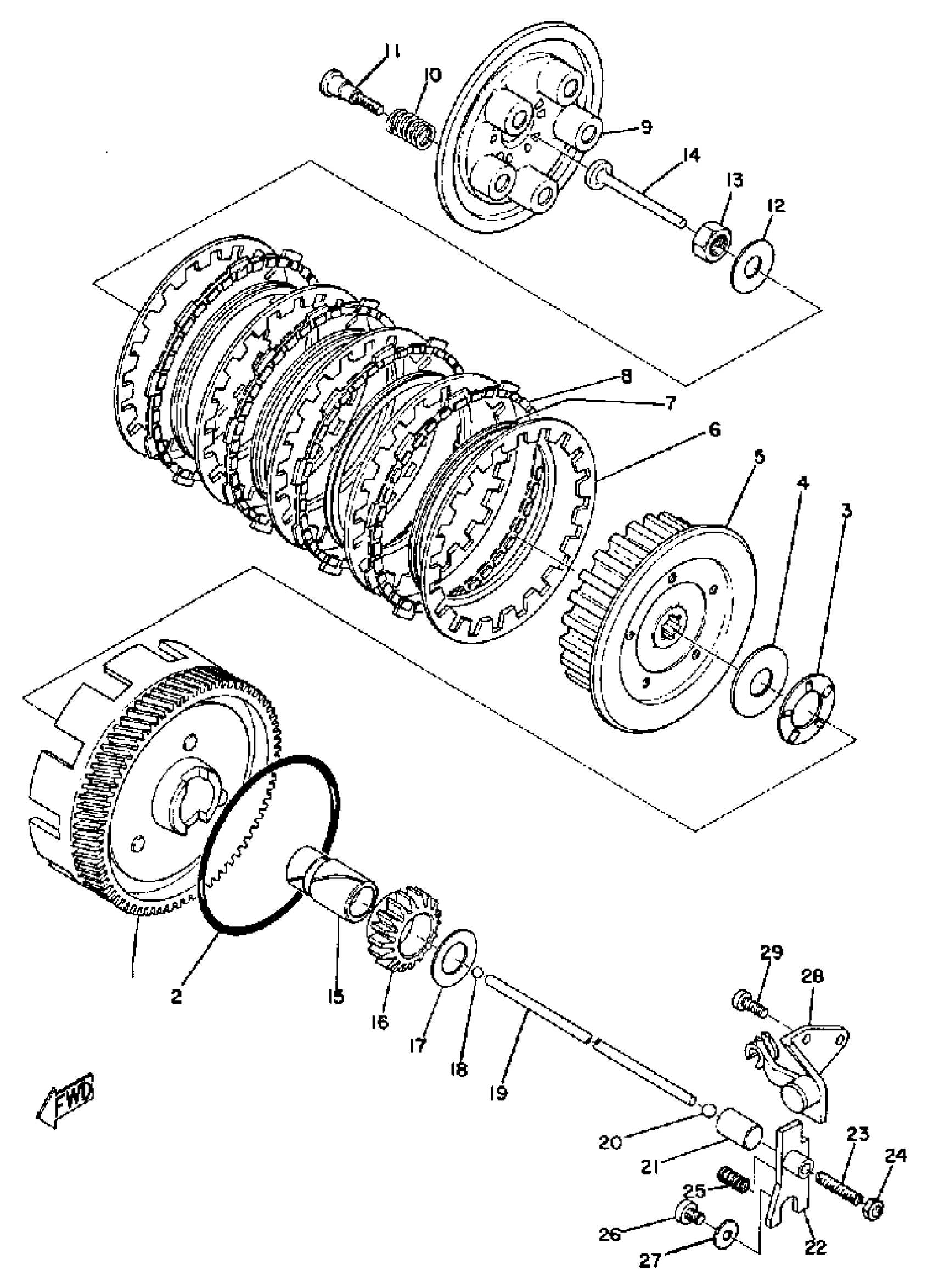

Yamaha YAS1C (YAS1C) 1968 CLUTCH Diagram
#
Description
Price
1
PRI DRVN GEAR
(183-16150-00-00)
Unavailable
1
CLUTCH ASSEMBLY
(183-16301-01-00)
Unavailable
3
. BEARING, FLAT #41
93341-22302-00
Unavailable
4
PLATE, THRUST
131-16154-00-00
Unavailable
5
. BOSS, CLUTCH
132-16371-02-00
Unavailable
11
SCREW, SPECL SHAPE
(90149-05147-00)
Unavailable
12
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
15
SPACER
(90560-17158-00)
Unavailable
16
GEAR, KICK PINION
(132-15631-00-00)
Unavailable
17
PLATE, THRUST
122-16164-00-00
Unavailable
18
BALL
93501-04011-00
Unavailable
19
ROD, PUSH 2
183-16357-00-00
Unavailable
20
BALL
93505-16006-00
Unavailable
21
CROWN, PUSH
(174-16348-00-00)
Unavailable
22
LEVER, PUSH 2
(174-16362-00-00)
Unavailable
23
BOLT SET 241163430000
90113-06013-00
Unavailable
24
NUT(650)
95380-06700-00
Unavailable
25
SPRING, COMPRESSION
(90501-08037-00)
Unavailable
26
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
27
WASHER, PLATE
(90201-06054-00)
Unavailable
28
PUSH LEVER ASSEMBLY
(174-16340-00-00)
Unavailable
29
SCREW, PAN
98507-06014-00
Unavailable
