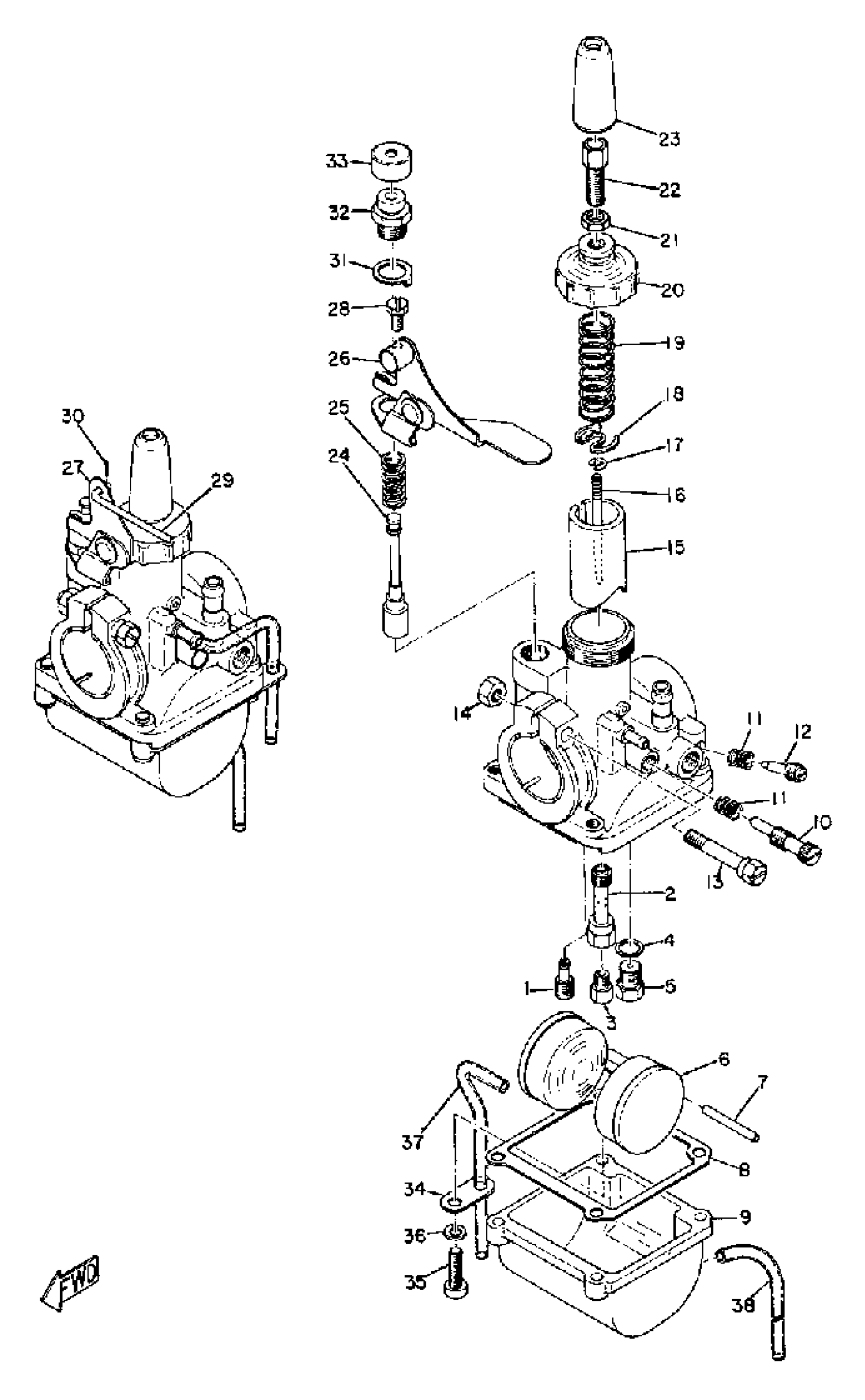

Yamaha YAS1C (YAS1C) 1968 CARBURETOR Diagram

#

Description
Price

1

. JET, PILOT #175

127-14142-17-00

Unavailable

1

JET, PILOT (# 17.5)

193-14142-17-00

$9.99

1

CARBURETOR ASSEMBLY 1

(218-14101-61-00)

Unavailable

2

NOZZLE, MAIN

(164-14141-30-00)

Unavailable

2

CARBURETOR ASSEMBLY 2

(218-14102-61-00)

Unavailable

3

. JET, MAIN #80

137-14143-16-00

Unavailable

3

. JET, MAIN #85

137-14143-17-00

Unavailable

3

. JET, MAIN #90

137-14143-18-00

Unavailable

3

JET, MAIN #100

137-14143-20-00

Unavailable

3

JET, MAIN #110

137-14143-22-A0

Unavailable

4

WASHER, VALVE SEAT

127-14195-00-00

$7.99

5

VALVE SEAT ASSY

353-14190-15-00

Unavailable

6

. FLOAT

164-14185-00-00

Unavailable

7

PIN, FLOAT

127-14186-00-00

$6.65

8

GASKET, FLOAT CHAMBER

164-14184-00-00

$16.49

9

BODY, FLOAT CHMBR 1

(174-14181-01-00)

Unavailable

10

THROTTLE SCREW SET

53L-14103-00-00

Unavailable

11

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

12

AIR SCREW SET

22K-14104-00-00

Unavailable

13

. SCREW, BODY FITTING

127-14125-01-00

Unavailable

14

NUT, HOLDING

(127-14164-00-00)

Unavailable

14

NUT, HEXAGON (663)

95380-05600-00

Unavailable

15

VALVE, THROTTLE 1

(183-14112-20-00)

Unavailable

15

VALVE, THROTTLE 2

(183-14113-20-00)

Unavailable

16

. UNAVAILABLE IN PRICE BOOK

156-14116-90-00

Unavailable

17

CLIP

3FA-14137-00-00

Unavailable

18

SEAT, SPRING

212-14136-00-00

Unavailable

19

SPRING, THROTTLE VALVE

174-14131-01-00

Unavailable

20

TOP, MIXING CHAMBER

(174-14158-01-00)

Unavailable

21

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

22

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

23

CAP

(174-14169-01-00)

Unavailable

24

. PLUNGER, STARTER

174-14171-00-00

Unavailable

25

SPRING, PLUNGER

132-14135-00-00

Unavailable

26

LEVER, STARTER 1

(183-14175-01-00)

Unavailable

27

LEVER, STARTER 2

(183-14176-00-00)

Unavailable

28

SCREW, ROD

(132-14486-00-00)

Unavailable

28

SCREW, ROD

(193-14486-00-00)

Unavailable

29

ROD, STARTER LEVER

(132-14177-00-00)

Unavailable

30

. PIN, COTTER

91490-12012-00

Unavailable

31

PLATE, STARTER LVR

(174-14178-00-00)

Unavailable

32

CAP, PLUNGER

(132-14174-00-00)

Unavailable

33

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

34

PLATE

132-14146-00-00

Unavailable

35

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

36

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

37

PIPE, AIR VENT

183-14197-01-00

Unavailable

38

PIPE

23F-14197-00-00

Unavailable
