TRANSMISSION

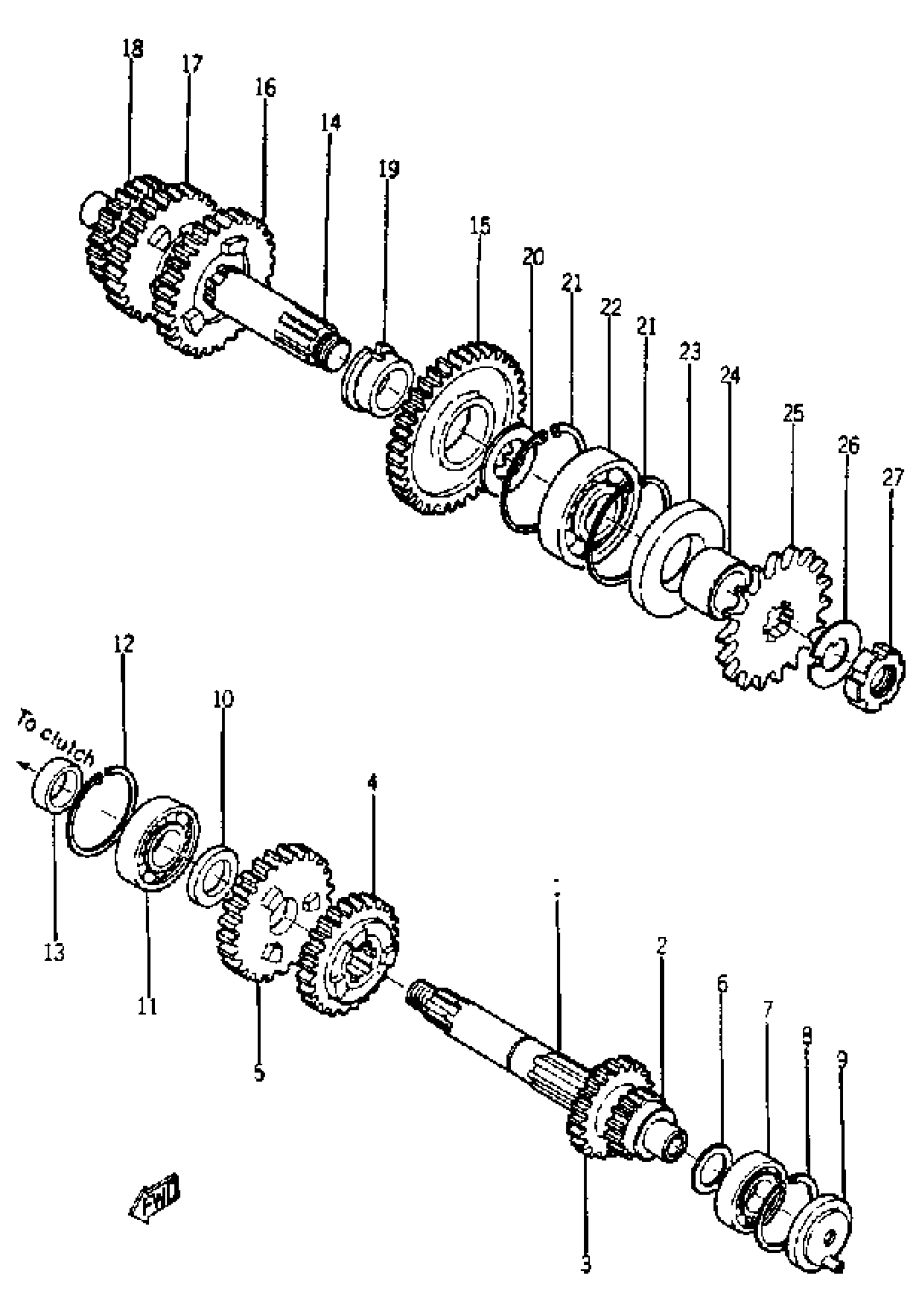

Yamaha YA6 (YA6_66) 137 1964 TRANSMISSION Diagram
#
1
MAIN AXLE ASSEMBLY
(137-17401-01-00)
Unavailable
1
. AXLE, MAIN
(137-17411-01-00)
Unavailable
2
. GEAR, 1ST PINION
(137-17111-00-00)
Unavailable
2
DRIVE AXLE ASSEMBLY
(137-17402-00-00)
Unavailable
3
. GEAR, 2ND PINION
(140-17121-00-00)
Unavailable
3
. GEAR, 2ND PINION
(140-17121-00-00)
Unavailable
4
. GEAR, 3RD PINION
(140-17131-00-00)
Unavailable
4
. GEAR, 3RD PINION
(140-17131-00-00)
Unavailable
5
. GEAR, 4TH PINION
(137-17141-01-00)
Unavailable
5
. GEAR, 4TH PINION
(137-17141-01-00)
Unavailable
6
SHIM, MAIN AXLE 0.6MM
137-17417-00-06
$2.50
7
BRG, R-B (7H4)
93306-20211-00
$25.99
8
CIRCLIP(47Y)
99009-35500-00
$8.49
9
SEAL, PUSH ROD
(137-15389-00-00)
Unavailable
10
COLLAR
(90387-17129-00)
Unavailable
11
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
11
BEARING, CYLINDER.#13
93313-41704-00
Unavailable
12
CIR-CLIP (70R)
93420-40064-00
Unavailable
12
CIR-CLIP (70R)
93420-40064-00
Unavailable
13
SPACER 001
(90560-17031-00)
Unavailable
14
AXLE, DRIVE
(137-17421-00-00)
Unavailable
15
GEAR, 1ST WHEEL
(227-17211-00-00)
Unavailable
16
GEAR, 2ND WHEEL 001
(140-17221-00-00)
Unavailable
16
GEAR, 2ND WHEEL 001
(140-17221-00-00)
Unavailable
17
GEAR, 3RD WHEEL 001
(140-17231-00-00)
Unavailable
17
GEAR, 3RD WHEEL 001
(140-17231-00-00)
Unavailable
18
GEAR, 4TH WHEEL
(137-17241-00-00)
Unavailable
19
COLLAR 1
(137-17258-00-00)
Unavailable
20
SHIM 1
137-17427-00-06
Unavailable
21
. CIRCLIP
93450-52010-00
Unavailable
22
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
23
OIL SEAL (28X52X6-137)
93102-28023-00
Unavailable
24
COLLAR
90387-20346-00
Unavailable
25
SPROCKET,DRIVE 14T(5N01746141)
93822-14043-00
Unavailable
25
SPROCKET,DRIVE 15T(1741746150)
93822-15065-00
Unavailable
25
SPROCKET,DRIVE 16T(10V1746160)
93822-16095-00
Unavailable
26
WASHER, LOCK (1L8)
90215-16127-00
Unavailable
27
NUT,SPEC'L SHAPE
90179-16018-00
Unavailable
