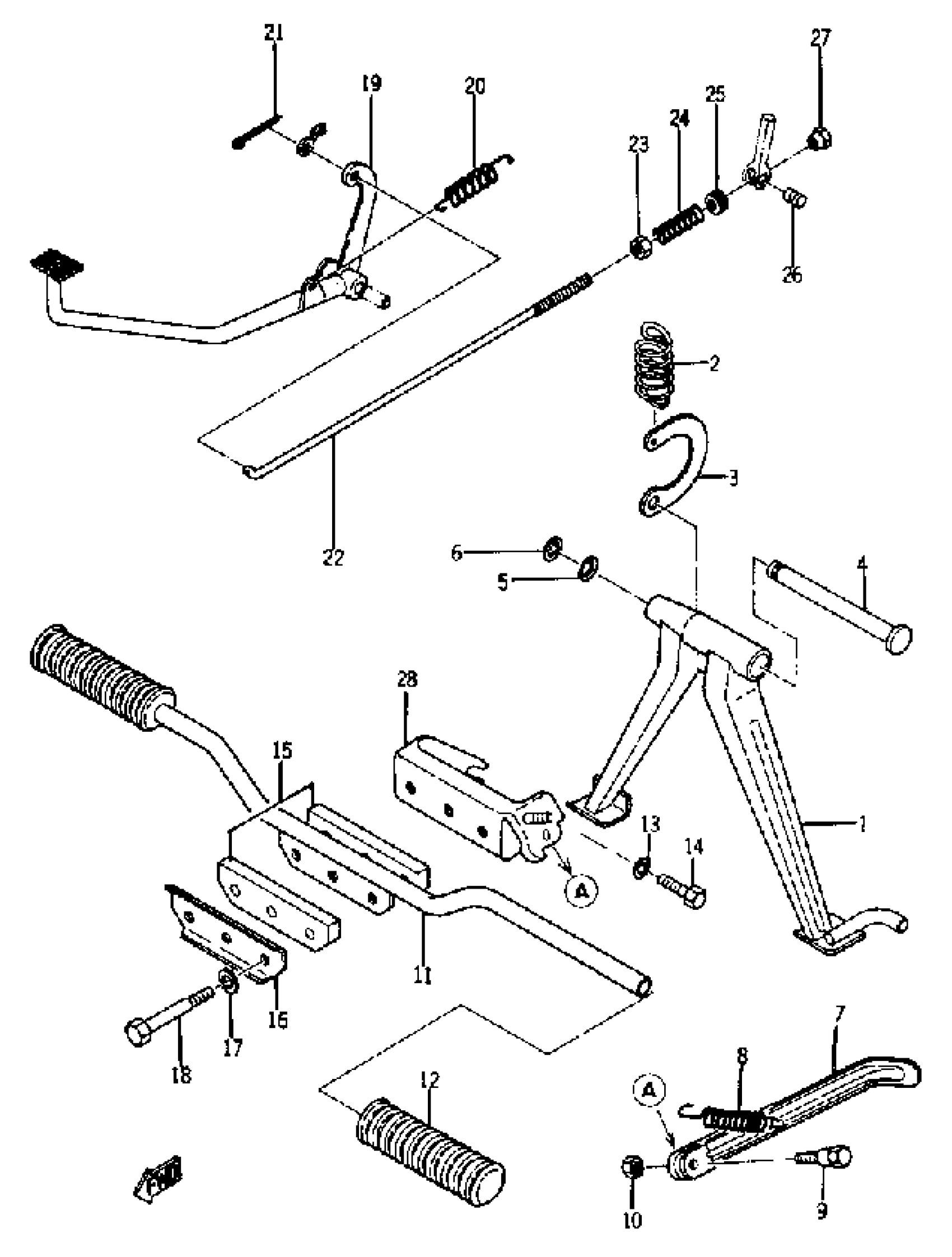

Yamaha YA6 (YA6_66) 137 1964 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

(137-27111-00-00)

Unavailable

2

SPRING, TENSION

(90506-40061-00)

Unavailable

3

LINK, MAIN STAND

(137-27115-00-00)

Unavailable

4

SHAFT, MAIN STAND

(137-27112-01-00)

Unavailable

5

WASHER, WAVE

(90206-18026-00)

Unavailable

6

CIRCLIP (122)

93430-12008-00

$8.49

7

STAND, SIDE

(137-27311-01-00)

Unavailable

8

SPRING, TENSION

(90506-29053-00)

Unavailable

9

BOLT 137273170000

90109-08031-00

$8.49

10

. NUT

95380-08700-00

Unavailable

11

FOOTREST 1

(137-27411-00-00)

Unavailable

12

COVER,FOOTREST

307-27413-00-00

Unavailable

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

BOLT(JA9)

90101-08691-00

$4.29

15

DAMPER, FOOTREST

(137-27414-00-00)

Unavailable

16

WASHER, FOOTREST

(137-27417-00-00)

Unavailable

17

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

18

BOLT

90109-08055-00

Unavailable

19

NO LONGER AVAILABLE

137-27211-00-93

Unavailable

20

SPRING TENSION 137272160000

90506-23045-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

ROD, BRAKE

(137-27231-02-00)

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

SPRING, (180-27236-00)

90501-10245-00

Unavailable

25

SEAT, SPRING

(148-27239-00-00)

Unavailable

26

PIN 1562723700

90249-12008-00

Unavailable

27

NUT (25K)

90179-06411-00

Unavailable

28

FRT FOOTREST ASSEMBLY L

(137-27410-01-00)

Unavailable
