Description

Price

1

LEVER, SHIFT 1

(137-18121-01-00)

Unavailable

1

SHAFT, SHIFT

(137-18125-00-00)

Unavailable

2

SHAFT, SHIFT

(137-18125-00-00)

Unavailable

3

CIRCLIP (137)

93430-10015-00

$9.49

4

WASHER, PLATE (353)

90201-12575-00

$8.49

5

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

6

O-RING (137)

93210-09008-00

$10.49

7

BRACKET

(137-18128-00-00)

Unavailable

8

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

9

LEVER, SHIFT 1

(137-18121-01-00)

Unavailable

10

CIRCLIP (137)

93430-08007-00

$8.49

11

PAWL HOLDER ASSEMBLY

(137-18180-01-00)

Unavailable

12

SPRING, TORSION

(90508-30050-00)

Unavailable

13

SCREW, SPEC''L SHAPE

(90149-06015-00)

Unavailable

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

SCREW, SPEC''L SHAPE

90149-06016-00

Unavailable

16

PEDAL, SHIFT

(137-18111-61-93)

Unavailable

17

COVER, CHANGE PEDAL

132-18113-01-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

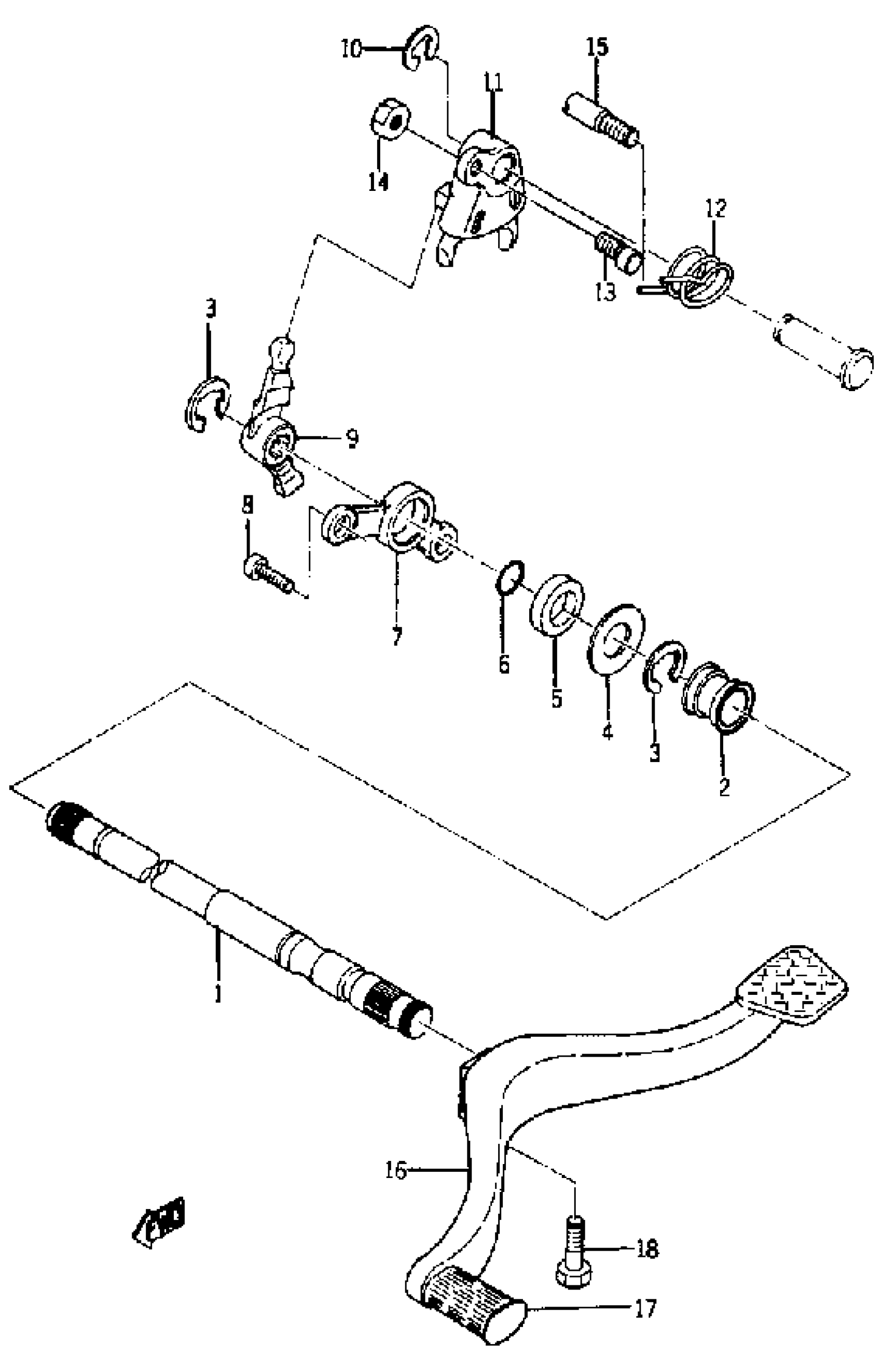

Yamaha YA6 (YA6_66) 137 1964 SHIFTER 1 Diagram

LEVER, SHIFT 1

SHAFT, SHIFT

SHAFT, SHIFT

CIRCLIP (137)

WASHER, PLATE (353)

OIL SEAL (12X22X5-371)

O-RING (137)

BRACKET

SCREW, PAN HEAD(6E5)

LEVER, SHIFT 1

CIRCLIP (137)

PAWL HOLDER ASSEMBLY

SPRING, TORSION

SCREW, SPEC''L SHAPE

NUT, HEXAGON

SCREW, SPEC''L SHAPE

PEDAL, SHIFT

COVER, CHANGE PEDAL

BOLT, HEXAGON
