- YA6 (YA6_66) 137 1964
REAR WHEEL

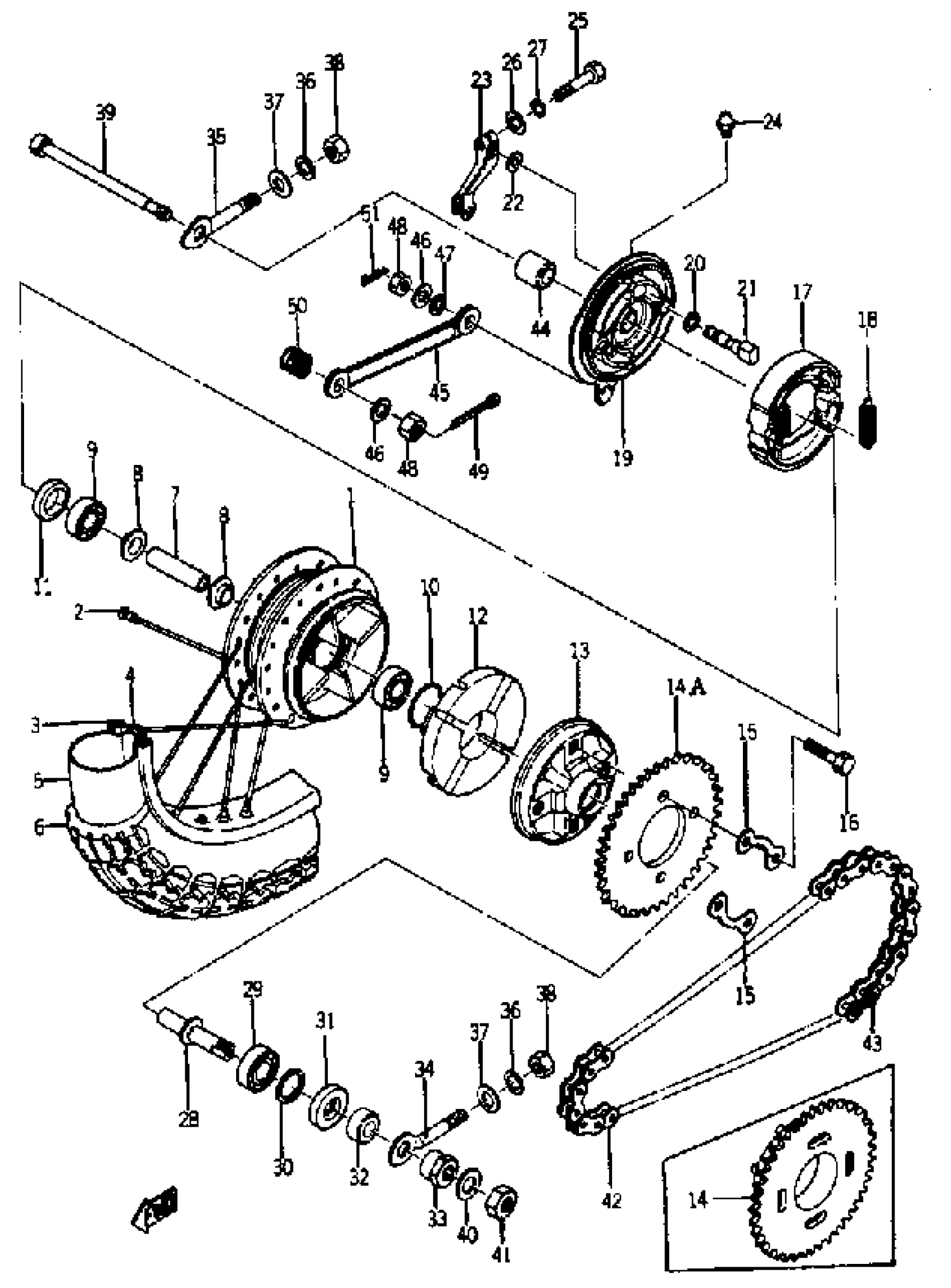

Yamaha YA6 (YA6_66) 137 1964 REAR WHEEL Diagram
#
1
HUB, REAR
(136-25311-02-38)
Unavailable
1
SPROCKET,DRIVN 39T
174-25439-20-00
Unavailable
2
SPOKE SET, REAR
(136-25304-00-00)
Unavailable
2
SPROCKET, DRIVN 41T
(174-25441-20-00)
Unavailable
3
RIM
94416-16002-00
Unavailable
4
BAND, RIM
94330-16058-00
$20.99
5
TUBE
(94230-16011-00)
Unavailable
6
300X16 YOKOHAMA
(94130-16030-00)
Unavailable
7
SPACER 136253170000
90560-15136-00
Unavailable
8
FLANGE, SPACER
146-25116-00-00
$8.99
9
BEARING(3DL)
93306-20226-00
$38.99
10
O-RING (132)
93210-41042-00
$7.49
11
OIL SEAL, S-TYPE
93101-42018-00
Unavailable
12
DAMPER
(136-25364-01-00)
Unavailable
13
CLUTCH, HUB 001
(137-25366-00-00)
Unavailable
14
UNAVAILABLE IN PRICE BOOK 001
14A---
Unavailable
14
SPROCKET,DRIVN 39T
174-25439-20-00
Unavailable
15
WASHER
148-25412-00-00
Unavailable
16
BOLT, WASHER BASED
90105-10005-00
Unavailable
17
BRAKE SHOE KIT
3GW-W253A-00-00
Unavailable
18
SPRING, TENSION 2462533300
90507-20002-00
Unavailable
19
BRAKE SHOE PLATE ASSY
(397-25320-10-00)
Unavailable
20
SHIM, CAMSHAFT
(136-25153-00-00)
Unavailable
21
CAMSHAFT
(136-25351-01-00)
Unavailable
22
SEAL, CAMSHAFT
137-25159-00-00
Unavailable
23
LEVER, CAM SHAFT
122-25355-00-00
Unavailable
24
NIPPLE, GREASE
93700-06M03-00
Unavailable
25
BOLT(3DM)
97024-06020-00
Unavailable
26
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
AXLE, SPROCKET
(137-25387-00-00)
Unavailable
29
BEARING(3BN)
93306-00438-00
Unavailable
30
CIRCLIP(5U8)
99009-42500-00
Unavailable
31
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
32
COLLAR
(90387-20158-00)
Unavailable
33
NUT, HEXAGON
90170-20167-00
Unavailable
34
PULLER, CHAIN 1
(137-25388-00-00)
Unavailable
35
PULLER, CHAIN 2
137-25389-00-00
Unavailable
36
WASHER, SPRING
92995-06100-00
Unavailable
37
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
38
NUT, HEXAGON
95380-06600-00
Unavailable
39
AXLE, WHEEL
(137-25381-00-00)
Unavailable
40
WASHER, PLATE
(90201-15312-00)
Unavailable
41
NUT(6TC)
95337-14600-00
Unavailable
42
428 STD 108L
(94504-28108-00)
Unavailable
43
JOINT, CHAIN(3KX)
94681-64001-00
Unavailable
44
COLLAR
90387-15119-00
Unavailable
45
BAR, TENSION
(136-25371-00-00)
Unavailable
46
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
47
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
48
NUT (682)
95380-10700-00
Unavailable
49
PIN, COTTER
91490-20025-00
Unavailable
50
SPRING, COMPRESSION
(90501-20129-00)
Unavailable
51
CLIP 136253750000
90468-12006-00
Unavailable
