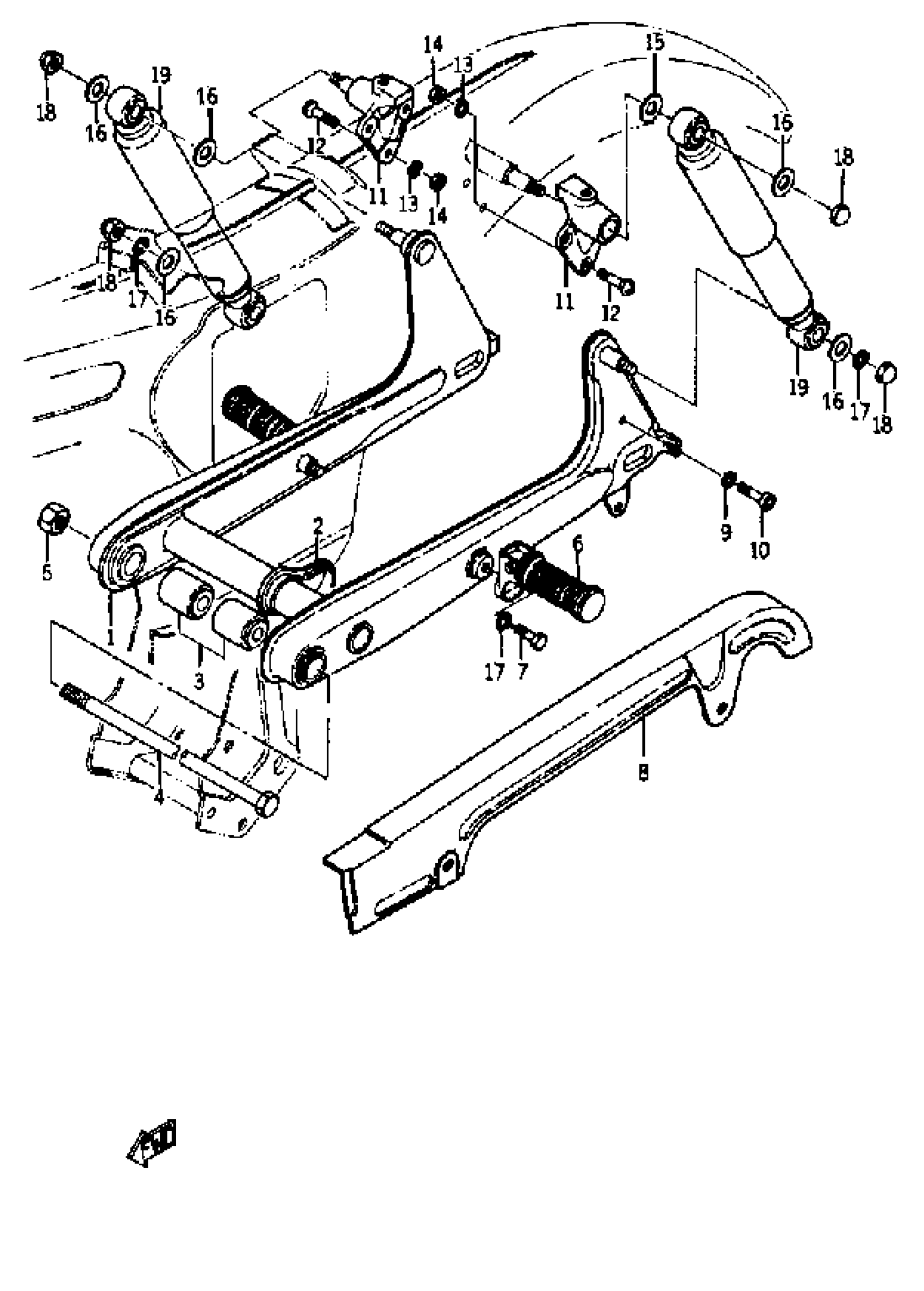

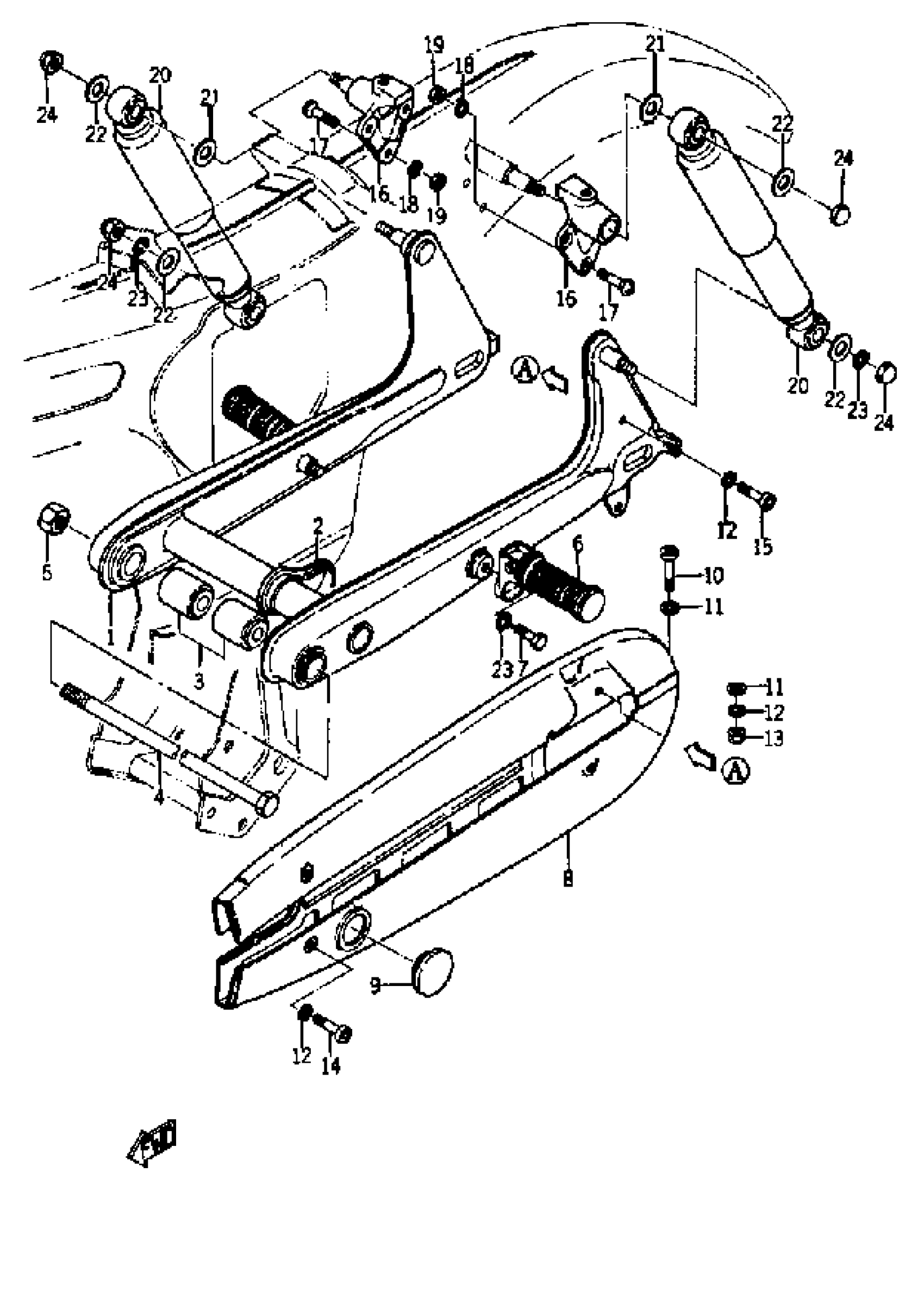

Yamaha YA6 (YA6_66) 137 1964 REAR ARM - REAR CUSHION - CHAIN CASE Diagram

#

Description

Price

1

REAR ARM

137-22110-61-81

Unavailable

2

SEAL, GUARD

137-22151-00-00

Unavailable

3

BUSH 1

137-22123-00-00

Unavailable

4

SHAFT, PIVOT

137-22141-00-00

Unavailable

5

NUT(6TC)

95337-14600-00

$11.49

6

REAR FOOTREST ASSY

120-27430-00-00

Unavailable

7

BOLT

97013-10045-00

Unavailable

8

CASE, CHAIN

137-22311-60-35

Unavailable

9

WASHER, SPRING

92995-06100-00

Unavailable

10

SCREW PAN HEAD

98580-06020-00

$8.49

11

BRACKET, RR SHK/ABS

137-21381-00-00

Unavailable

12

SCREW, OVAL HEAD

98603-06018-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

WASHER, PLATE (3X3)

90201-15797-00

$9.49

16

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

17

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

18

NUT, CROWN (650)

95380-10800-00

Unavailable

19

SHOCK ABSORBER, REAR

137-22210-03-81

Unavailable
