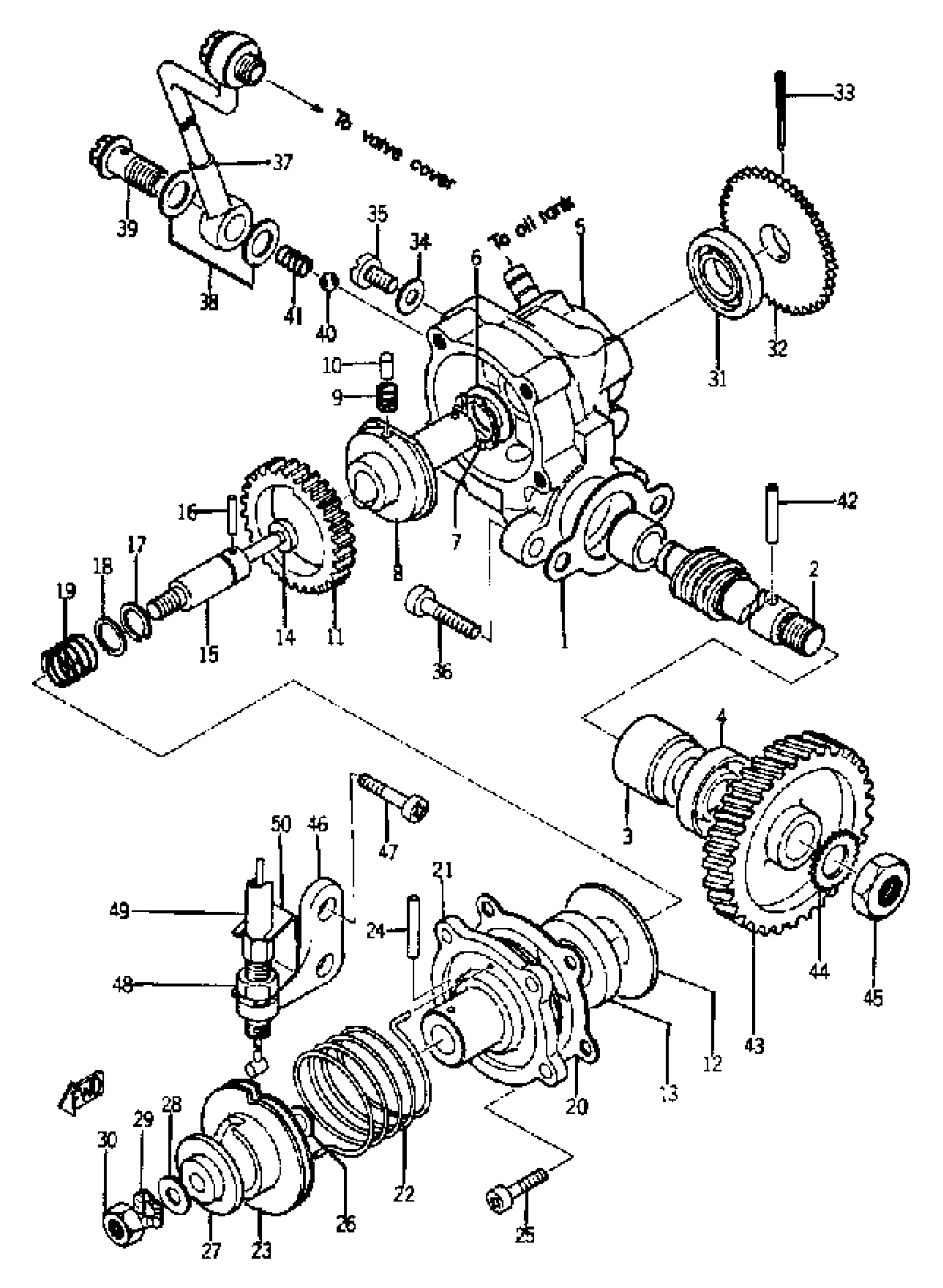

Yamaha YA6 (YA6_66) 137 1964 OIL PUMP Diagram
#
1
OIL PUMP ASSEMBLY
(137-13101-02-00)
Unavailable
1
GASKET, PUMP CASE
126-13116-01-00
$8.99
2
SHAFT, WORM
(137-13175-00-00)
Unavailable
3
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
4
OIL SEAL (10X22X7-137)
93101-10002-00
$8.49
6
PLATE, CAM THRUST
137-13148-00-00
Unavailable
7
WASHER, WAVE (137)
90206-11016-00
Unavailable
9
SPRING, COMPRESSION
(90501-02016-00)
Unavailable
10
PIN, DOWEL
(93602-04029-00)
Unavailable
11
GEAR, WORM WHEEL
(137-13124-00-00)
Unavailable
12
PLATE, WORM WHEEL
(137-13127-00-00)
Unavailable
13
OIL SEAL (14X25X5-2H7)
93104-14059-00
$13.49
14
OIL SEAL
93104-04114-00
$4.29
16
PIN,DOWEL (137)
93603-12030-00
$2.07
17
. CIRCLIP, PLUNGER
93440-08001-00
Unavailable
18
SEAT, SPRING
(137-13134-00-00)
Unavailable
19
SPRING, PLNGR RTRN
(137-13135-00-00)
Unavailable
20
. GASKET, PUMP CASE COVER
137-13142-00-00
Unavailable
22
SPRING, TORSION
(90508-10216-00)
Unavailable
23
PULLEY, ADJUSTING
(137-13144-00-00)
Unavailable
24
. PIN
91608-20010-00
Unavailable
25
SCREW, PAN HEAD
92501-04010-00
Unavailable
26
SHIM,PLUNGER
137-13137-00-10
Unavailable
27
PLATE, ADJUSTING
137-13138-01-00
Unavailable
28
SHIM,PLUNGER
137-13137-00-10
Unavailable
29
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
30
NUT
(137-13139-00-00)
Unavailable
31
OIL SEAL (J10)
93101-10090-00
Unavailable
32
PLATE, STARTER
(137-13128-00-00)
Unavailable
33
. PIN, COTTER
91401-12018-00
Unavailable
34
GASKET 137131870000
90430-04004-00
Unavailable
35
SCREW, PAN HEAD
(164-81245-20-00)
Unavailable
36
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
37
PIPE, DELIVERY 1
(137-13161-00-00)
Unavailable
38
GASKET(3FP)
90430-06224-00
Unavailable
39
BOLT UNION 137131650000
90401-06001-00
Unavailable
40
BALL
93505-32002-00
Unavailable
41
SPRING, COMPRESSION
(90501-02017-00)
Unavailable
42
PIN,DOWEL (137)
93603-22028-00
Unavailable
43
GEAR, PUMP DRIVE
(137-13178-00-00)
Unavailable
44
WASHER (688)
92990-08400-00
Unavailable
45
. NUT
95380-08700-00
Unavailable
46
HOLDER, ADJUSTING
(137-26381-00-00)
Unavailable
47
SCREW
92503-05008-00
Unavailable
48
NUT(650)
95380-06700-00
Unavailable
49
BOLT 2272638200
90123-06002-00
Unavailable
50
CLIP
(90468-06015-00)
Unavailable
