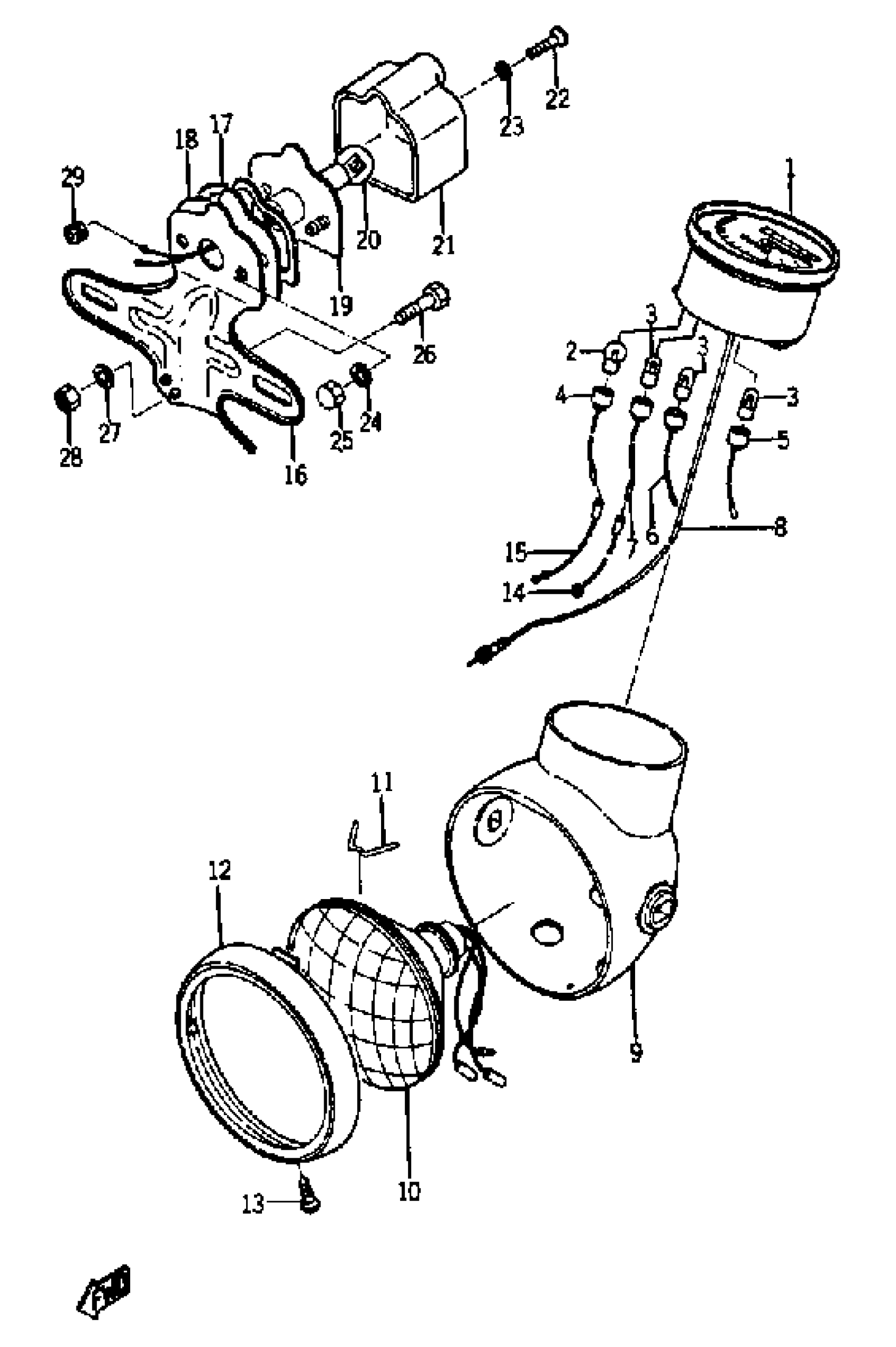

Yamaha YA6 (YA6_66) 137 1964 HEAD LAMP - TAIL LAMP Diagram

#

Description
Price

1

SPEEDOMETER CABLE

(037-83550-00-00)

Unavailable

1

SPEEDOMETER ASSEMBLY

(137-83510-40-00)

Unavailable

1

HEADLIGHT ASSEMBLY

(137-84300-60-22)

Unavailable

2

BULB (12V-3.4W)

123-83516-21-00

$4.26

2

TAILLIGHT UNIT ASSEMBLY

(137-84710-60-00)

Unavailable

3

BULB

256-84347-00-00

Unavailable

4

SOCKET, METER

(136-83536-20-00)

Unavailable

5

SOCKET, CHARGE

(136-83539-20-00)

Unavailable

6

SOCKET, CHARGE

(136-83539-20-00)

Unavailable

7

SOCKET, FLASHER

(136-83538-20-00)

Unavailable

8

SPEEDOMETER CABLE

(137-83550-11-00)

Unavailable

9

BODY ASSEMBLY

(136-84330-00-28)

Unavailable

10

LENS ASSEMBLY

(136-84320-60-00)

Unavailable

11

SPRING, REFLECTOR

(136-84324-00-00)

Unavailable

12

RIM, HEADLIGHT

(136-84315-61-00)

Unavailable

13

SCREW, RIM FITTING

(150-84125-00-00)

Unavailable

14

WIRE, LEAD 1

(122-84148-00-00)

Unavailable

15

WIRE, LEAD 2

(122-84149-00-00)

Unavailable

17

SEAT, BASE

(124-84512-60-00)

Unavailable

18

COVER, TAILLIGHT

(124-84516-60-00)

Unavailable

19

BASE, TAILLIGHT

(137-84711-60-00)

Unavailable

20

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

21

LENS, TAILLIGHT

(124-84521-60-00)

Unavailable

22

SCREW,PAN HEAD

92503-04015-00

Unavailable

23

WASHER

(124-84522-60-00)

Unavailable

24

WASHER, TOOTH

92990-06300-00

Unavailable

25

NUT (J17)

95380-06800-00

Unavailable

26

BOLT (661)

97013-06012-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

NUT, HEXAGON

95380-06600-00

Unavailable

29

GROMMET 152845180000

90480-12013-00

Unavailable
