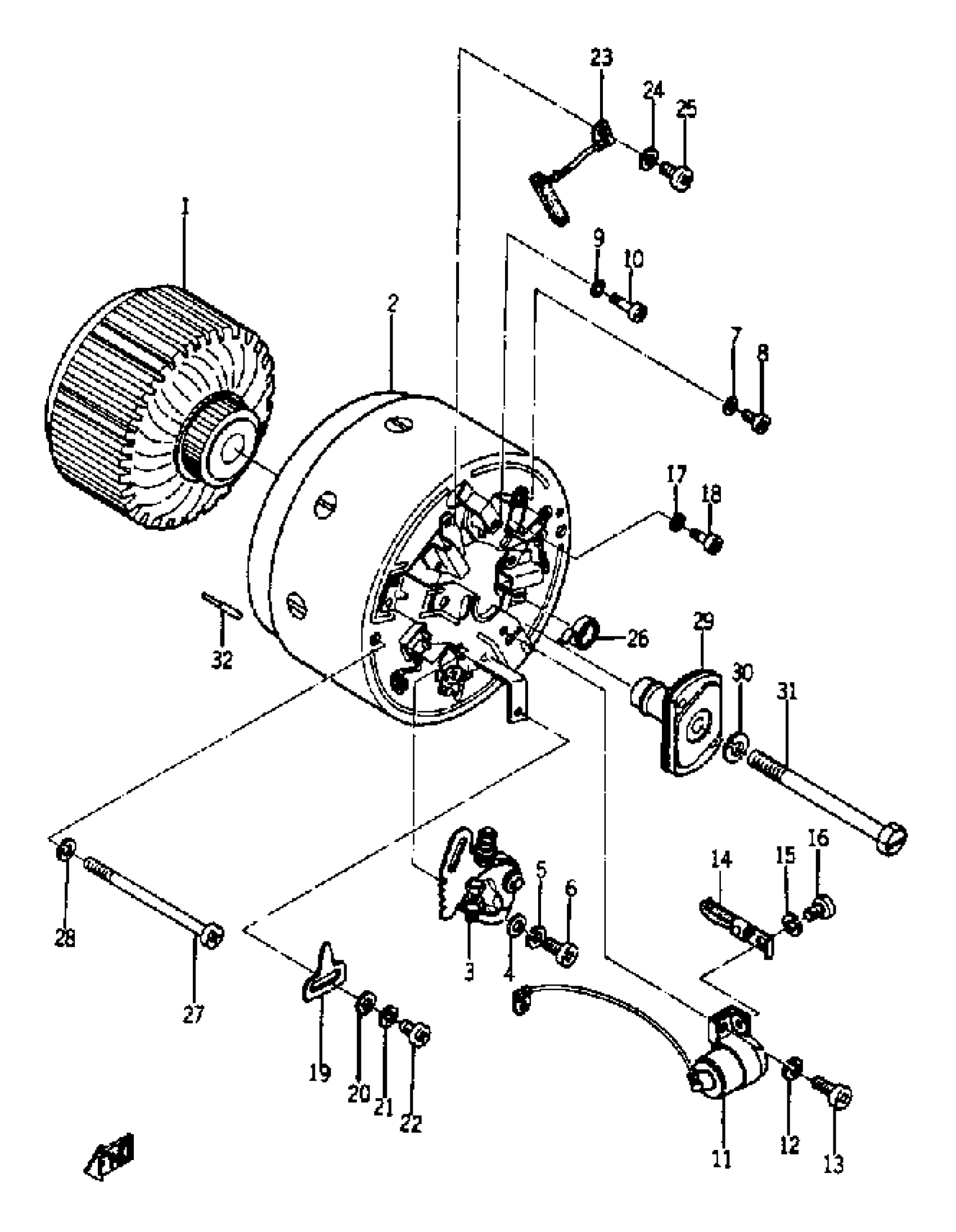

Yamaha YA6 (YA6_66) 137 1964 GENERATOR Diagram

#

Description
Price

1

ARMATURE

(141-81155-10-00)

Unavailable

1

STARTER GEN ASSEMBLY

(227-81100-10-00)

Unavailable

2

STATOR ASSEMBLY

(137-81110-10-00)

Unavailable

3

.. CONTACT BRKR ASSEMBLY

132-81221-10-00

Unavailable

4

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

7

WASHER, SPRING

92990-03100-00

$8.49

8

SCREW, PAN HEAD

(92501-03008-00)

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

SCREW

92503-05008-00

Unavailable

11

CNDSR 2

278-81625-91-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

14

LUBRICATOR

(141-81131-10-00)

Unavailable

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

16

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

18

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

19

PLATE, TIMING

(137-81132-10-00)

Unavailable

20

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

21

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

22

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

23

.. BRUSH

141-81111-10-00

Unavailable

24

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

25

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

26

. SPRING, BRUSH

141-81113-10-00

Unavailable

27

SCREW, STATOR

(136-81135-10-00)

Unavailable

28

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

29

GOVERNOR ASSEMBLY

(141-81153-10-00)

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

31

BOLT

(141-81152-10-00)

Unavailable

32

PIN, DOWEL

93603-14026-00

Unavailable
