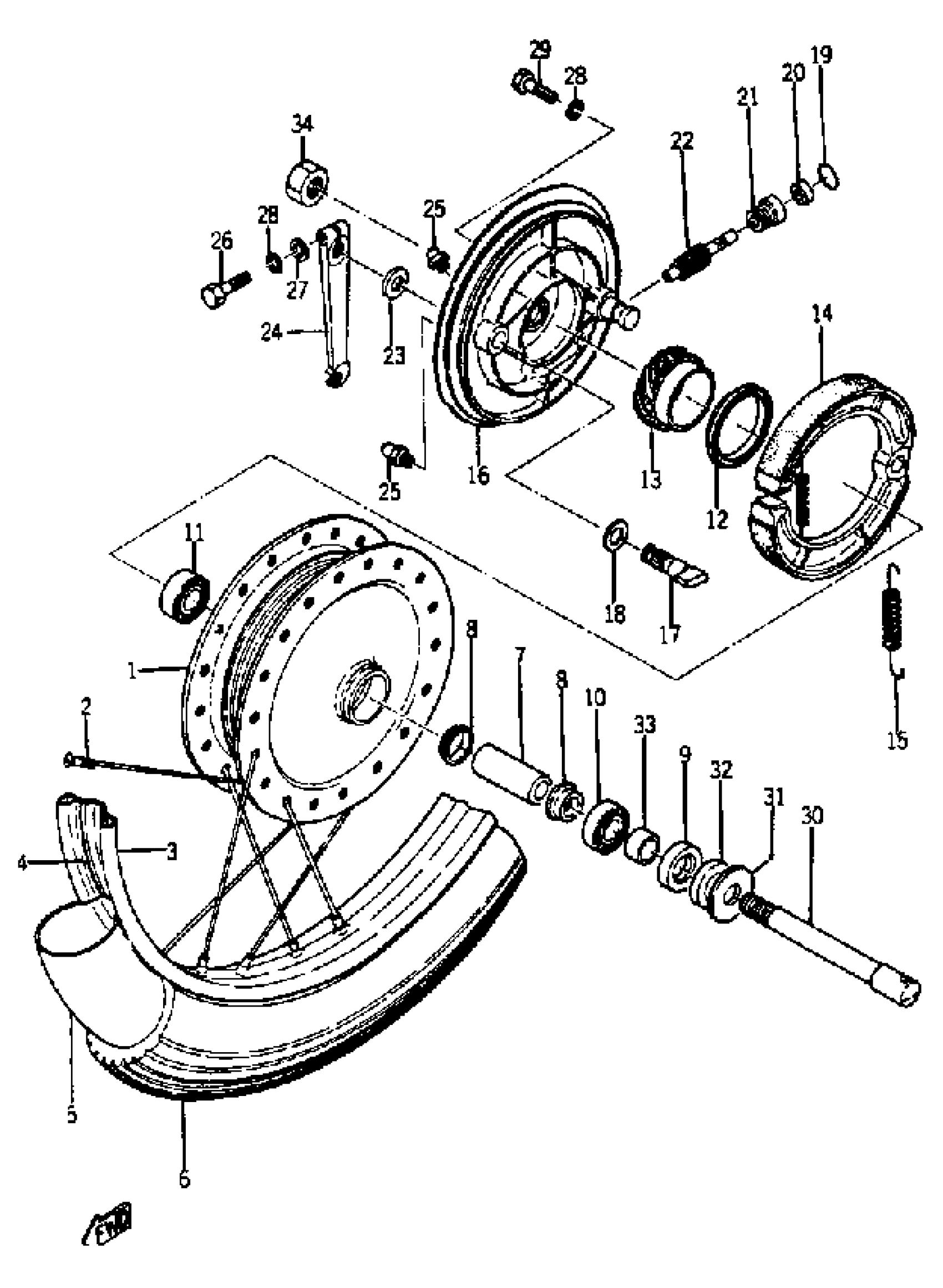

Yamaha YA6 (YA6_66) 137 1964 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

136-25111-02-00

Unavailable

1

LEVER, CAM SHAFT

137-25155-00-00

$27.52

2

SPOKE SET, FRONT

136-25104-00-00

Unavailable

3

RIM

94416-16002-00

Unavailable

4

BAND, RIM

94330-16058-00

$17.33

5

TUBE

94230-16011-00

Unavailable

6

300X16 YOKOHAMA

94130-16029-00

Unavailable

7

SPACER(1ET)

90560-15290-00

$17.06

8

FLANGE, SPACER

146-25116-00-00

$7.59

9

OIL SEAL (20X35X7-136)

93102-20009-00

$8.69

10

BRG, R-B (7H4)

93306-20211-00

$21.02

11

BEARING(3DL)

93306-20226-00

$32.48

12

OIL SEAL, OS-TYPE

93107-48002-00

Unavailable

13

GEAR, DRIVE

135-25135-00-00

Unavailable

14

BRAKE SHOE KIT

3GW-W253A-00-00

$109.99

15

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

16

PLATE, BRAKE SHOE

137-25121-01-00

Unavailable

17

CAMSHAFT

136-25151-01-00

Unavailable

18

WASHER PLATE 341251470000

90201-25286-00

Unavailable

19

O-RING (26H)

93210-14579-00

Unavailable

20

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

21

BUSHING

109-25136-00-00

Unavailable

22

GEAR, METER

136-25138-00-00

Unavailable

23

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

24

LEVER, CAMSHAFT 1

136-25155-00-00

Unavailable

25

NIPPLE, GREASE

93700-06M03-00

$6.77

26

BOLT(3DM)

97024-06020-00

Unavailable

27

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

28

WASHER, SPRING

92995-06100-00

$2.83

29

BOLT, HEXAGON

97017-06025-00

Unavailable

30

AXLE, WHEEL

141-25181-00-00

Unavailable

31

COVER, PLATE

136-25127-00-00

Unavailable

32

SEAL, PLATE DUST

136-25129-00-00

Unavailable

33

COLLAR

90387-157G5-00

Unavailable

34

NUT(6TC)

95337-14600-00

Unavailable
