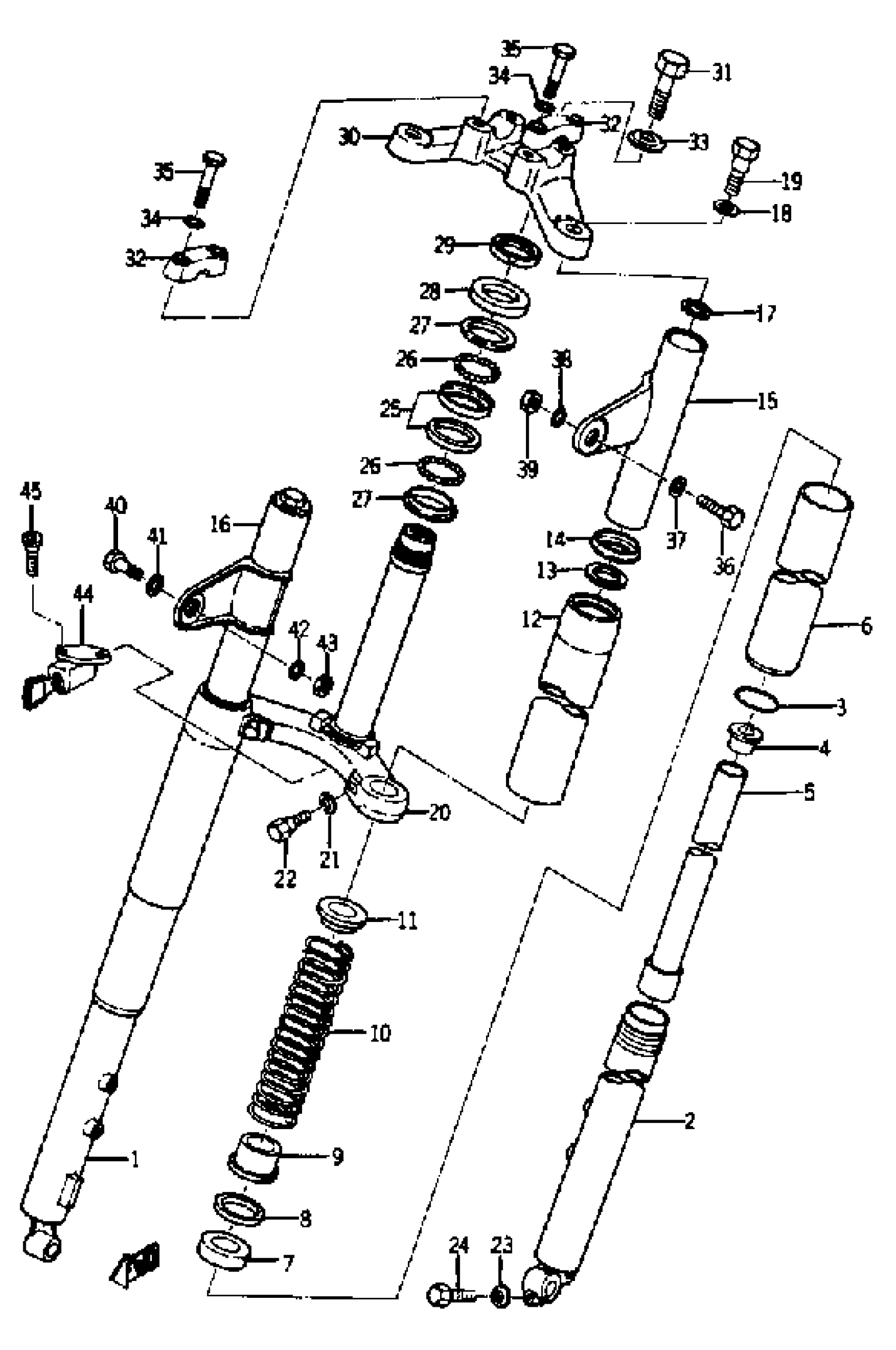

Yamaha YA6 (YA6_66) 137 1964 FRONT FORK Diagram

#

Description

Price

1

. TUBE, OUTER 2

(137-23136-60-81)

Unavailable

2

. TUBE, OUTER 1

(137-23126-60-81)

Unavailable

3

. O-RING

137-23147-00-00

Unavailable

4

. METAL, SLIDE 1

(137-23125-01-00)

Unavailable

5

. TUBE, INNER 1

(137-23124-00-00)

Unavailable

6

. OUTER NUT

(137-23150-00-00)

Unavailable

7

OIL SEAL

137-23145-01-00

$44.99

8

. WASHER, OIL SEAL

(137-23146-00-00)

Unavailable

9

. SEAT, SPRING LOWER

(137-23143-00-00)

Unavailable

10

. SPRING, FRONT FORK

(137-23141-00-00)

Unavailable

11

. SEAT, SPRING UPPER

(137-23142-00-00)

Unavailable

13

. GASKET

(437-23163-00-00)

Unavailable

14

. GUIDE, COVER LOWER

(137-23116-00-00)

Unavailable

17

. GASKET

(137-23114-00-00)

Unavailable

18

. WASHER, CAP

(137-23112-00-00)

Unavailable

19

. BOLT, CAP

(137-23111-00-00)

Unavailable

21

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

22

BOLT 1

122-23346-02-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

24

BOLT, HEXAGON

97013-08030-00

Unavailable

25

RACE, BALL 2

B6E-23412-00-00

Unavailable

26

BALL

93501-04011-00

Unavailable

27

RACE, BALL 1

B6E-23411-00-00

Unavailable

28

COVER, BALL RACE

136-23415-00-00

Unavailable

29

NUT

90179-25004-00

Unavailable

30

CROWN, HANDLE

(137-23435-01-00)

Unavailable

31

BOLT 1222345100

90105-10006-00

Unavailable

32

HOLDER, HANDLE UPR

(137-23441-00-00)

Unavailable

32

HOLDER, HANDLE UPR 002

(137-23441-01-00)

Unavailable

33

WASHER, PLATE

(90201-10147-00)

Unavailable

34

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

34

WASHER, SPRING

92995-06100-00

Unavailable

35

BOLT(3RV)

97014-06035-00

Unavailable

35

BOLT

97013-08035-00

Unavailable

36

BOLT, HEXAGON

97013-08030-00

Unavailable

37

WASHER, PLAIN

92990-08200-00

Unavailable

38

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

39

. NUT

95380-08700-00

Unavailable

40

BOLT, HEXAGON

97013-08030-00

Unavailable

41

WASHER, PLAIN

92990-08200-00

Unavailable

42

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

43

. NUT

95380-08700-00

Unavailable

44

STEERING LOCK ASSEMBLY

(137-23480-00-00)

Unavailable

45

SCREW, FLAT

98707-06014-00

Unavailable
