- YA6 (YA6_66) 137 1964
CRANKCASE COVER

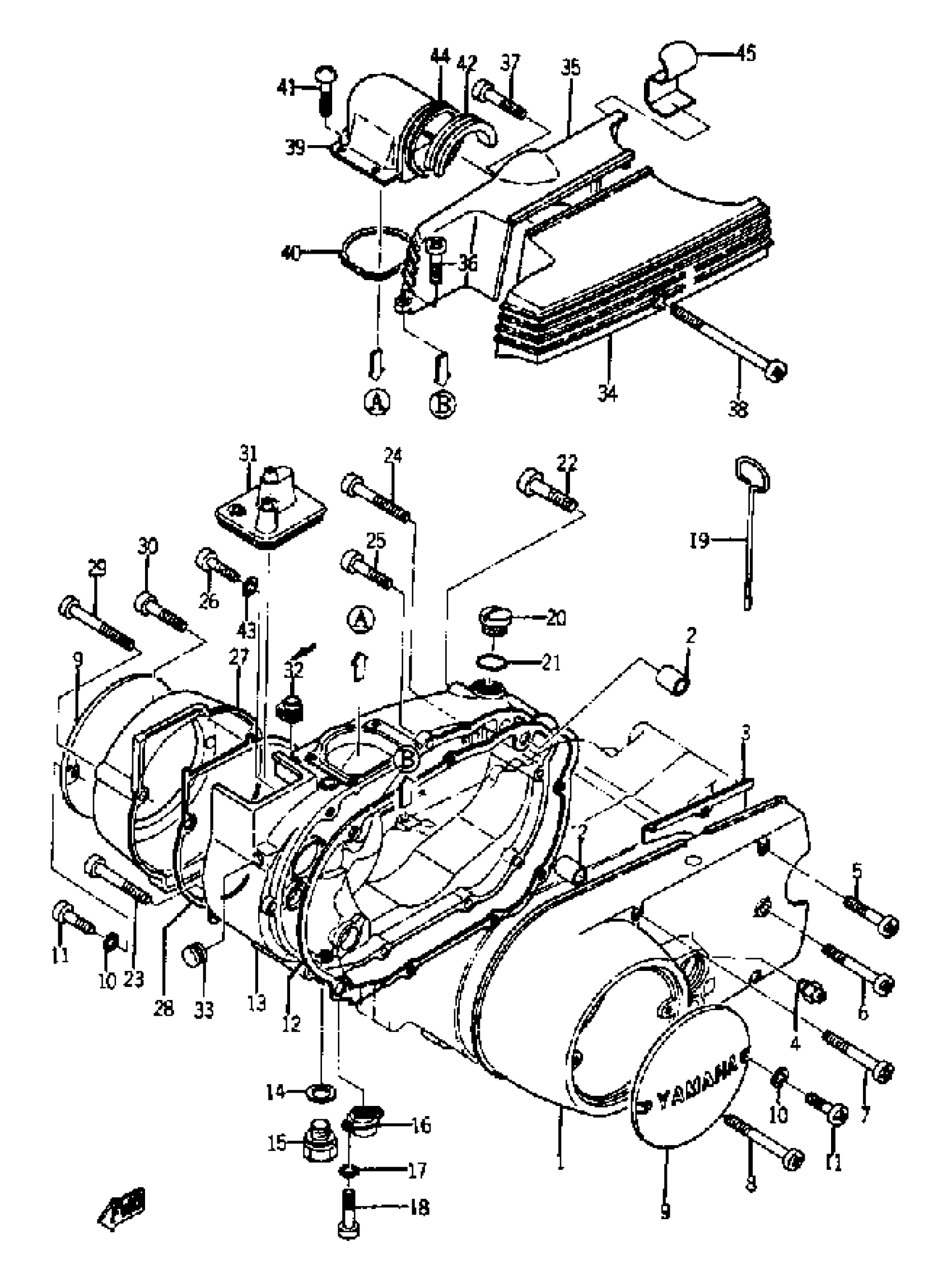

Yamaha YA6 (YA6_66) 137 1964 CRANKCASE COVER Diagram
#
1
CRCS COVER ASSEMBLY L
(372-15410-00-00)
Unavailable
2
PIN, DOWEL(3VD)
99530-10114-00
$2.55
3
COVER, CHAIN CASE
(137-15418-00-00)
Unavailable
4
NIPPLE, GREASE
93700-06M03-00
Unavailable
5
SCREW PAN HEAD
98580-06040-00
$8.49
6
SCREW PAN HEAD
98580-06550-00
$8.49
7
SCREW PAN HEAD
98580-06545-00
$5.60
8
SCREW, PANHED (GC2)
98580-06555-00
Unavailable
9
COVER,GENERATOR
372-15415-00-00
Unavailable
10
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
11
SCREW, PAN HEAD
(92503-04012-00)
Unavailable
12
GASKET, CRCS COVER
(137-15451-00-00)
Unavailable
13
COVER, CRANKCASE R
(137-15421-04-00)
Unavailable
14
WASHER, PROTECTOR
4F4-14766-00-00
$6.99
15
PLUG, STRAIGHT SCREW
90340-14119-00
Unavailable
16
CLEANER, DRAIN
(126-15433-00-00)
Unavailable
17
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
18
SCREW, PAN HEAD
(92503-04008-00)
Unavailable
19
GAUGE, LEVEL
(137-15361-00-00)
Unavailable
20
PLUG, OIL
116-15363-00-00
Unavailable
20
PLUG, OIL
(137-15363-00-00)
Unavailable
21
O-RING (137)
93210-13016-00
Unavailable
21
O-RING
(93210-22028-00)
Unavailable
22
SCREW PAN HEAD
98580-06575-00
Unavailable
23
SCREW, PAN HEAD
98580-06580-00
Unavailable
24
SCREW, BIND (JH1)
98580-06560-00
Unavailable
25
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
26
SCREW, PAN HEAD(6H4)
97885-06035-00
Unavailable
27
COVER, CARBURETOR
(137-15413-02-00)
Unavailable
28
GASKET, CARB COVER
(137-15453-01-00)
Unavailable
29
SCREW PAN HEAD
98580-06550-00
$8.49
30
SCREW, PAN
98507-06014-00
Unavailable
31
CAP, CARBURETOR
(137-14481-00-00)
Unavailable
32
GROMMET
90480-12095-00
Unavailable
33
GROMMET 122154860000
90480-12012-00
Unavailable
36
SCREW, FITTING
(137-15444-00-00)
Unavailable
37
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
38
SCREW, PAN HEAD
(92501-06150-00)
Unavailable
39
DUCT, AIR
(137-15471-00-00)
Unavailable
40
SEAL, AIR DUCT
(137-15472-00-00)
Unavailable
41
SCREW
92503-05008-00
Unavailable
42
SEAL, CLEANER COVER
(137-15434-00-00)
Unavailable
43
GASKET
90430-06017-00
Unavailable
44
JOINT
(137-14454-00-00)
Unavailable
45
CLAMP
(90461-04010-00)
Unavailable
