Description

Price

1

CRANKCASE 1

(137-15111-02-00)

Unavailable

2

CRANKCASE 2

(137-15121-01-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

5

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

6

SCREW PAN HEAD

98580-06570-00

$18.99

7

SCREW, PAN

98504-06090-00

$4.14

8

SCREW PAN HEAD

98580-06040-00

$8.49

9

BOLT, STUD

90116-08079-00

Unavailable

10

GASKET, CYLINDER

137-11351-00-00

Unavailable

11

CYLINDER 1

(137-11311-00-00)

Unavailable

12

GASKET, CYLINDER HEAD 1

137-11181-01-00

Unavailable

13

HEAD, CYLINDER 1

(137-11111-12-00)

Unavailable

14

WASHER, PLAIN

92990-08200-00

Unavailable

15

NUT(6L2)

95333-08600-00

$2.49

16

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

17

PLUG, STRAIGHT SCREW

90340-14119-00

Unavailable

18

PLUG, SPEC''L SHAPE

90338-19047-00

Unavailable

19

O-RING

(93211-19064-00)

Unavailable

20

COVER, VALVE

(137-13551-01-00)

Unavailable

21

PIN,DOWEL (137)

93604-14012-00

Unavailable

22

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

23

OIL SEAL (28X47X8-137)

93103-28012-00

Unavailable

24

O-RING (137)

93210-12014-00

Unavailable

25

O-RING (137)

93210-26033-00

Unavailable

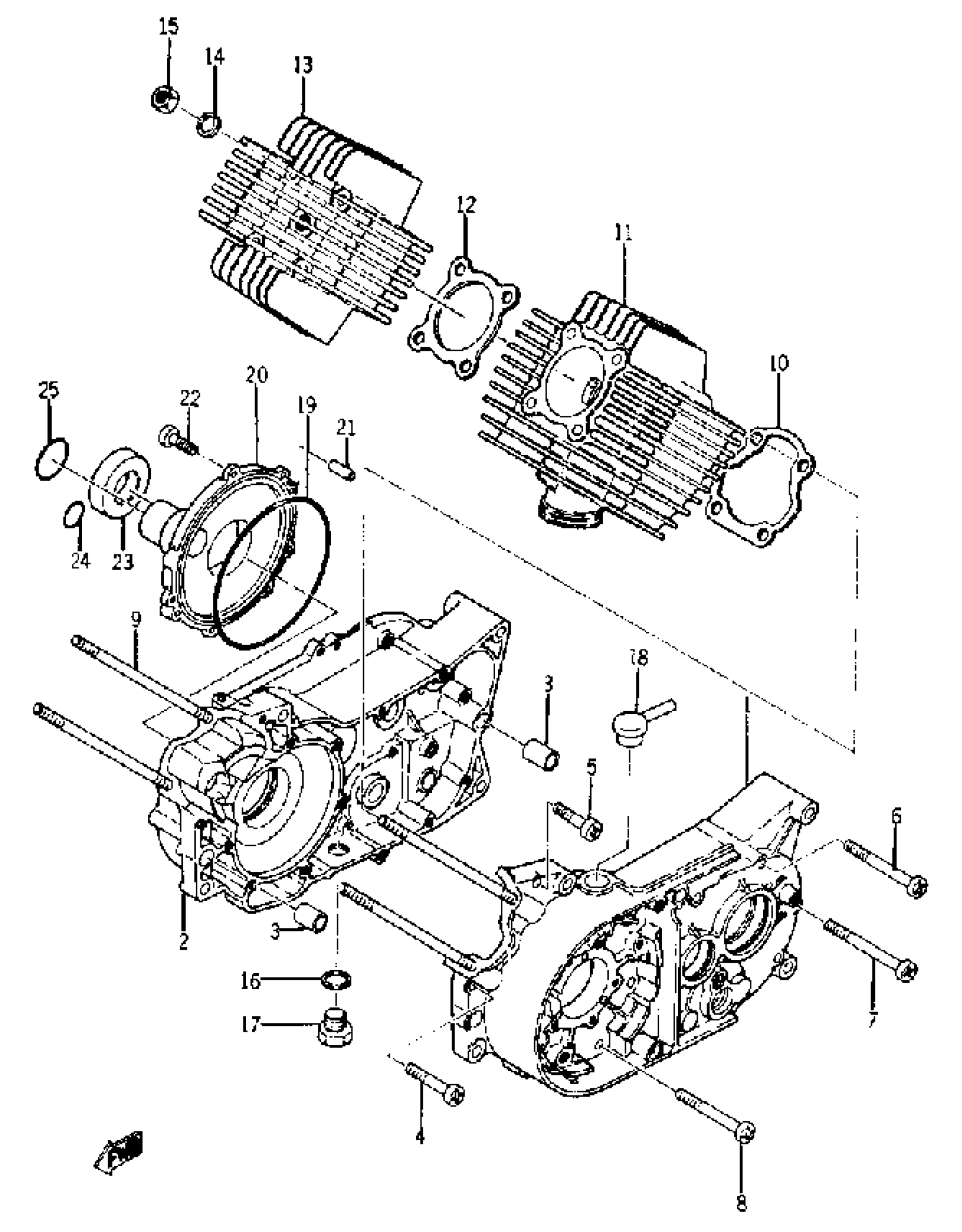

Yamaha YA6 (YA6_66) 137 1964 CRANKCASE Diagram

CRANKCASE 1

CRANKCASE 2

PIN, DOWEL

SCREW, PAN HEAD(6H4)

SCREW, PAN HEAD (76T)

SCREW PAN HEAD

SCREW, PAN

SCREW PAN HEAD

BOLT, STUD

GASKET, CYLINDER

CYLINDER 1

GASKET, CYLINDER HEAD 1

HEAD, CYLINDER 1

WASHER, PLAIN

NUT(6L2)

WASHER, PROTECTOR

PLUG, STRAIGHT SCREW

PLUG, SPEC''L SHAPE

O-RING

COVER, VALVE

PIN,DOWEL (137)

SCREW, PAN HEAD(6E5)

OIL SEAL (28X47X8-137)

O-RING (137)

O-RING (137)
