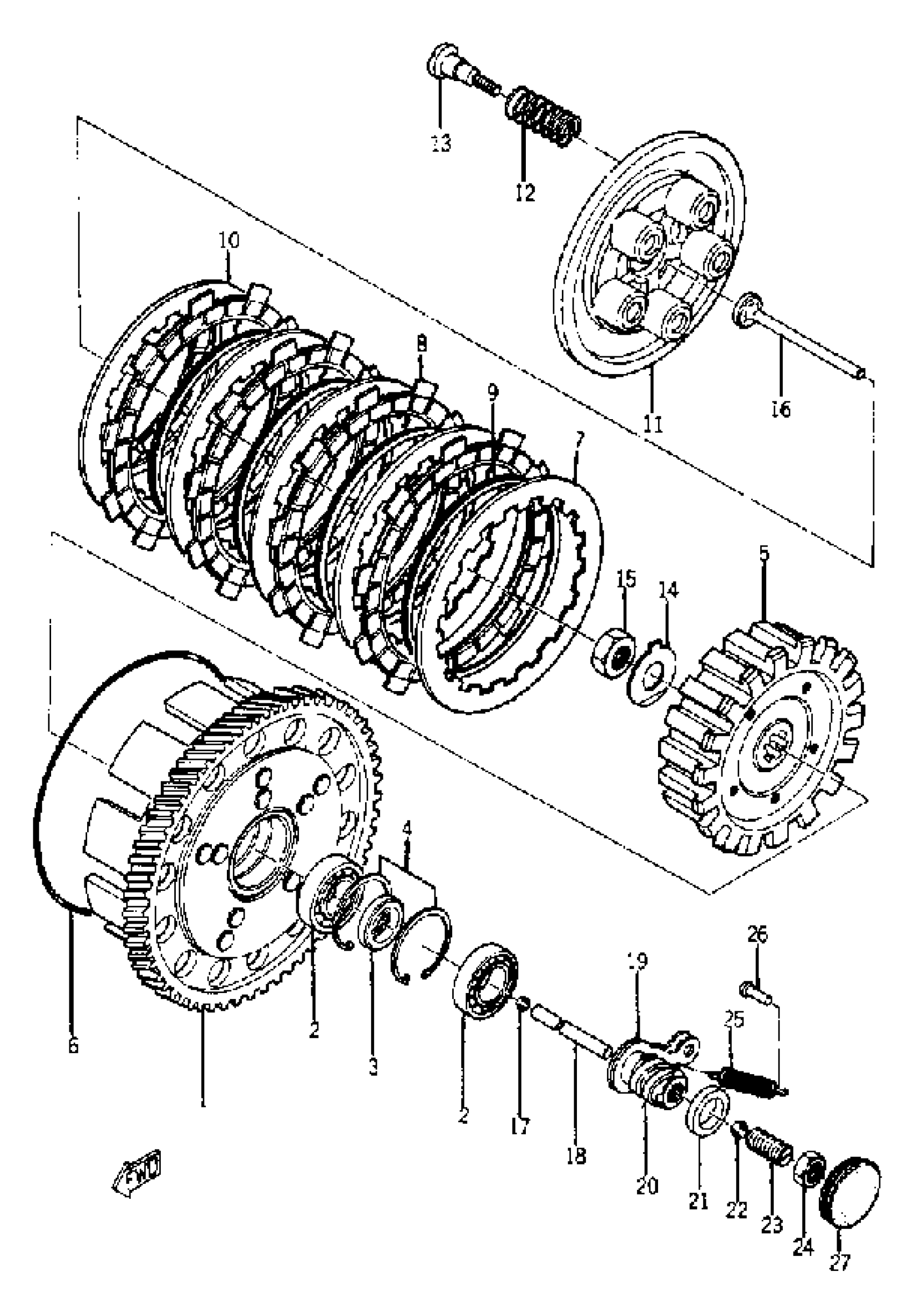

Yamaha YA6 (YA6_66) 137 1964 CLUTCH Diagram
#
1
CLUTCH ASSEMBLY
(137-16301-00-00)
Unavailable
1
PRI DRVN GEAR
(227-16150-01-00)
Unavailable
2
BEARING(2JN)
93306-00315-00
$33.99
3
SPACER 1
(137-16181-00-00)
Unavailable
4
CIRCLIP, R-TYPE
(93420-35004-00)
Unavailable
5
BOSS, CLUTCH
(137-16371-01-00)
Unavailable
6
. O-RING
93211-08068-00
Unavailable
7
. PLATE, CLUTCH 2
137-16325-00-00
Unavailable
8
PLATE, FRICTION
3HA-16321-00-00
$31.99
9
RING, CUSHION
137-16367-00-00
$17.49
10
PLATE, CLUTCH 1
336-16324-10-00
$18.49
11
PLATE, PRESSURE
132-16351-00-00
$55.99
12
SPRING COMPRESSION137163336000
90501-20124-00
$8.49
13
SCREW, SPECL SHAPE
(90149-05147-00)
Unavailable
14
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
15
NUT, HEXAGON 1371637700
90170-12060-00
Unavailable
16
ROD,PUSH (1)
137-16356-00-00
Unavailable
17
BALL
93501-04011-00
Unavailable
18
ROD, PUSH 2
137-16357-00-00
Unavailable
19
LEVER, PUSH
(137-16342-00-00)
Unavailable
20
SCREW, PUSH
(137-16341-00-00)
Unavailable
21
OIL SEAL (15.3X22X7-136)
93108-15001-00
Unavailable
22
BALL
93505-16006-00
Unavailable
23
BOLT, SET
(90113-10026-00)
Unavailable
24
NUT(3BM)
95314-10600-00
Unavailable
25
SPRING, TENSION
90506-10020-00
Unavailable
26
HOOK, SPRING
132-16346-00-00
Unavailable
27
COVER, CAP
(137-15417-00-00)
Unavailable
