CARBURETOR

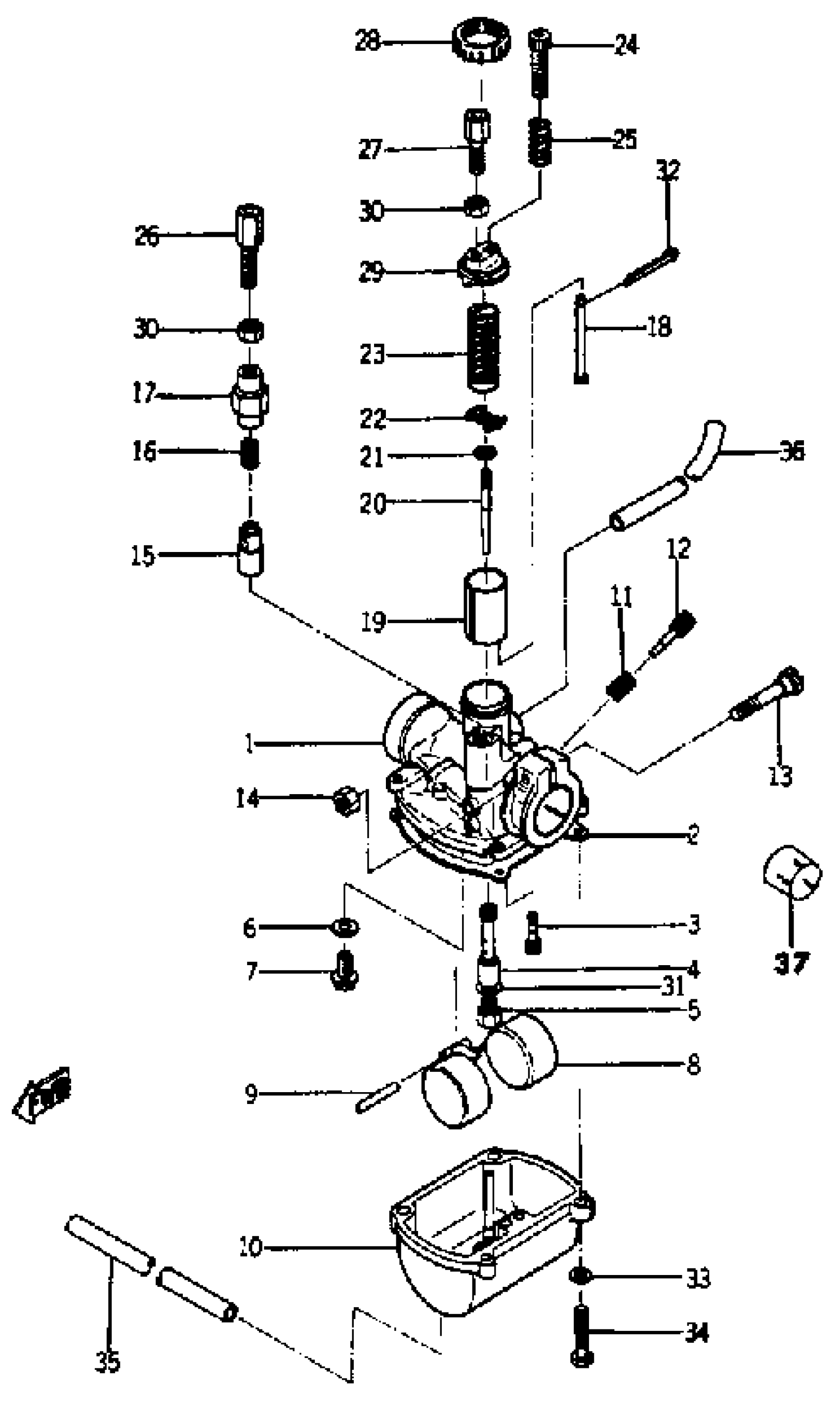

Yamaha YA6 (YA6_66) 137 1964 CARBURETOR Diagram
#
1
JET, MAIN #200
137-14143-40-A1
$13.49
1
CARBURETOR ASSEMBLY 1
(227-14101-01-00)
Unavailable
2
JET, MAIN #210
137-14143-42-A1
Unavailable
2
. GASKET, FLOAT CHMBR
137-14184-00-00
Unavailable
3
JET, PILOT #30
(127-14142-30-00)
Unavailable
3
JET, MAIN #220
137-14143-44-A1
$11.99
4
NOZZLE, MAIN
(137-14141-30-00)
Unavailable
4
JET, MAIN #230
137-14143-46-A1
$13.49
5
JET,MAIN #190
137-14143-38-A0
Unavailable
6
WASHER, VALVE SEAT
127-14195-00-00
$7.99
7
. NEEDLE VALVE ASSEMBLY
137-14190-20-00
Unavailable
8
FLOAT
(137-14185-00-00)
Unavailable
9
PIN, FLOAT
127-14186-00-00
$6.65
10
BODY, FLOAT CHMBR 1
(137-14181-00-00)
Unavailable
11
. SPRING, AIR ADJUSTING
137-14134-00-00
Unavailable
12
SCREW, AIR ADJUSTING
137-14123-00-00
Unavailable
13
SCREW, BODY FITTING
(137-14125-00-00)
Unavailable
14
NUT, HOLDING
(137-14164-00-00)
Unavailable
15
PLUNGER, STARTER
58E-14171-00-00
Unavailable
16
SPRING, PLUNGER
(137-14135-00-00)
Unavailable
17
CAP, PLUNGER
127-14174-00-00
Unavailable
18
BAR, THROTTLE
(137-14114-00-00)
Unavailable
19
VALVE, THROTTLE 1
(137-14112-25-00)
Unavailable
20
NEEDLE
(166-14116-06-00)
Unavailable
21
CLIP
137-14137-00-00
Unavailable
22
. SEAT, SPRING
137-14136-00-00
Unavailable
23
SPRING, THRTL VALVE
(137-14131-00-00)
Unavailable
24
SCREW, THRTL STOP
(127-14121-00-00)
Unavailable
25
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
26
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
27
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
28
CAP, MIXING CHAMBER
(137-14168-00-00)
Unavailable
29
TOP, MIXING CHAMBER
(137-14158-00-00)
Unavailable
30
BODY, FLOAT CHMBR 1
(127-14181-00-00)
Unavailable
31
WASHER,MAIN JET
137-14153-00-00
Unavailable
32
. PIN, COTTER
91401-10015-00
Unavailable
33
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
34
SCREW,PAN HEAD
92503-04015-00
Unavailable
35
PIPE, OVERFLOW
(137-14196-00-00)
Unavailable
36
HOSE (L200)
90445-05N13-00
Unavailable
37
GASKET, INSULATING
(137-14156-00-00)
Unavailable
