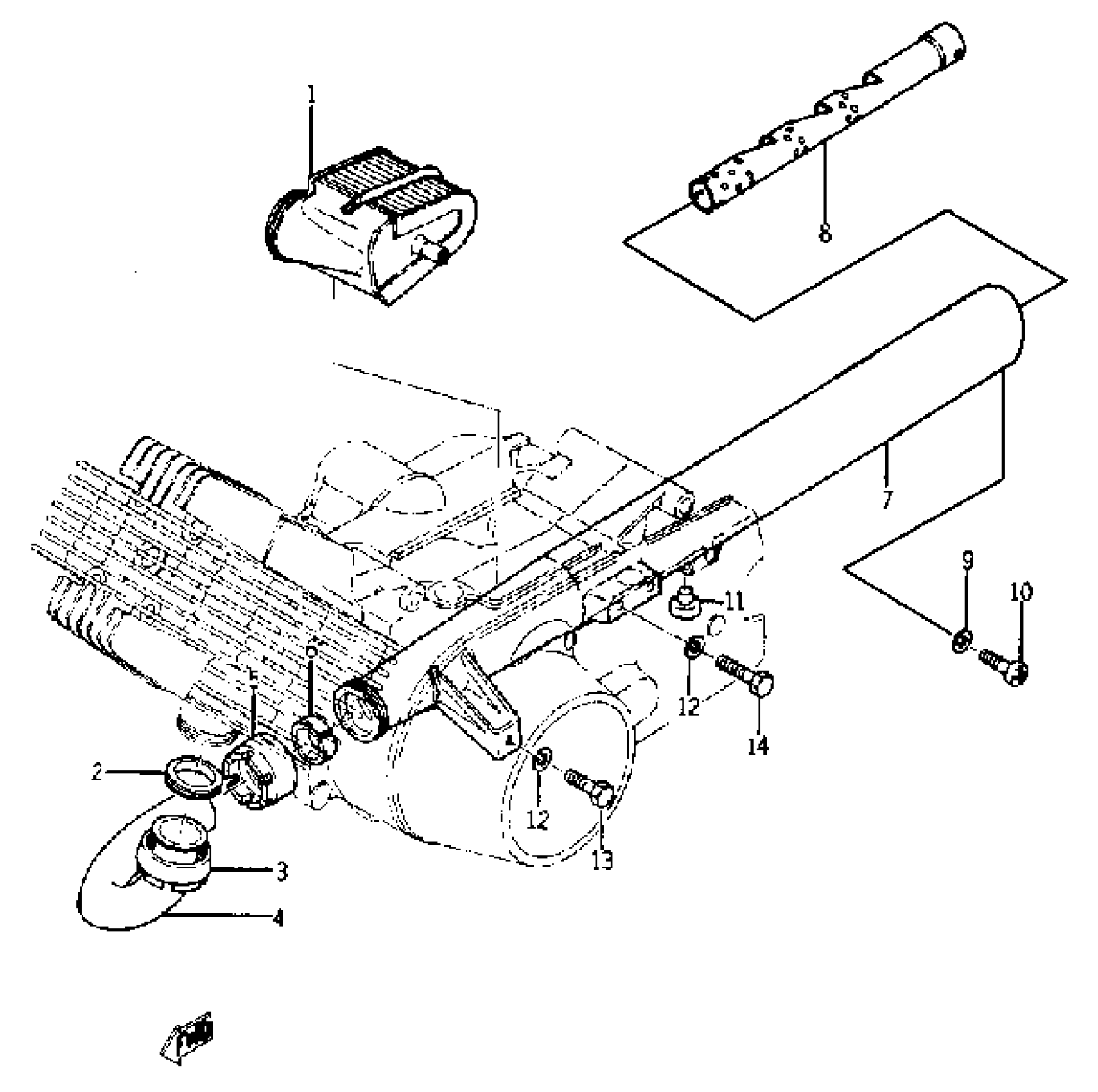

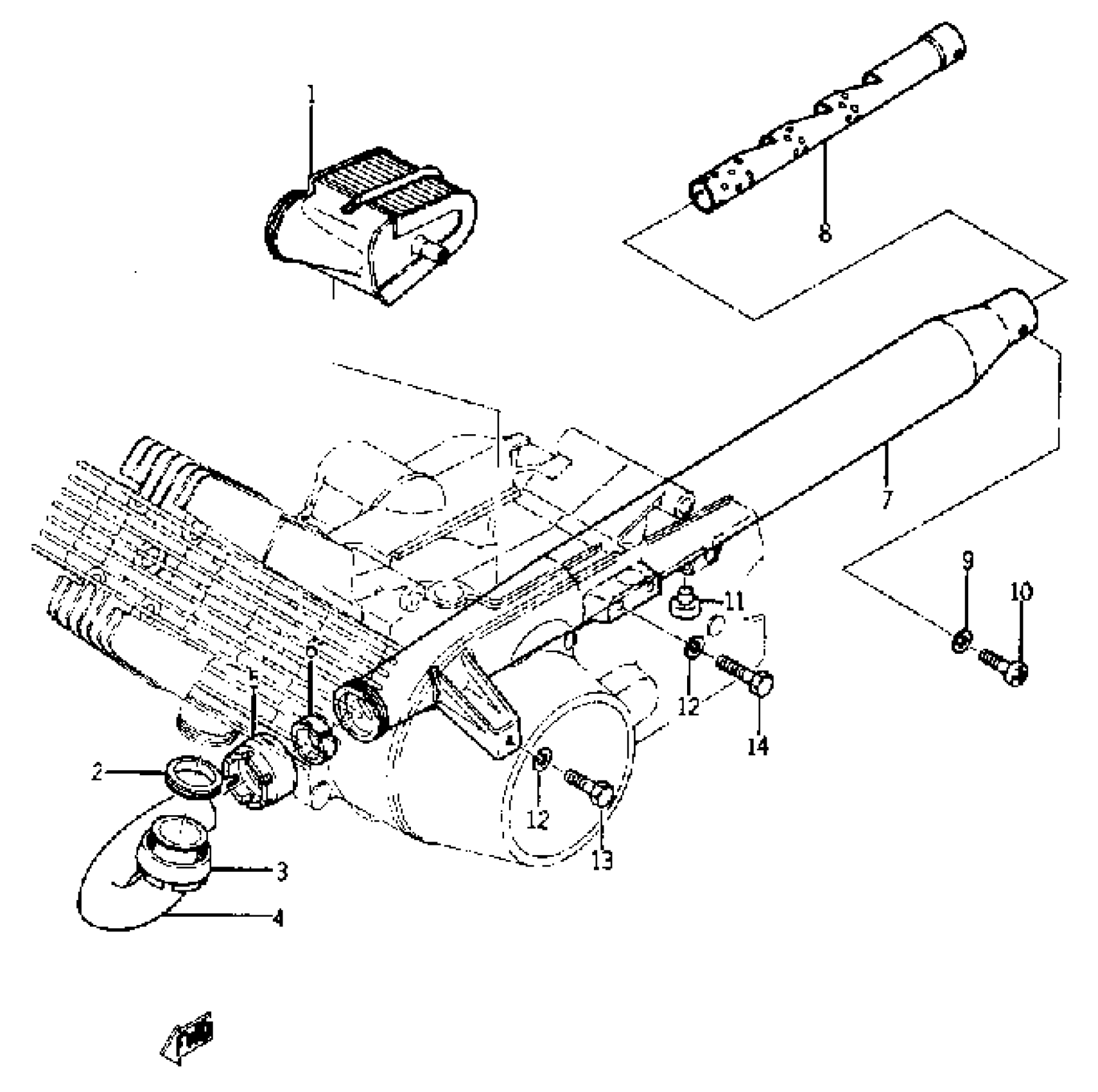

Yamaha YA6 (YA6_66) 137 1964 AIR CLEANER - MUFFLER Diagram

#

Description
Price

1

ELEMENT, AIR CLNR

(137-14451-00-00)

Unavailable

1

MUFFLER ASSEMBLY L 001

(137-14710-00-00)

Unavailable

2

GASKET, EXHAUST PIPE

3PA-14613-10-00

$12.08

3

NUT, RING

(157-14612-00-00)

Unavailable

4

PIPE, EXHAUST L

(137-14611-00-00)

Unavailable

5

NUT, MUFFLER JOINT

(137-14713-00-00)

Unavailable

6

GASKET, MUFFLER

(137-14714-60-00)

Unavailable

7

MUFFLER ASSEMBLY L 001

(137-14710-00-00)

Unavailable

8

SILENCER, EXHAUST

(156-14753-00-00)

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

10

SCREW

92503-05008-00

Unavailable

11

STOPPER

1M3-27114-00-00

$7.54

12

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

13

BOLT(JA9)

90101-08691-00

$4.65

14

BOLT (682)

97013-08025-00

$6.34
