STAND FOOTREST

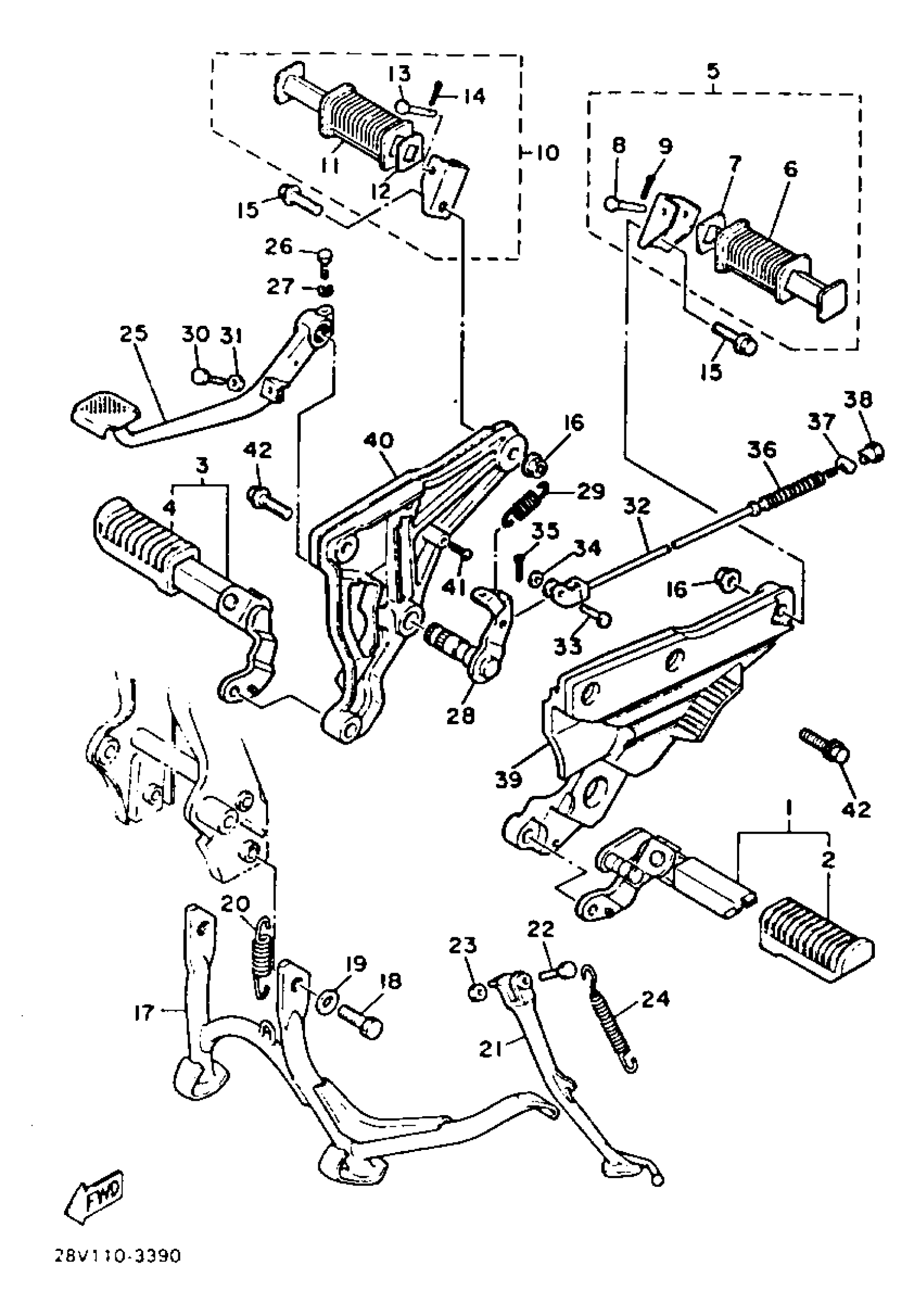

Yamaha XZ550RK (XZ550RK) 1983 STAND FOOTREST Diagram
#
1
FRONT FOOTREST ASS''Y (L.H)
28V-27410-00-R4
Unavailable
3
FRONT FOOTREST ASS''Y (R.H)
11U-27420-00-R4
Unavailable
5
RR FOOTREST ASY 1
4G0-27430-00-00
Unavailable
6
COVER, REAR FOOTREST
447-27433-00-00
Unavailable
8
PIN, WITH HOLE (465)
90240-06042-00
Unavailable
9
PIN, COTTER
91490-16020-00
Unavailable
10
REAR FOOTREST ASS''Y 2
4G0-27440-00-00
Unavailable
11
COVER, REAR FOOTREST
447-27433-00-00
Unavailable
13
PIN, WITH HOLE (465)
90240-06042-00
Unavailable
14
PIN, COTTER
91490-16020-00
Unavailable
16
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
17
STAND, main
[11-H2711-10-0R
Unavailable
18
BOLT,HEXAGON
97017-10016-00
Unavailable
19
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
20
SPRING, tension
90506-40256-00
Unavailable
21
STAND, side
28V-27311-00-R4
Unavailable
22
BOLT
90109-10473-00
Unavailable
23
NUT (682)
95380-10700-00
Unavailable
24
SPRING (460)
90507-29009-00
Unavailable
25
PEDAL, brake
11U-27211-00-93
Unavailable
26
BOLT (1J7)
90109-06468-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
SHAFT, brake pedal
[11-H2721-20-00
Unavailable
29
SPRING, tension
90506-18319-00
Unavailable
30
SCREW 341272170000
90153-06008-00
Unavailable
31
NUT, HEXAGON (371 447)
90170-06184-00
Unavailable
32
ROD, BRAKE
11U-27231-00-00
Unavailable
33
PIN, clevis
90240-06079-00
Unavailable
34
WASHER(6TA)
92907-06200-00
Unavailable
35
PIN, COTTER
91490-20025-00
Unavailable
36
SPRING, COMPRESSION
90501-10609-00
Unavailable
37
PIN, SPEC''L SHAPE
90249-12150-00
Unavailable
38
NUT, SPEC''L SHAPE
90179-06324-00
Unavailable
39
BRACKET 2
[28-VW274-20-00
Unavailable
40
BRACKET 3
[28-VW274-30-00
Unavailable
41
HOOK 1
[4L-02744-E0-00
Unavailable
42
BOLT, FLANGE
95817-10020-00
Unavailable
