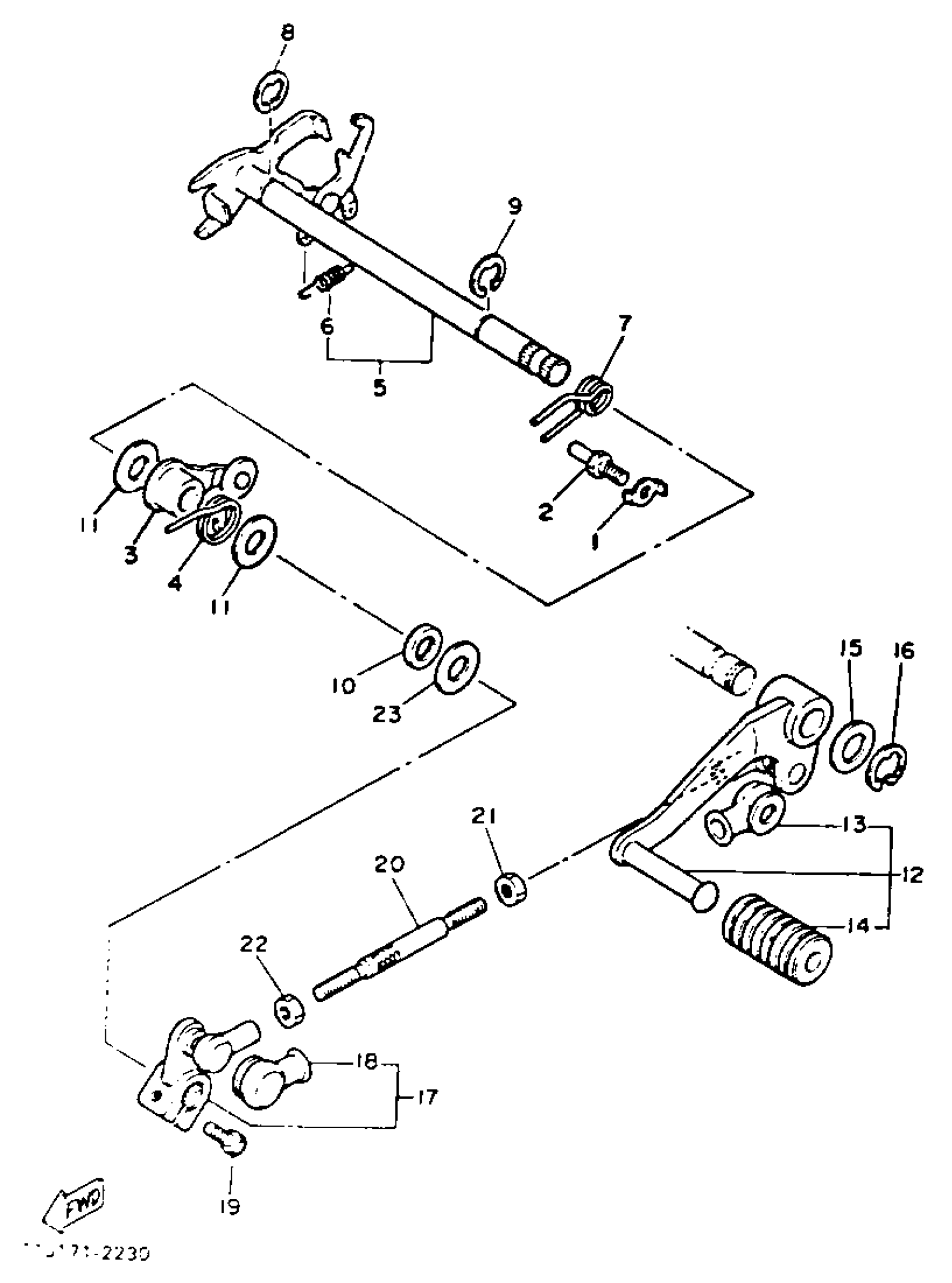

Yamaha XZ550RK (XZ550RK) 1983 SHIFT SHAFT Diagram

#

Description
Price

1

WASHER, LOCK (4G0)

90215-18178-00

Unavailable

2

STOPPER, SCREW

5VK-18127-00-00

Unavailable

3

STOPPER LEVER ASSEMBLY

11H-18140-00-00

Unavailable

4

SPRING, TORSION

90508-29519-00

Unavailable

5

SHIFT LEVER ASS''Y

[11-H1812-00-00

Unavailable

6

SPRING, TENSION (4H7)

90506-08227-00

$4.19

7

SPRING, TORSION (11H)

90508-32536-00

$11.49

8

CIRCLIP

99006-10600-00

$9.49

9

CIRCLIP

99006-10600-00

$9.49

10

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

11

WASHER

90201-12588-00

$7.49

12

SHIFT PEDAL ASS''Y

11H-18110-00-00

Unavailable

13

COVER, DUST

2H9-18154-00-00

$5.49

14

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

15

WASHER, PLATE (5K7)

90201-124E4-00

$9.49

16

CIRCLIP(10Y)

99009-12400-00

Unavailable

17

ARM, shift

[11-H1811-20-00

Unavailable

18

COVER, DUST

2H9-18154-00-00

$5.49

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

ROD, shift

11U-18115-00-00

Unavailable

21

NUT (2H9)

90170-06228-00

Unavailable

22

NUT(650)

95380-06700-00

Unavailable

23

WASHER, PLATE (353)

90201-12575-00

Unavailable
