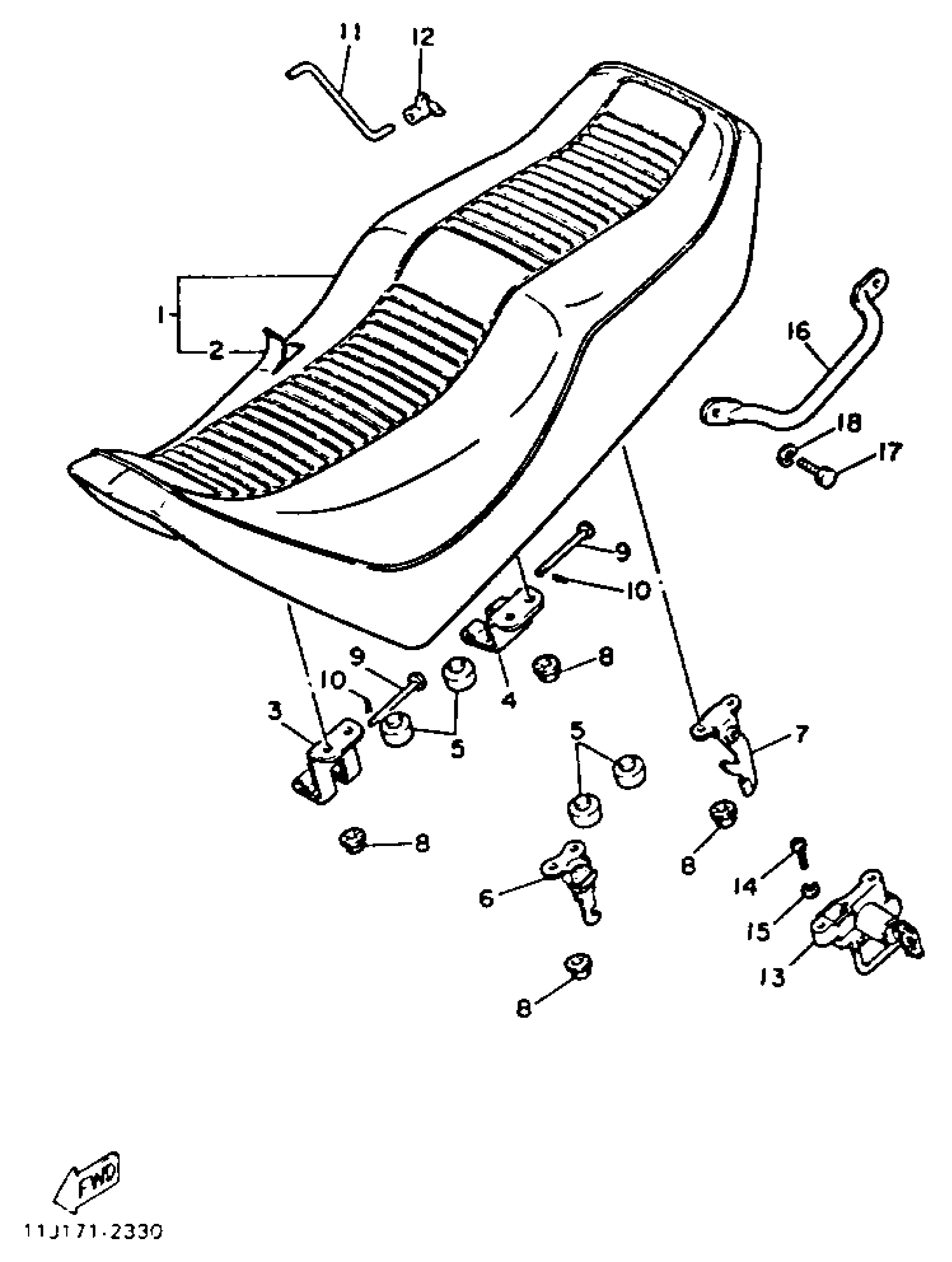

Yamaha XZ550RK (XZ550RK) 1983 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

(14X-W2472-00-00)

Unavailable

2

. COVER, seat

11H-24731-00-00

Unavailable

3

HINGE, seat

11-H2472-60-00

Unavailable

4

HINGE, seat

11-H2476-90-00

Unavailable

5

STOPPER, MAIN STAND

371-27114-00-00

$5.42

6

BRACKET, SEAT

4K0-24728-00-00

Unavailable

7

SEAT LEVER ASS''Y

4K0-24760-00-00

Unavailable

8

NUT, FLANGE(7NB)

95780-06500-00

$1.88

9

PIN, CLEVIS

91701-05055-00

$5.70

10

CLIP (156-83525-00)

90468-10050-00

$2.16

11

STOPPER

11H-24768-00-00

Unavailable

12

BRACKET, SEAT

1J7-24718-00-00

Unavailable

13

SEAT LOCK ASS''Y (11H-24705-00)

4K0-24705-00-00

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

15

WASHER, SPRING

92995-06100-00

$2.95

16

HANDLE, standing

11H-21165-00-00

Unavailable

17

BOLT, HEXAGON

97017-08016-00

Unavailable

18

WASHER(JN5)

92907-08100-00

Unavailable
