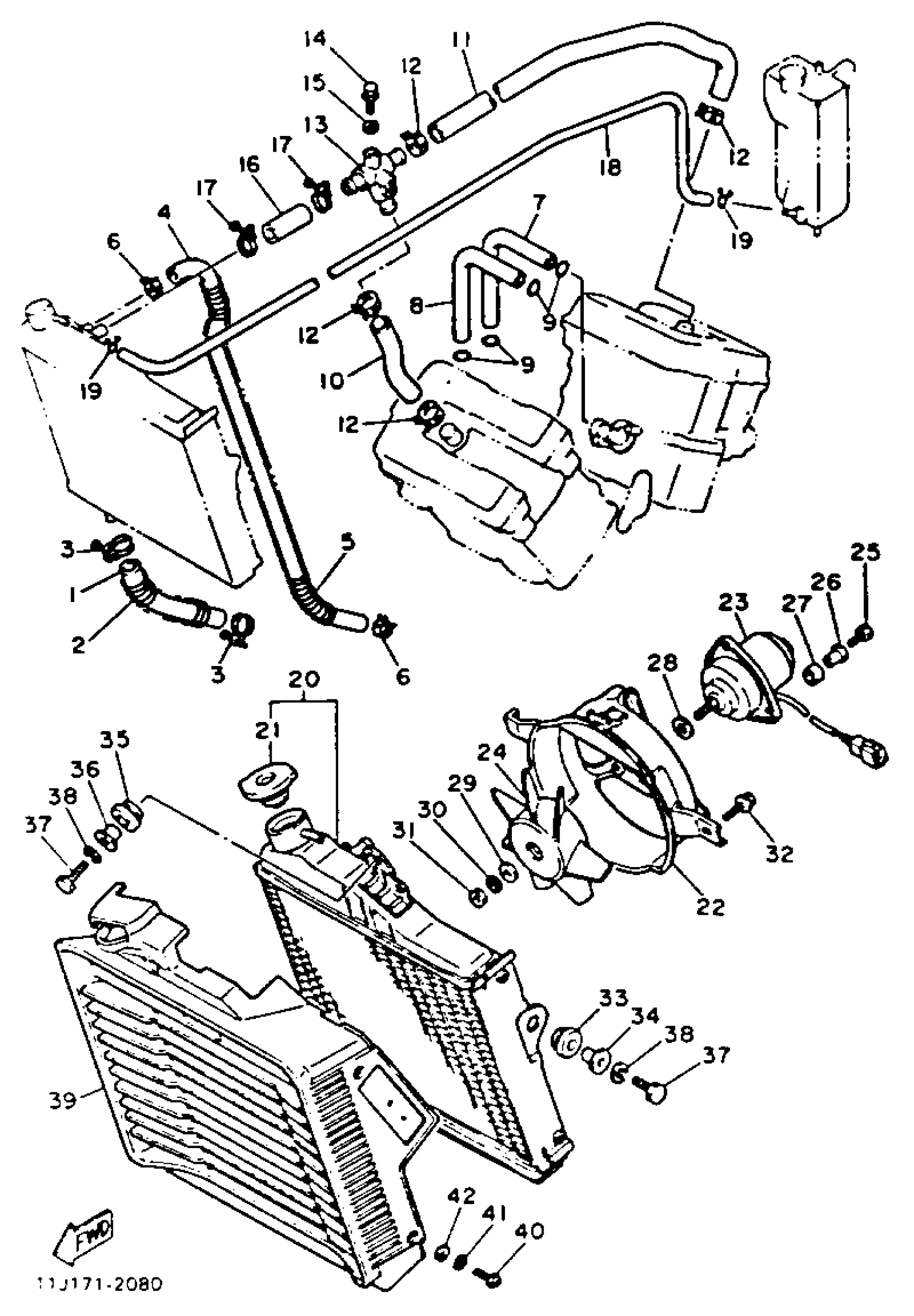

Yamaha XZ550RK (XZ550RK) 1983 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 1

11H-12481-01-00

Unavailable

2

COVER, WATER INLET

11H-12516-00-00

Unavailable

3

HOSE CLAMP ASSY

90450-32015-00

$17.99

4

PIPE 2

11H-12482-01-00

Unavailable

5

COVER, water by-pass

[11-H1252-70-00

Unavailable

6

CLIP (4V3)

90467-19051-00

$2.34

7

PIPE 4

11H-12484-00-00

Unavailable

8

PIPE 5

11H-12485-00-00

Unavailable

9

O-RING (716)

93210-18417-00

$7.49

10

PIPE 6

11H-12476-00-00

Unavailable

11

PIPE 7

[28-V1247-70-00

Unavailable

12

CLIP

90467-21068-00

$7.49

13

JOINT

(11H-12479-00-00)

Unavailable

14

BOLT, FLANGE(3HP)

95817-10016-00

$8.49

15

GASKET (5R6)

90430-10171-00

$3.18

16

HOSE 1

11H-12576-00-00

Unavailable

17

HOSE CLAMP ASSY

90450-32015-00

$17.99

18

HOSE 2

[11-H1257-70-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

RADIATOR ASS''Y

[11-H1246-10-00

Unavailable

21

CAP, RADIATOR

11H-12462-00-00

Unavailable

22

AIR SHROUD ASS''Y

[11-H1262-00-00

Unavailable

23

MOTOR ASS''Y

[11-H1263-00-00

Unavailable

24

FAN

[11-H1261-10-00

Unavailable

25

SCREW, motor holding

[11-H1264-70-00

Unavailable

26

COLLAR 1

[11-H1266-20-00

Unavailable

27

BUSH, rubber

[11-H1266-70-00

Unavailable

28

WASHER

[11-H1266-40-00

Unavailable

29

WASHER

11H-12673-00-00

Unavailable

30

WASHER, TOOTH

92990-05300-00

Unavailable

31

NUT, HEXAGON (663)

95380-05600-00

Unavailable

32

BOLT, WITH WASHER

90119-06242-00

Unavailable

33

GROMMET (4L0)

90480-18276-00

Unavailable

34

COLLAR 8111266500

90387-07037-00

Unavailable

35

GROMMET (4L0)

90480-19283-00

Unavailable

36

COLLAR(735)

90387-06033-00

Unavailable

37

BOLT, HEXAGON

97017-06020-00

Unavailable

38

WASHER, SPRING

92907-06100-00

Unavailable

39

COVER, radiator

11H-12467-02-00

Unavailable

40

SCREW, BINDING

98907-05012-00

Unavailable

41

WASHER, wave

90206-05073-00

Unavailable

42

WASHER, PLAIN LARGE

92907-05200-00

Unavailable
