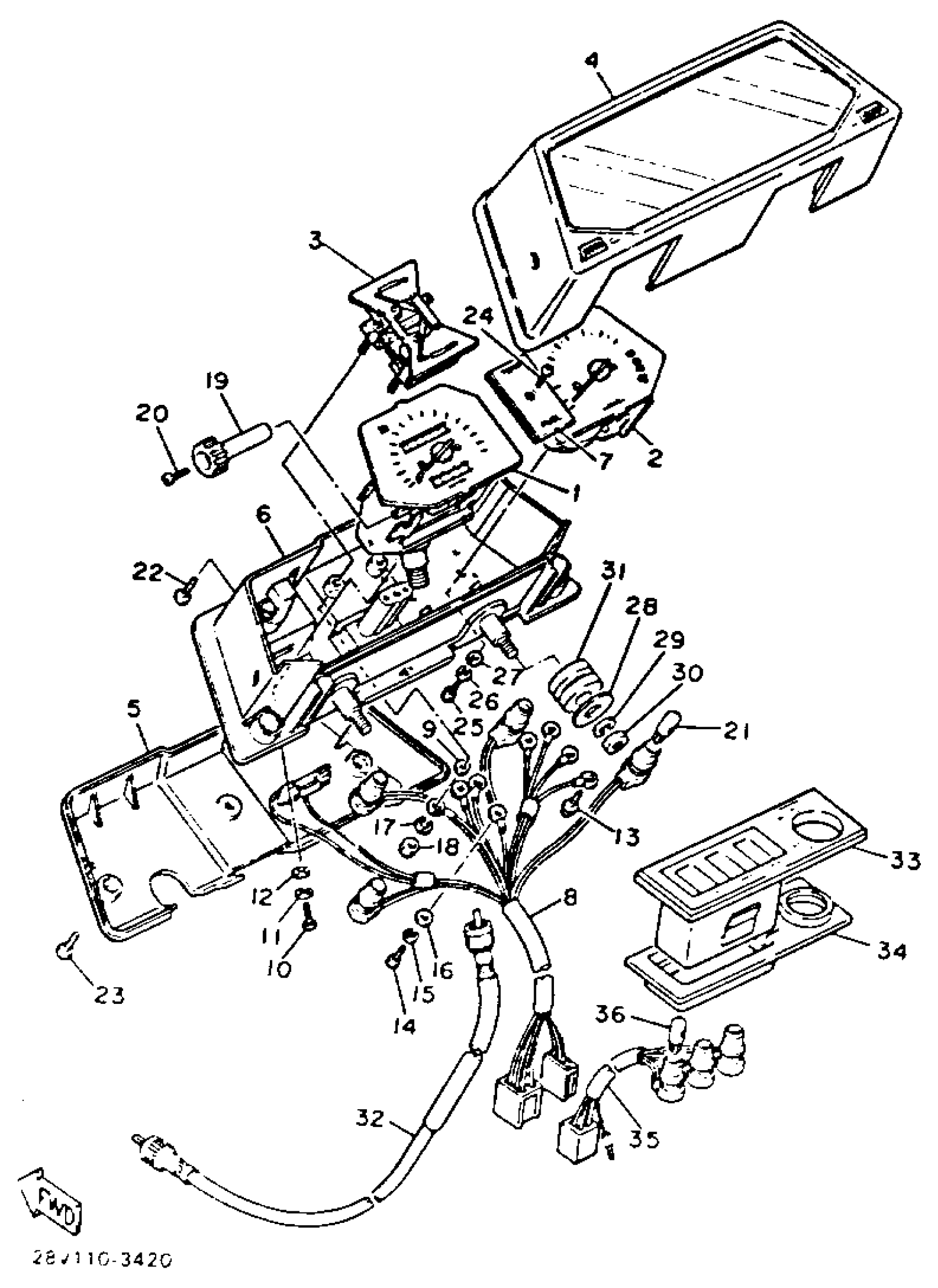

Yamaha XZ550RK (XZ550RK) 1983 METER Diagram
#
Description
Price
1
SPEEDOMETER ASS''Y
28V-83570-A0-00
Unavailable
2
TACHOMETER ASS''Y (28V-83540-00)
25R-83540-00-00
Unavailable
3
WATER/TEMP. METER ASS''Y
28V-83590-00-00
Unavailable
4
COVER, meter
11H-83559-00-00
Unavailable
5
COVER, meter 2
11H-83579-00-00
Unavailable
6
CASE, inner
28V-8353H-00-00
Unavailable
7
PANEL, meter 2
[28-V8361-30-00
Unavailable
8
SOCKET CORD ASS''Y
[28-V8350-90-00
Unavailable
13
SCREW, WITH WASHER
90159-03044-00
Unavailable
16
WASHER(3SX)
92907-03600-00
Unavailable
18
NUT(6TA)
95307-04600-00
Unavailable
19
KNOB, TRIP METER
11H-83578-00-00
Unavailable
20
SCREW, PAN HEAD (11H)
90157-02031-00
Unavailable
21
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
22
SCREW, TAPPING
90164-04005-00
Unavailable
23
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
24
SCREW, binding
90154-02012-00
Unavailable
25
SCREW, PAN HEAD
98517-04016-00
Unavailable
28
WASHER, PLATE
90201-06086-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
30
NUT, HEXAGON
95380-06600-00
Unavailable
31
DAMPER (11H-83541-00)
16G-84736-00-00
Unavailable
32
SPEEDOMETER CABLE ASSY
16M-83550-01-00
Unavailable
33
CASE, pilot box
11H-8356A-00-00
Unavailable
34
DAMPER 2
11H-83526-00-00
Unavailable
35
SOCKET CORD ASS''Y
[11-H8352-00-00
Unavailable
36
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
