Description

Price

1

HEADLIGHT UNIT ASSEMBLY

(28V-84310-60-00)

Unavailable

2

. LENS, HEADLIGHT

11H-84321-60-00

Unavailable

3

BULB, HEADLIGHT

46B-84314-00-00

Unavailable

4

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

5

COVER, SOCKET

2F9-84397-01-00

$30.99

6

SET SPRING

55X-84124-00-00

$11.99

7

. RIM, headlight

28V-84315-00-00

Unavailable

8

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

9

SPRING, ADJUST

341-84332-60-00

$9.99

10

NUT, ADJUST

198-84334-60-00

$7.99

11

SCREW, PAN

98517-05012-00

$4.73

12

WASHER,SPECIAL

233-84127-60-00

$3.69

13

BODY ASS''Y

11H-84330-00-00

Unavailable

14

BUSHING 1

5G2-84366-00-00

Unavailable

15

. DAMPER, HEADLIGHT 2

5G2-84367-00-00

Unavailable

16

COLLAR 1

5G2-84388-00-00

Unavailable

17

. SCREW, MNTNG RING

5G2-84398-00-00

Unavailable

18

BUSHING

5G2-84368-00-00

Unavailable

19

BOLT, SMALL FLANGE

95027-08030-00

Unavailable

20

NUT(6L2)

95333-08600-00

Unavailable

21

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

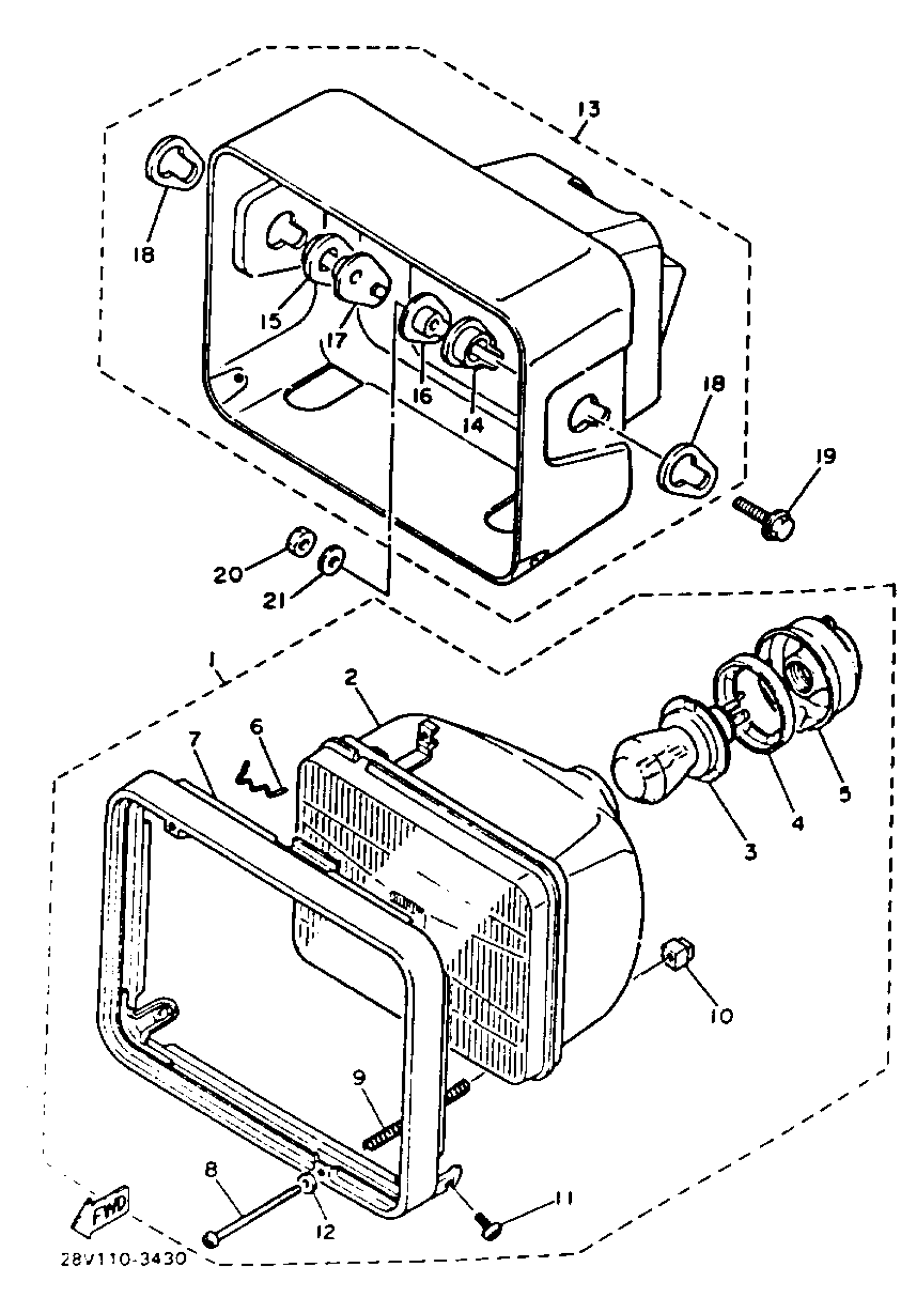

Yamaha XZ550RK (XZ550RK) 1983 HEADLIGHT Diagram

HEADLIGHT UNIT ASSEMBLY

. LENS, HEADLIGHT

BULB, HEADLIGHT

SETTING PLATE, BULB

COVER, SOCKET

SET SPRING

. RIM, headlight

SCREW, PANHEAD (4G7)

SPRING, ADJUST

NUT, ADJUST

SCREW, PAN

WASHER,SPECIAL

BODY ASS''Y

BUSHING 1

. DAMPER, HEADLIGHT 2

COLLAR 1

. SCREW, MNTNG RING

BUSHING

BOLT, SMALL FLANGE

NUT(6L2)

WASHER, PLATE (5J0)
