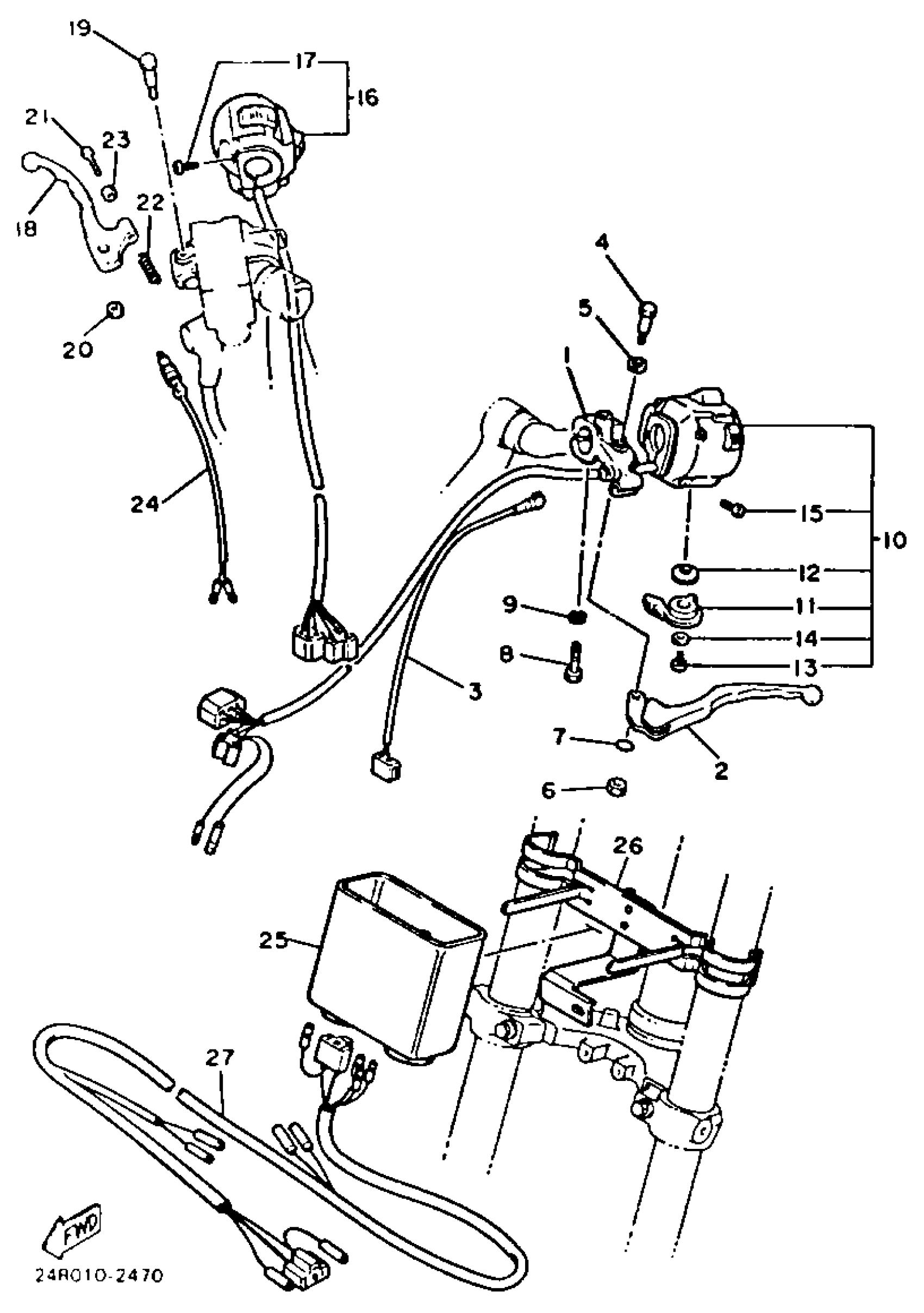

Yamaha XZ550RK (XZ550RK) 1983 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

11H-82911-00-00

Unavailable

2

LEVER 1

10W-83912-00-00

Unavailable

3

SWITCH

3Y6-82917-00-00

Unavailable

4

BOLT(3GB)

90109-061F3-00

$7.49

5

WASHER, PLATE 1562722600

90201-08083-00

$9.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

O-RING (2H7)

93210-11368-00

$5.60

8

BOLT, HEXAGON

97007-06022-00

Unavailable

9

WASHER, SPRING

92907-06100-00

$4.25

10

SWITCH, HANDLE 3

11H-83973-00-00

Unavailable

11

LEVER, STARTER

10M-83941-00-00

Unavailable

12

WASHER (357)

90209-10131-00

$9.49

13

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

SCREW, PAN HEAD

98517-05020-00

$4.25

16

SWITCH, HANDLE 2

26H-83975-00-00

Unavailable

17

SCREW, PAN HEAD

98517-05020-00

$4.25

18

LEVER 2

4L0-83922-00-00

Unavailable

19

BOLT (4L0)

90109-06577-00

Unavailable

20

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

21

SCREW (2L0)

90149-06131-00

Unavailable

22

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

23

NUT, SELF-LOCKING

95617-06100-00

$8.49

24

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

25

COVER, CONNECTER

(11U-82599-00-00)

Unavailable

26

CLAMP, coupler

[11-U8252-20-10

Unavailable

27

GASKET, HEAD COVER

11H-11193-01-00

Unavailable

27

GASKET, CYLINDER

11H-11351-10-00

Unavailable

27

GASKET, TENSIONER CASE

3BT-12213-00-00

Unavailable

27

GASKET, MANIFOLD

11H-13556-11-00

Unavailable

27

EXT, WIRE HARNESS

(11U-82586-00-00)

Unavailable

27

. GASKET, cyl head

28V-11181-00-00

Unavailable

27

TOP END GASKET KIT

28V-W0001-00-XX

Unavailable

27

GASKET, EXHAUST PIPE

4BR-14613-00-00

Unavailable

27

SEAL, VALVE STEM

5H0-12119-00-00

Unavailable

27

GASKET 256113960000

90430-06014-00

Unavailable

27

GASKET (1L9)

90430-14131-00

Unavailable

27

O-RING (716)

93210-18417-00

Unavailable

27

O-RING, JOINT

93210-25527-00

Unavailable

27

O-RING (11H)

93210-86509-00

Unavailable
