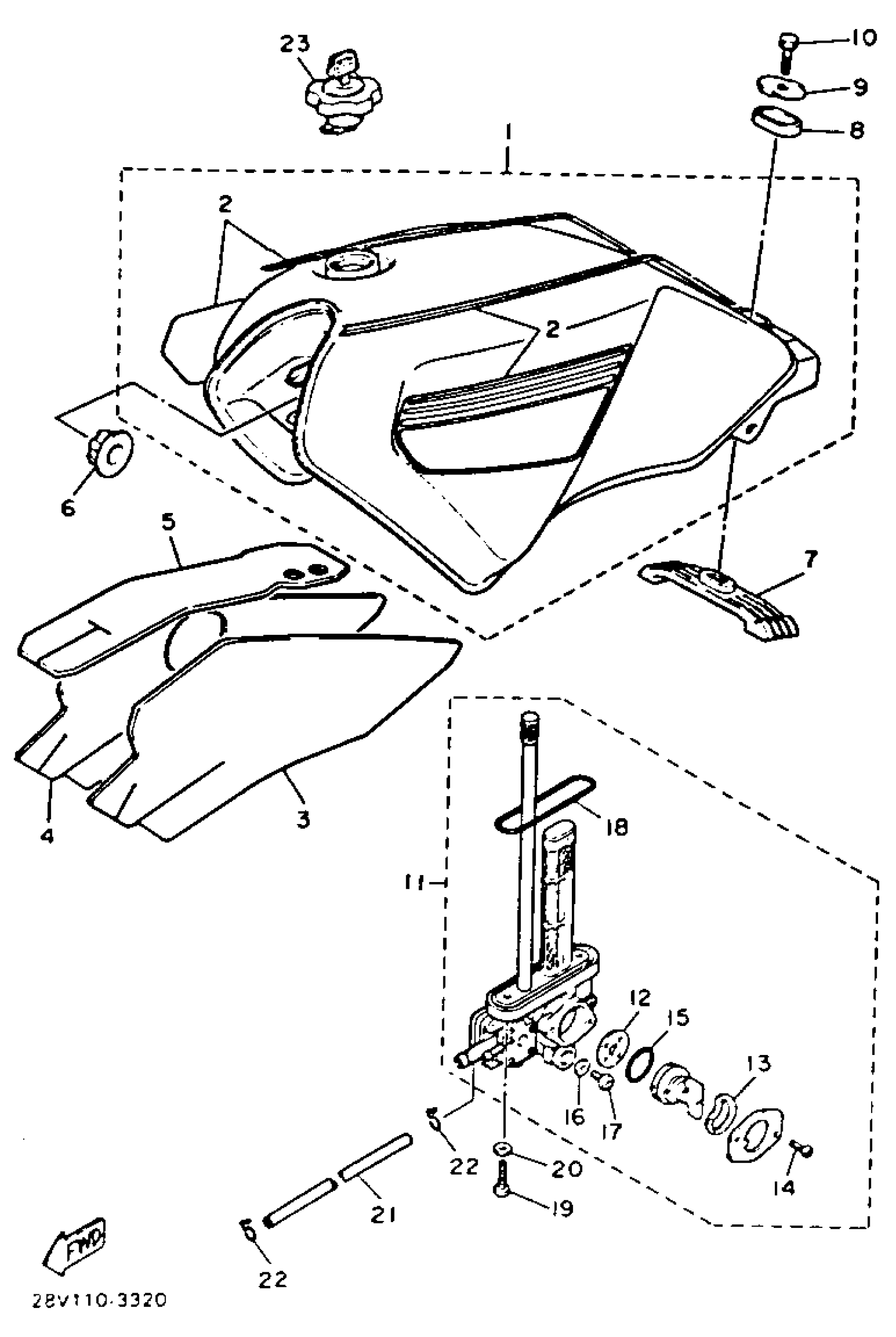

Yamaha XZ550RK (XZ550RK) 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP

28V-24110-00-02

Unavailable

2

. GRAPHIC SET

28V-24240-00-00

Unavailable

3

DAMPER, plate 1

[28-V2414-H0-00

Unavailable

4

DAMPER, plate 2

[28-V2414-J0-00

Unavailable

5

DAMPER, plate 3

[28-V2414-K0-00

Unavailable

6

DAMPER, LOCATING

4H7-24181-00-00

$6.99

7

DAMPER, locating 2

[11-H2418-20-00

Unavailable

8

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

9

WASHER, SPECIAL

11H-24186-00-00

Unavailable

10

BOLT(62E)

97013-08012-00

Unavailable

11

FUEL COCK ASSY

22U-24500-01-00

$293.99

12

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

13

WASHER, WAVE

10L-24518-00-00

$6.99

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

O-RING, FUEL COCK

3H3-24534-00-00

$14.49

16

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

17

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

18

. GASKET

22U-24512-00-00

Unavailable

19

SCREW 256241430000

90149-06011-00

Unavailable

20

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

21

HOSE

11H-2416A-00-00

Unavailable

22

CLIP 101235600

90467-08003-00

Unavailable

23

CAP ASSY

11H-24602-10-00

Unavailable
