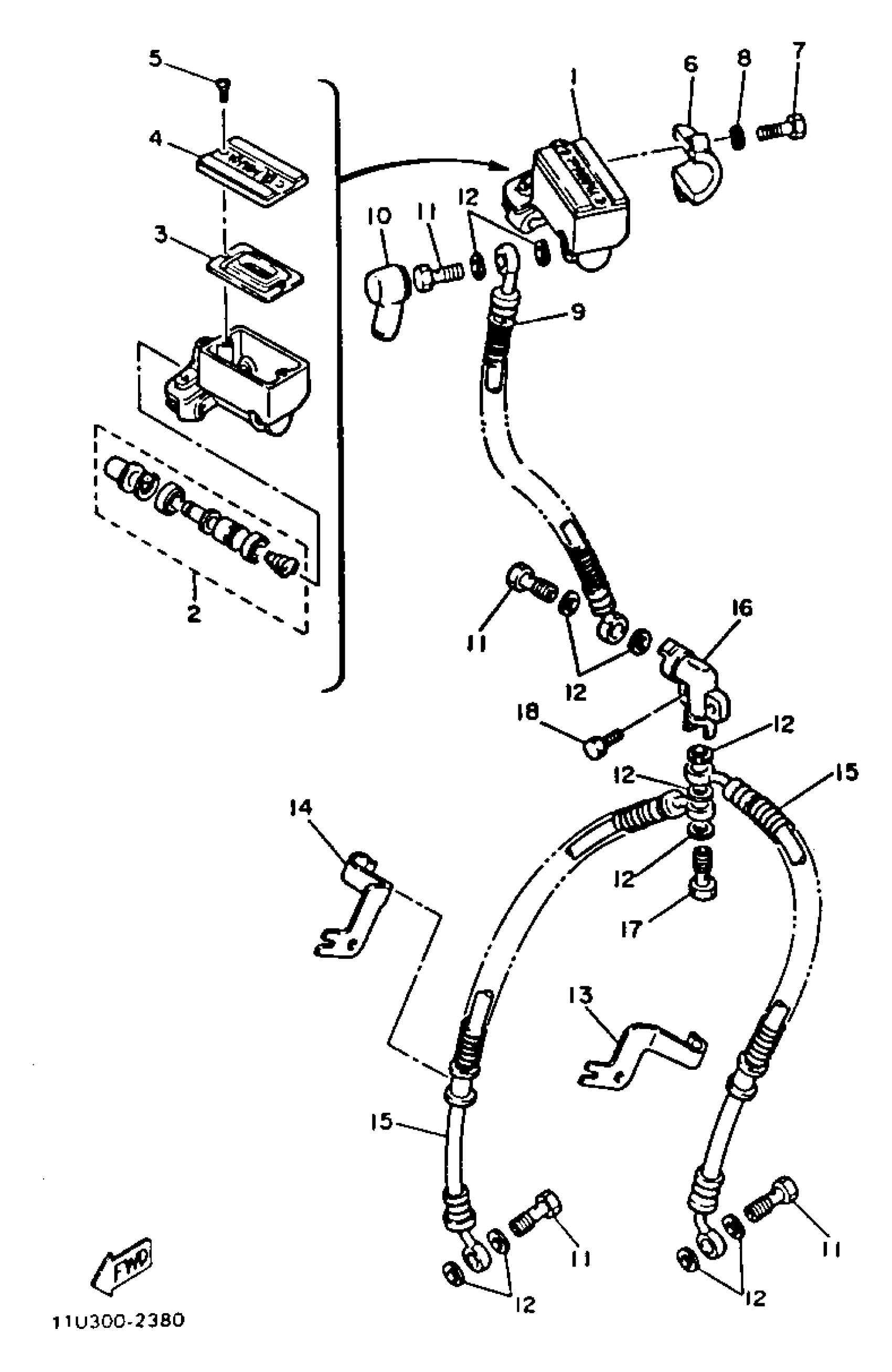

Yamaha XZ550RK (XZ550RK) 1983 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

4G0-25850-01-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

4

CAP, RESERVOIR

3GM-25852-02-00

$57.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92907-06100-00

$4.25

9

HOSE, brake 1

[11-U2587-20-00

Unavailable

10

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

11

BOLT, UNION(3GM)

90401-10159-00

$11.49

12

WASHER, PLATE(481)

90201-10118-00

Unavailable

13

HOLDER, brake hose 1

11H-25875-10-00

Unavailable

14

HOLDER, brake hose 1

11U-25875-00-00

Unavailable

15

HOSE, brake 2

[11-U2587-30-00

Unavailable

16

JOINT

11U-25885-00-00

Unavailable

17

BOLT, UNION

90401-10038-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable
