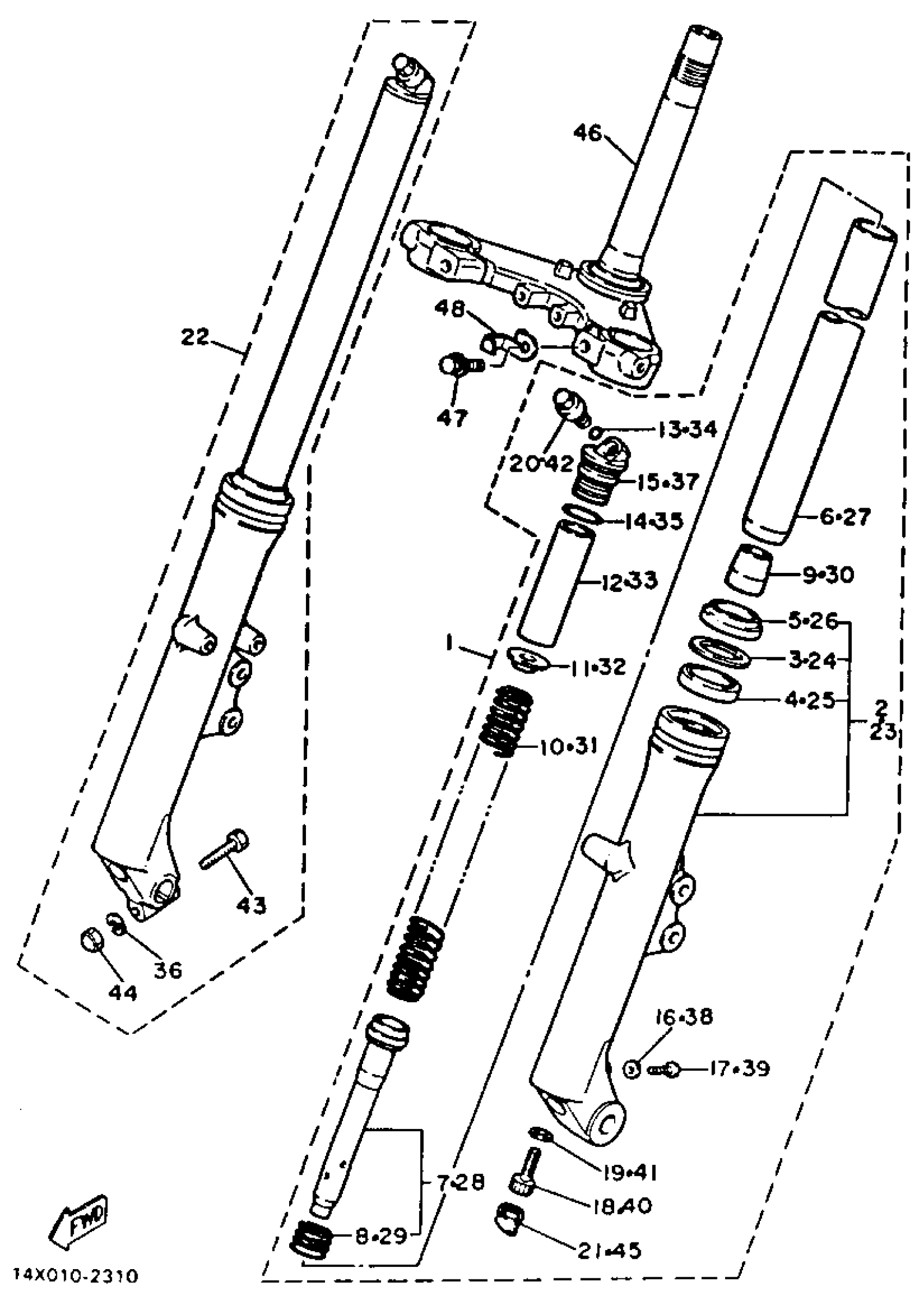

Yamaha XZ550RK (XZ550RK) 1983 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASS''Y (L.H)

[28-V2310-20-00

Unavailable

2

. TUBE, outer 1

28V-23126-00-6G

Unavailable

3

RING, SNAP

4A1-23156-00-00

$5.49

4

OIL SEAL

4G0-23145-00-00

Unavailable

5

SEAL, DUST

4G0-23144-01-00

Unavailable

6

. INNER TUBE COMP 1

14X-23110-00-00

Unavailable

7

. CYLINDER COMP, front fork

[11-H2317-00-00

Unavailable

8

.. SPRING, REBOUND

509-23151-L0-00

Unavailable

9

TAPER SPINDLE

1W1-23173-L0-00

$31.99

10

. SPRING, front fork

24R-23141-00-00

Unavailable

11

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

12

. SPACER

15A-23118-00-00

Unavailable

13

. O-RING

509-23163-L0-00

Unavailable

14

GASKET

240-23114-00-00

$13.49

15

. BOLT, cap

[14-X2311-10-00

Unavailable

16

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

17

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

19

GASKET

509-23158-L0-00

Unavailable

20

. AIR VALVE COMP

[14-X2319-00-00

Unavailable

21

. PLUG

[28-V2312-G0-00

Unavailable

22

FRONT FORK ASS''Y (R.H)

[28-V2310-30-00

Unavailable

23

. TUBE, outer 2

28V-23136-00-6G

Unavailable

24

RING, SNAP

4A1-23156-00-00

$5.49

25

OIL SEAL

4G0-23145-00-00

Unavailable

26

SEAL, DUST

4G0-23144-01-00

Unavailable

27

. INNER TUBE COMP 1

14X-23110-00-00

Unavailable

28

. CYLINDER COMP, front fork

[11-H2317-00-00

Unavailable

29

.. SPRING, REBOUND

509-23151-L0-00

Unavailable

30

TAPER SPINDLE

1W1-23173-L0-00

$31.99

31

. SPRING, front fork

24R-23141-00-00

Unavailable

32

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

33

. SPACER

15A-23118-00-00

Unavailable

34

. O-RING

509-23163-L0-00

Unavailable

35

GASKET

240-23114-00-00

$13.49

36

WASHER(JN5)

92907-08100-00

Unavailable

37

. BOLT, cap

[14-X2311-10-00

Unavailable

38

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

39

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

40

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

41

GASKET

509-23158-L0-00

Unavailable

42

. AIR VALVE COMP

[14-X2319-00-00

Unavailable

43

BOLT(3HN)

97017-08045-00

Unavailable

44

NUT

(28V-23357-00-00)

Unavailable

45

PLUG

(28V-2312G-00-00)

Unavailable

46

UNDER BRACKET COMP. (11H-23340-00-33)

11U-23340-30-33

Unavailable

47

. BOLT 1

4G0-23346-00-00

Unavailable

48

CLAMP

[11-H2312-H0-00

Unavailable
