Description

Price

1

DISC, brake

[28-V2583-10-00

Unavailable

2

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

3

WASHER, LOCK

11H-25834-00-00

Unavailable

4

DISC, brake

[28-V2583-11-00

Unavailable

5

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

29L-2580T-00-00

Unavailable

6

BRAKE PAD KIT

43F-W0045-01-00

Unavailable

7

. SHIM, CALIPER

11U-25827-10-00

Unavailable

8

PAD SPRING, CALIPER

11H-25919-00-00

Unavailable

9

PISTON ASSY, CALIPER

4X8-W0057-00-00

$139.99

10

BLEED SCREW KIT

15B-W0048-00-00

$19.99

11

BOOT

4X8-25917-00-00

Unavailable

12

BOOT 2

5R2-25937-00-00

$37.99

13

PIN PAD

34L-25924-00-00

Unavailable

14

CALIPER ASS'Y (RIGHT)

11U-25810-00-00

Unavailable

15

BRAKE PAD KIT

43F-W0045-01-00

Unavailable

16

. SHIM, CALIPER

11U-25827-00-00

Unavailable

17

PAD SPRING, CALIPER

11H-25919-00-00

Unavailable

18

PISTON ASSY, CALIPER

4X8-W0057-00-00

$139.99

19

BLEED SCREW KIT

15B-W0048-00-00

$19.99

20

BOOT

4X8-25917-00-00

Unavailable

21

BOOT 2

5R2-25937-00-00

$37.99

22

PIN PAD

34L-25924-00-00

Unavailable

23

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

24

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

25

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

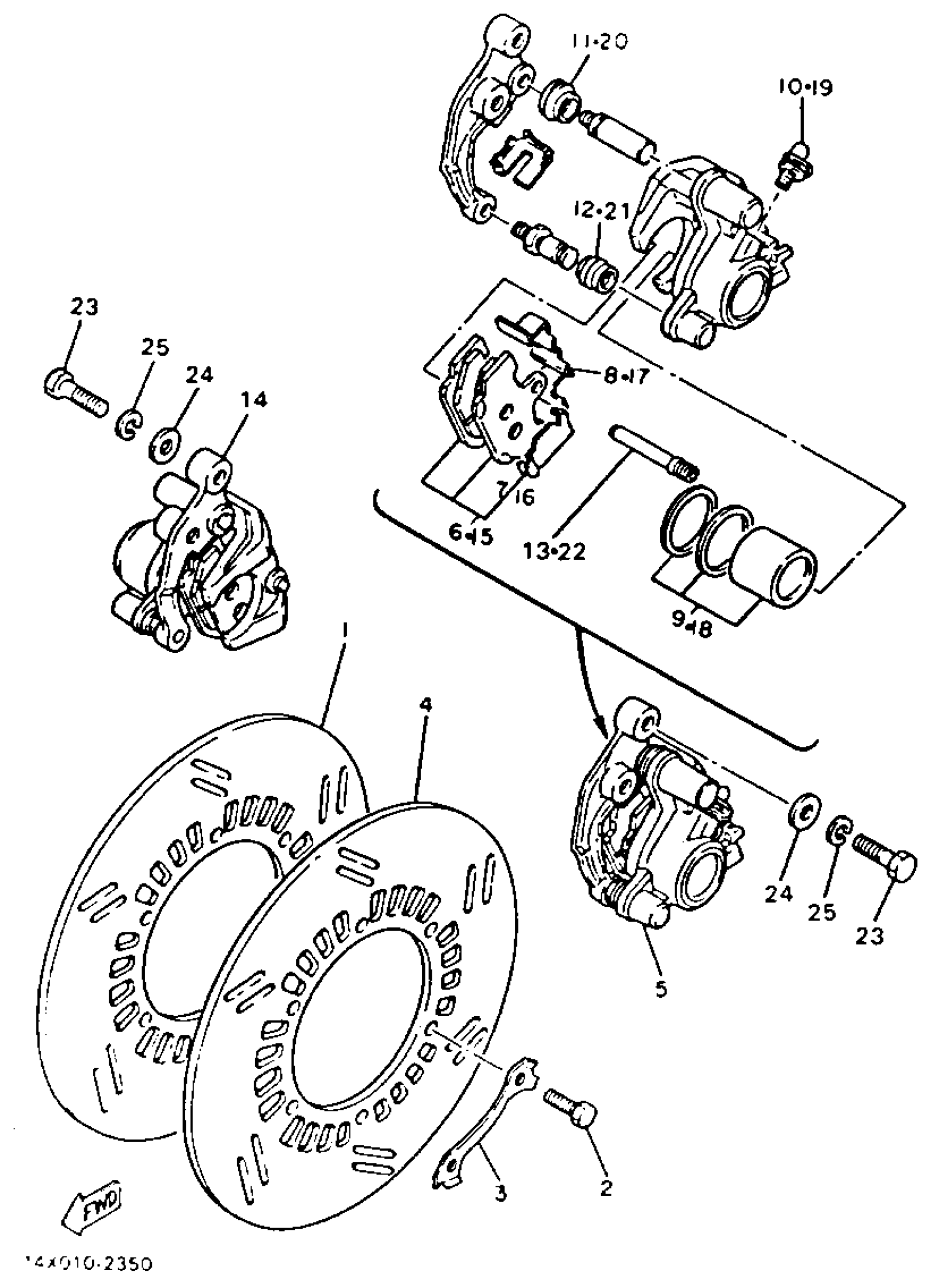

Yamaha XZ550RK (XZ550RK) 1983 FRONT BRAKE CALIPER Diagram

DISC, brake

BOLT, HEXAGON (1L9)

WASHER, LOCK

DISC, brake

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

BRAKE PAD KIT

. SHIM, CALIPER

PAD SPRING, CALIPER

PISTON ASSY, CALIPER

BLEED SCREW KIT

BOOT

BOOT 2

PIN PAD

CALIPER ASS'Y (RIGHT)

BRAKE PAD KIT

. SHIM, CALIPER

PAD SPRING, CALIPER

PISTON ASSY, CALIPER

BLEED SCREW KIT

BOOT

BOOT 2

PIN PAD

BOLT, WASHER BASED(3VD)

958-69527-00 WASHER, PLAIN

YBS67-10 WASHER, SPRING
