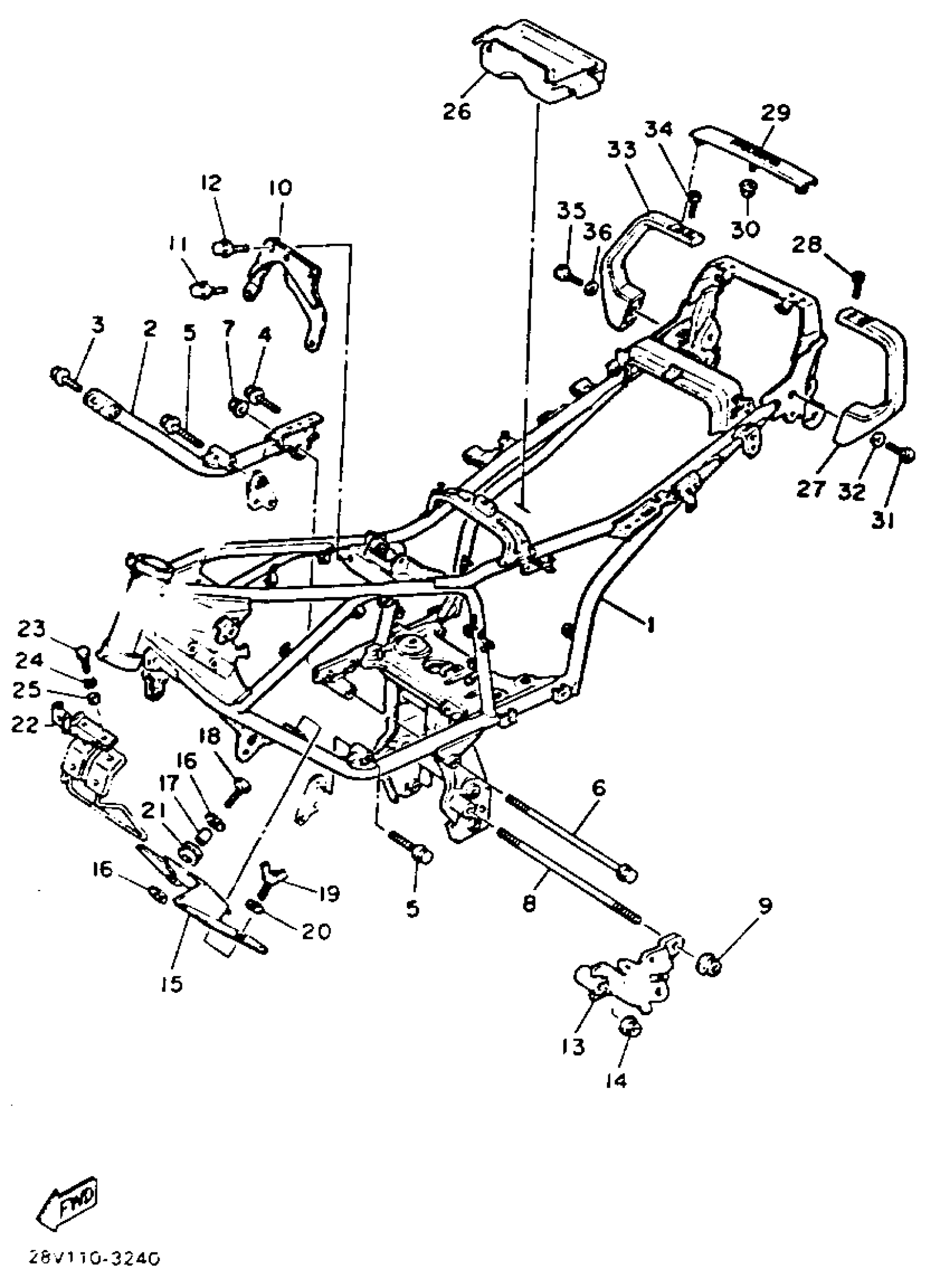

Yamaha XZ550RK (XZ550RK) 1983 FRAME Diagram

#

Description
Price

1

FRAME COMP.

11H-21110-00-98

Unavailable

2

DOWN TUBE COMP

11H-21140-00-98

Unavailable

3

BOLT, washer, based

[90-10508-21-20

Unavailable

4

BOLT, WASHER BASED (11H)

90105-08211-00

$3.23

5

BOLT, WASHER BASED

(90105-10239-00)

Unavailable

6

BOLT, WASHER BASED

90105-10476-00

Unavailable

7

NUT

90179-10321-00

Unavailable

8

BOLT, stud

[90-11612-37-40

Unavailable

9

NUT(3EF)

90179-12657-00

$5.60

10

STAY, engine 2

[28-V2131-50-00

Unavailable

11

BOLT, FLANGE(4HM)

95814-08020-00

$8.49

12

BOLT, FLANGE(4HM)

95814-08020-00

$8.49

13

BRACKET, side stand

[11-H2145-80-00

Unavailable

14

NUT(4KG)

90179-10658-00

$9.49

15

COVER

11H-2117F-00-00

Unavailable

16

WASHER, plate

[90-20108-3F-70

Unavailable

17

COLLAR(3HM)

90387-085N0-00

Unavailable

18

BOLT, HEXAGON

97017-08025-00

Unavailable

19

BOLT, wing

90122-06016-00

Unavailable

20

WASHER(6TA)

92907-06200-00

Unavailable

21

GROMMET (16R)

90480-14329-00

Unavailable

22

STAY, horn

[11-U2134-Y0-00

Unavailable

23

BOLT, HEXAGON

97017-06016-00

Unavailable

24

WASHER, SPRING

92907-06100-00

Unavailable

25

WASHER(6TA)

92907-06600-00

Unavailable

26

BOX

[11-H2177-A0-00

Unavailable

27

STAY, rear

11H-21644-00-00

Unavailable

28

BOLT,SOCKET

91317-06020-00

Unavailable

29

EMBLEM 7

11H-21787-01-00

Unavailable

30

GROMMET

[90-48001-33-30

Unavailable

31

BOLT, SOCKET

91317-08020-00

Unavailable

32

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

33

STAY, rear

11H-21645-00-00

Unavailable

34

BOLT,SOCKET

91317-06020-00

Unavailable

35

BOLT, SOCKET

91317-08020-00

Unavailable

36

WASHER, PLATE (33N)

90201-084G3-00

Unavailable
