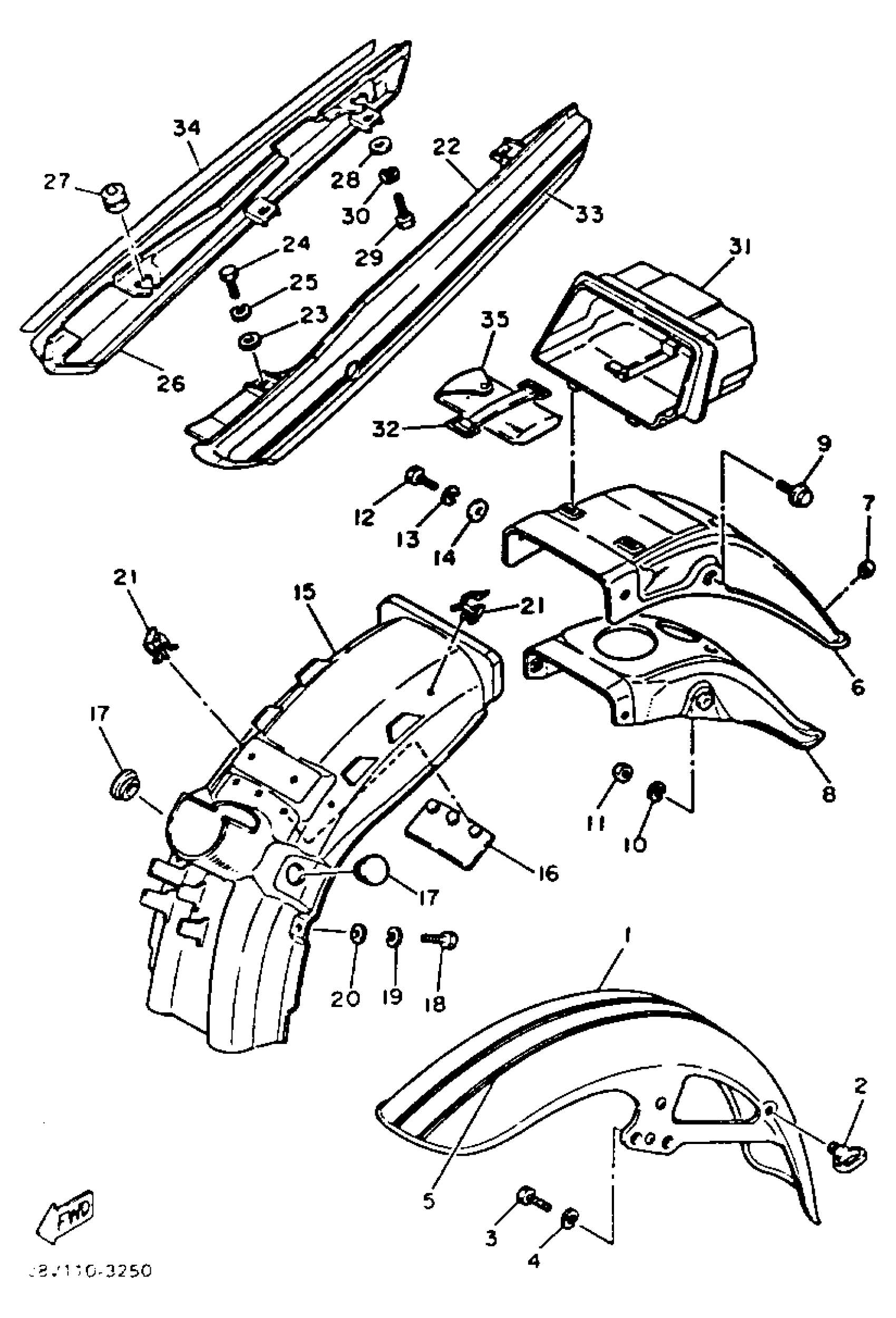

Yamaha XZ550RK (XZ550RK) 1983 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP. (NEW WHITE)
11H-21510-00-6G
Unavailable
5
GRAPHIC, front fender 1
28V-21571-00-00
Unavailable
6
FENDER, rear
11H-21611-00-00
Unavailable
7
DAMPER 2
5A8-21639-00-00
Unavailable
8
REINF. COMP.
11H-21670-00-00
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
15
GUARD, MUD
(11H-21629-00-00)
Unavailable
16
FLAP
1M1-21621-00-00
Unavailable
17
GROMMET (2A6)
90480-30167-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
WASHER, PLATE
90201-06380-00
Unavailable
21
CLAMP (1J7)
90464-16021-00
Unavailable
22
COVER, rear fender 2 (NEW WHITE)
11H-2163A-00-6G
Unavailable
23
WASHER, PLATE
90201-06052-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
COVER, rear fender 3 (NEW WHITE)
11H-2163E-00-6G
Unavailable
27
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
28
WASHER, PLATE
90201-06M08-00
Unavailable
30
WASHER, SPRING
92995-06100-00
Unavailable
31
BOX
11H-2160E-00-00
Unavailable
32
BAND, BATTERY
26L-82131-00-00
Unavailable
33
GRAPHIC, rear fender cover (L.H)
28V-21661-00-00
Unavailable
34
GRPHC, R/FNDR CVR R
(28V-21662-00-00)
Unavailable
35
TOOL KIT
1AA-W2810-00-00
Unavailable
