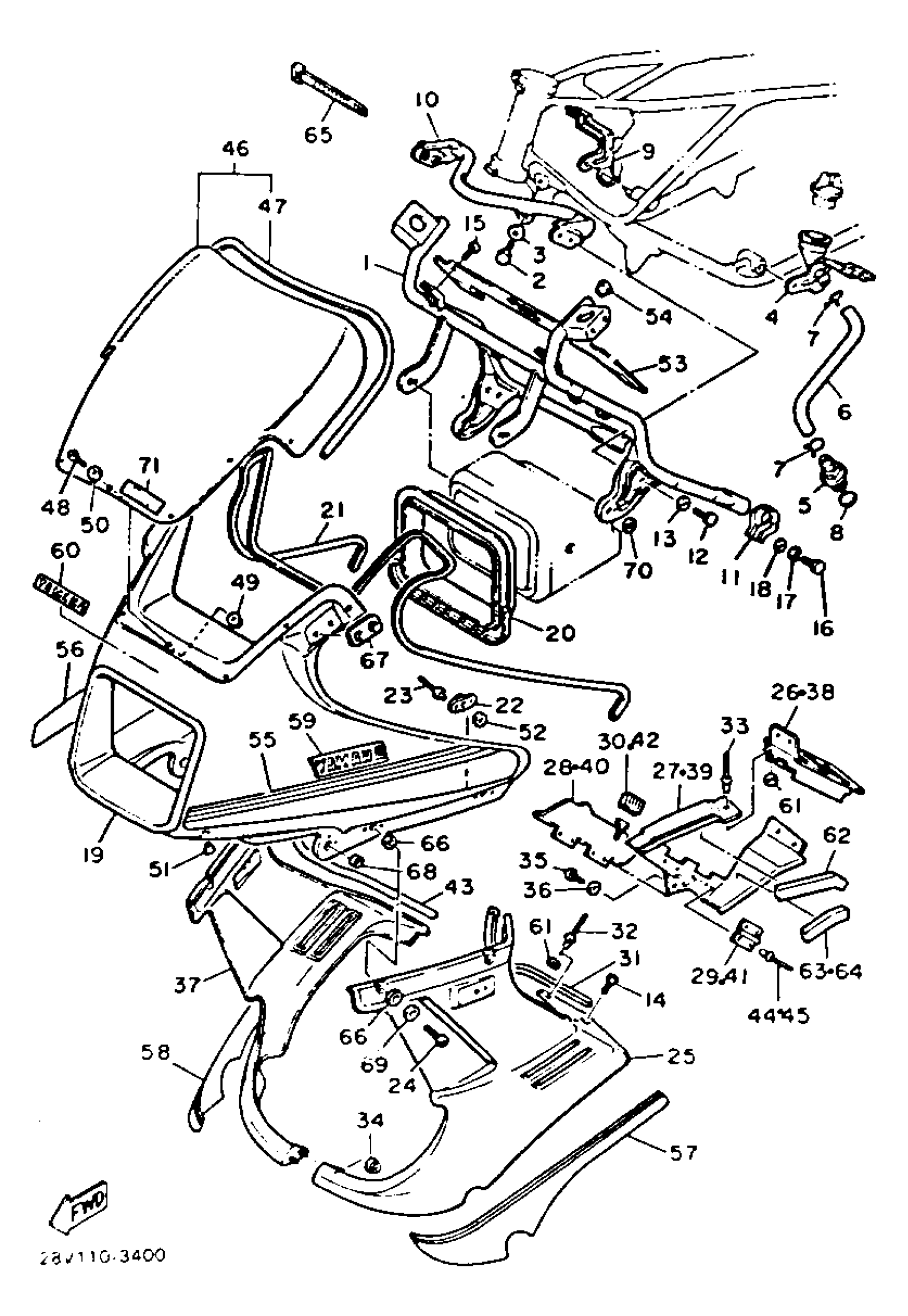

Yamaha XZ550RK (XZ550RK) 1983 FAIRING Diagram
#
1
STAY 1
11U-28356-00-00
Unavailable
4
STAY 2
11U-28359-00-00
Unavailable
5
JOINT 2
11U-2834L-00-00
Unavailable
6
PIPE, oil
11U-21766-00-00
Unavailable
7
CLIP
90467-20M15-00
Unavailable
9
STAY 3
11U-28358-00-00
Unavailable
10
STAY, cowling
11U-28369-00-00
Unavailable
11
CLAMP, cowling stay 1
11U-2837A-00-00
Unavailable
12
BOLT, HEXAGON
97027-08018-00
Unavailable
16
BOLT, HEXAGON
97017-06025-00
Unavailable
17
WASHER, SPRING
92907-06100-00
Unavailable
18
WASHER(6TA)
92907-06600-00
Unavailable
19
BODY, front upper 1
11U-2835G-00-33
Unavailable
20
MOLE, headlight
11U-2838A-00-00
Unavailable
21
MOLE 1
11U-28345-00-00
Unavailable
22
NUT
[11-U2836-30-00
Unavailable
23
RIVET, BLIND (24R)
90267-32103-00
Unavailable
24
SCREW, BIND (J17)
98980-06020-00
Unavailable
25
BODY, front lower 1
11U-2835J-00-33
Unavailable
26
PANEL, 1
11U-2835U-00-00
Unavailable
27
PLATE 1
11U-28396-00-00
Unavailable
28
PLATE
11U-28336-00-00
Unavailable
29
HINGE
[11-U2837-F0-10
Unavailable
30
CAP
11U-28349-00-00
Unavailable
31
MOLE 2
11U-28346-00-00
Unavailable
32
RIVET, BLIND (24R)
90267-32103-00
Unavailable
33
RIVET, BLIND (24R)
90267-32103-00
Unavailable
34
NUT (1AE)
90179-06500-00
Unavailable
35
SCREW, PAN TAP.2
97707-60514-00
Unavailable
36
WASHER(6TA)
92907-06200-00
Unavailable
37
BODY, front lower 2
11U-2835K-00-33
Unavailable
38
PANEL, 2
11U-2835V-00-00
Unavailable
39
PLATE 2
11U-28397-00-00
Unavailable
40
HOLDER
11U-28337-00-00
Unavailable
41
HINGE
[11-U2837-F0-10
Unavailable
42
CAP
11U-28349-00-00
Unavailable
43
MOLE 2
11U-28346-00-00
Unavailable
44
RIVET, BLIND (24R)
90267-32103-00
Unavailable
45
RIVET, BLIND (24R)
90267-32103-00
Unavailable
46
WINDSCREEN ASS''Y
28V-28380-00-00
Unavailable
47
. TRIM
11U-28376-01-00
Unavailable
48
SCREW, pan head
90157-04040-00
Unavailable
49
NUT, FLANGE
95707-04500-00
Unavailable
50
WASHER, plate
90202-04141-00
Unavailable
51
GROMMET (397)
90480-10068-00
Unavailable
52
WASHER, plate
90201-076G3-00
Unavailable
53
HOOD 1
11U-2835E-00-00
Unavailable
54
PLUG (5R2)
90338-18122-00
Unavailable
55
GRAPHIC 1
28V-28391-00-00
Unavailable
56
GRAPHIC 2
28V-28392-00-00
Unavailable
57
GRAPHIC 3
28V-28393-00-00
Unavailable
58
GRAPHIC 4
28V-28394-00-00
Unavailable
59
EMBLEM 1
3X0-24161-01-00
Unavailable
60
EMBLEM, YAMAHA
99245-00080-00
Unavailable
61
WASHER, PLAIN LARGE
92907-03200-00
Unavailable
62
DAMPER
24R-28372-00-00
Unavailable
63
DAMPER (L.H)
24R-2834E-00-00
Unavailable
64
DAMPER (R.H)
24R-2834F-00-00
Unavailable
65
BAND, SWITCH CORD
437-83936-11-00
Unavailable
66
WASHER, plate
90201-055G9-00
Unavailable
67
DAMPER 5
24R-2837J-00-00
Unavailable
68
COLLAR
90387-120J3-00
Unavailable
69
WASHER, PLATE
90201-06020-00
Unavailable
70
WASHER, plate
[90-20117-6G-10
Unavailable
71
LABEL, caution
13X-2835Y-00-00
Unavailable
