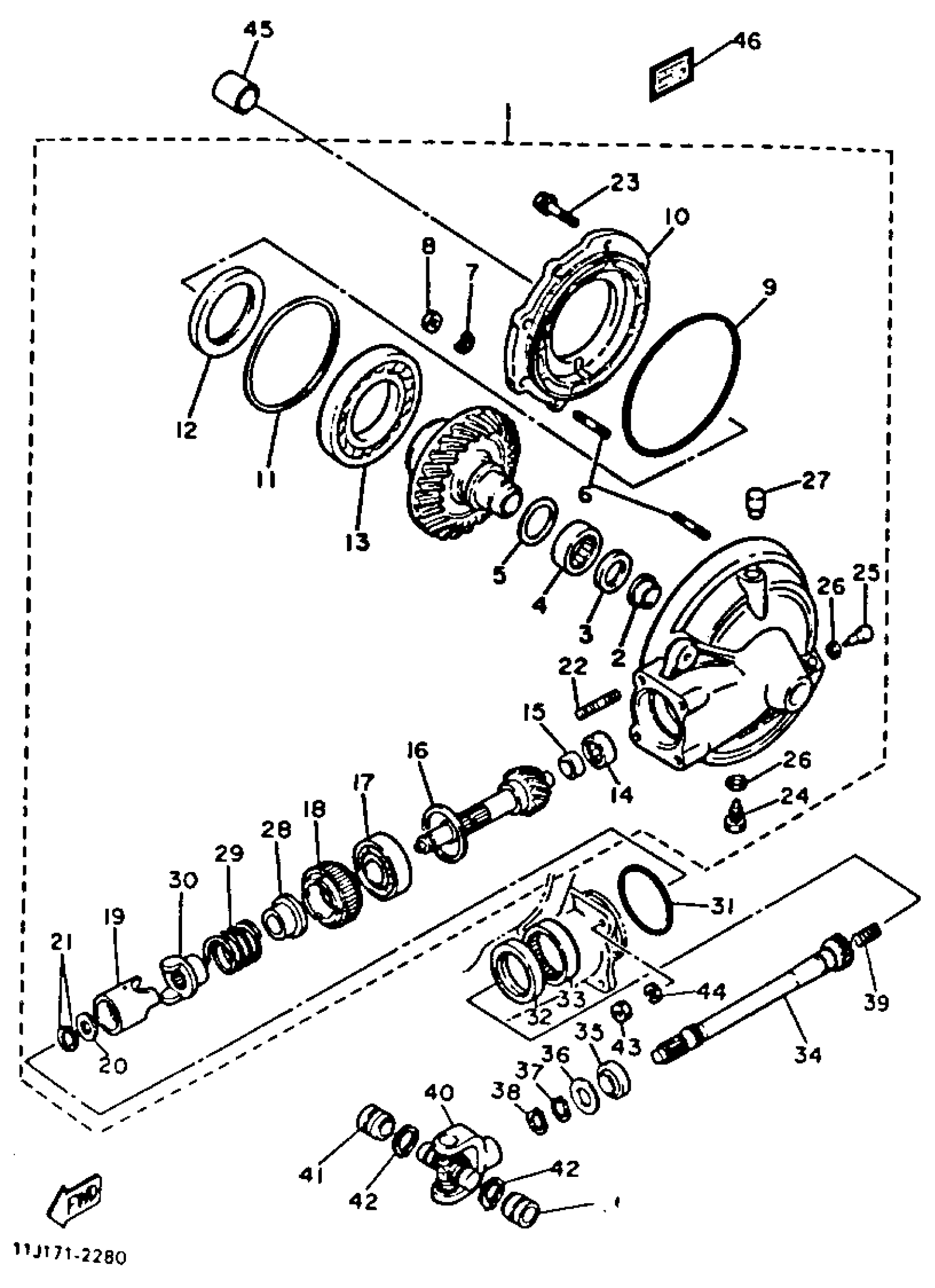

Yamaha XZ550RK (XZ550RK) 1983 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASS''Y

[28-V4610-10-00

Unavailable

2

COLLAR, GUIDE

4H7-46153-00-00

$27.99

3

OIL SEAL (30X42X7-1J7)

93101-30084-00

$18.99

4

BRG,CYL-CAL ROLLER 80G KY

93311-43729-00

Unavailable

5

. WASHER, THRUST

1J7-46118-Y0-18

Unavailable

5

. WASHER, THRUST

1J7-46118-Y0-19

Unavailable

5

. WASHER, THRUST

1J7-46118-Y0-20

Unavailable

5

. WASHER, THRUST

1J7-46118-Y0-21

Unavailable

5

. WASHER, THRUST

4H7-46118-00-14

Unavailable

5

. WASHER, THRUST

4H7-46118-00-15

Unavailable

5

. WASHER, THRUST

4H7-46118-00-16

Unavailable

5

. WASHER, THRUST

4H7-46118-00-17

Unavailable

5

. WASHER, THRUST

4H7-46118-00-22

Unavailable

5

. WASHER, THRUST

4H7-46118-00-23

Unavailable

6

BOLT, STUD(2GG)

95617-08620-00

$7.49

7

WASHER(6TA)

92907-08700-00

Unavailable

8

NUT(6L2)

95333-08600-00

Unavailable

9

O-RING (1J7)

93211-44348-00

Unavailable

10

HOUSING, BEARING

4H7-46152-00-00

Unavailable

11

SHIM, RING GEAR (0.30T)

1J7-46117-Y0-30

Unavailable

11

. SHIM, RING GEAR (035T)

1J7-46117-Y0-35

Unavailable

11

SHIM, RING GEAR (0.40T)

1J7-46117-Y0-40

Unavailable

11

SHIM, RING GEAR

1J7-46117-Y0-45

Unavailable

11

SHIM, RING GEAR (0.50T)

1J7-46117-Y0-50

Unavailable

12

OIL SEAL (4H7)

93102-70167-00

Unavailable

13

BRG,R-B 16014C2 110MM 433G KY

93316-01403-00

Unavailable

14

BEARING ASSY

2H7-46102-00-00

Unavailable

15

RACE, INNER

2H7-46122-00-00

Unavailable

16

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

Unavailable

16

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

Unavailable

16

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

Unavailable

17

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

Unavailable

18

. RETAINER, bearing

[11-H4612-50-00

Unavailable

19

. COUPLING, gear

[11-H4612-30-00

Unavailable

20

. WASHER, PLATE

90201-203F5-00

Unavailable

21

. WASHER, thrust

[11-H1752-90-00

Unavailable

22

BOLT, STUD (5E5)

90116-10361-00

Unavailable

23

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

24

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

25

PLUG, STRAIGHT SCREW

90340-14004-00

Unavailable

26

GASKET

214-11198-01-00

Unavailable

27

. BREATHER COMP

4H3-17590-00-00

Unavailable

28

. HOLDER

[11-H1752-40-00

Unavailable

29

SPRING, COMPRESSION

(90501-65683-00)

Unavailable

30

. CAM, driven

[11-H1752-70-00

Unavailable

31

O-RING (4H7)

93210-60426-00

Unavailable

32

OIL SEAL

93101-47108-00

Unavailable

33

BEARING, cylindrical

93317-64725-00

Unavailable

34

SHAFT, drive

[11-H4617-20-10

Unavailable

35

OIL SEAL

93108-23008-00

Unavailable

36

WASHER, plate

90201-233F6-00

Unavailable

37

CIRCLIP (4H7)

93410-23056-00

Unavailable

38

CIRCLIP (537)

93410-22039-00

Unavailable

39

SPRING, COMPRESSION (2H7)

90501-16491-00

Unavailable

40

CROSS JOINT COMP.

4X7-46180-00-00

Unavailable

41

BEARING(2HR)

93399-99926-00

Unavailable

42

CIRCLIP (4X7)

93440-20088-00

Unavailable

43

NUT

90179-10013-00

Unavailable

44

WASHER(6TA)

92907-10100-00

Unavailable

45

COLLAR (4H7)

90387-172A5-00

Unavailable

46

LABEL, OIL CAUTION

4H7-46181-10-00

Unavailable
