- XZ550RK (XZ550RK) 1983
CRANKSHAFT PISTON

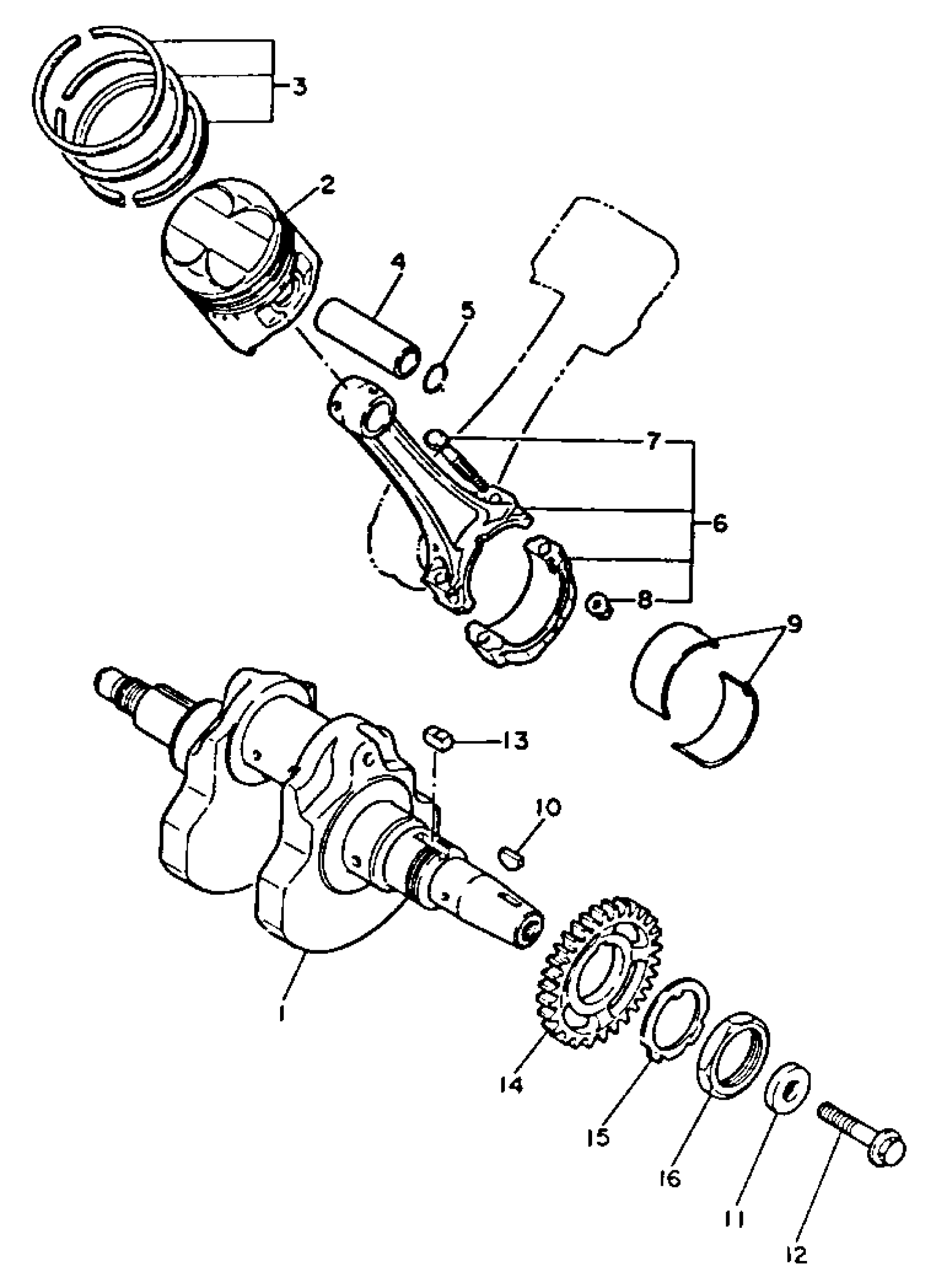

Yamaha XZ550RK (XZ550RK) 1983 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT
28V-11411-00-00
Unavailable
2
PISTON (STD)
[11-H1163-10-0A
Unavailable
2
PISTON (2nd O/S 0.50MM)
11H-11636-00-00
Unavailable
2
PISTON (4th O/S 1.00MM)
11H-11638-00-00
Unavailable
3
PISTON RING SET (STD)
28V-11610-00-00
Unavailable
3
PISTON RING SET (2nd O/S)
28V-11610-20-00
Unavailable
3
PISTON RING SET (4th O/S)
28V-11610-40-00
Unavailable
4
PIN, PISTON
583-11633-00-00
Unavailable
6
CONNECTING ROD ASS''Y
28V-Y1165-00-00
Unavailable
7
. BOLT, connecting rod
28V-11654-00-00
Unavailable
8
PLANE BEARING, connecting rod
11H-11656-00-00
Unavailable
8
PLANE BEARING, connecting rod
11H-11656-10-00
Unavailable
8
PLANE BEARING, connecting rod
11H-11656-20-00
Unavailable
8
PLANE BEARING, connecting rod
11H-11656-30-00
Unavailable
8
PLANE BEARING, connecting rod
11H-11656-40-00
Unavailable
8
NUT (11H)
90179-09379-00
Unavailable
10
KEY, woodruff
90280-07034-00
Unavailable
11
WASHER, PLATE
(90201-107E9-00)
Unavailable
12
BOLT, WASHER BASED (4H7)
90105-10152-00
Unavailable
13
KEY, straight
90282-07051-00
Unavailable
14
GEAR, RING (45T)
(11H-11535-00-00)
Unavailable
15
WASHER, lock
90215-40193-00
Unavailable
16
NUT
90170-40293-00
Unavailable
