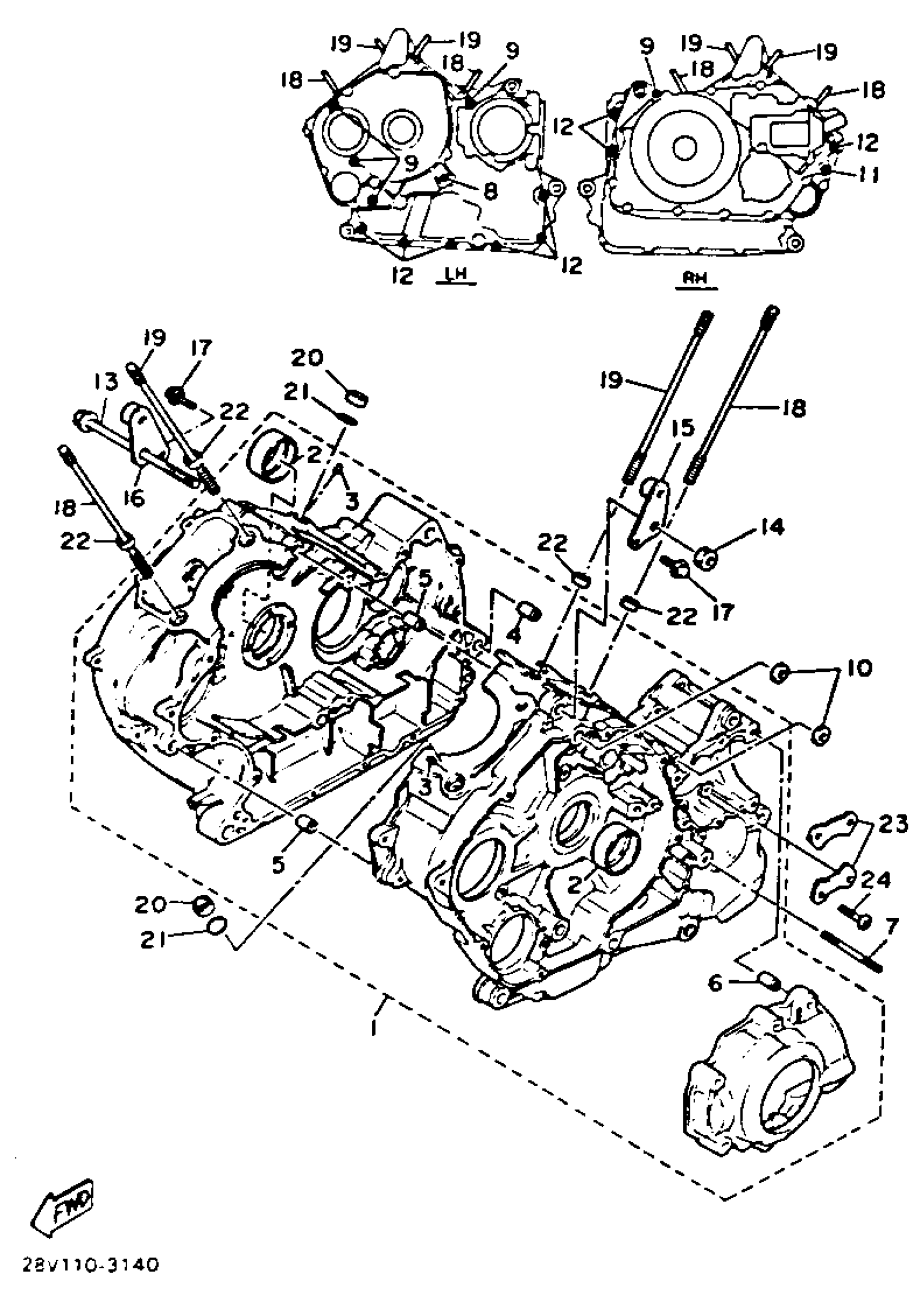

Yamaha XZ550RK (XZ550RK) 1983 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASS''Y

[11-H1510-00-20

Unavailable

2

PLANE BEARING, CRANKSHAFT 1

22U-11416-80-00

$45.99

2

PLANE BEARING, CRANKSHAFT 1

22U-11416-90-00

Unavailable

3

NOZZLE 1

11H-15138-00-00

Unavailable

4

PIN, DOWEL

99530-14016-00

$3.80

5

PIN, DOWEL(MH0)

91815-16017-00

$8.49

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

BOLT, stud

[95-61110-65-00

Unavailable

8

BOLT, SOCKET

91314-06080-00

$3.88

9

BOLT,SOCKET HEAD

91311-06100-00

Unavailable

10

GASKET 256113960000

90430-06014-00

Unavailable

11

BOLT, SOCKET

91314-06045-00

$8.49

12

BOLT, SOCKET

91314-06030-00

$8.49

13

BOLT

90105-10042-00

$14.99

14

NUT(4KG)

90179-10658-00

$9.49

15

PLATE

[11-H1511-30-00

Unavailable

16

PLATE, buffle 1

[11-H1512-30-00

Unavailable

17

BOLT, FLANGE

95817-06020-00

Unavailable

18

BOLT, stud

[90-11610-38-00

Unavailable

19

BOLT, stud

[90-11610-38-90

Unavailable

20

COLLAR (1L9)

90387-16547-00

Unavailable

21

O-RING (1L9)

93210-18322-00

Unavailable

22

PIN, DOWEL

99530-14016-00

$3.80

23

PLATE, BEARING COVER

11H-15383-02-00

Unavailable

24

SCREW

90149-08013-00

Unavailable
